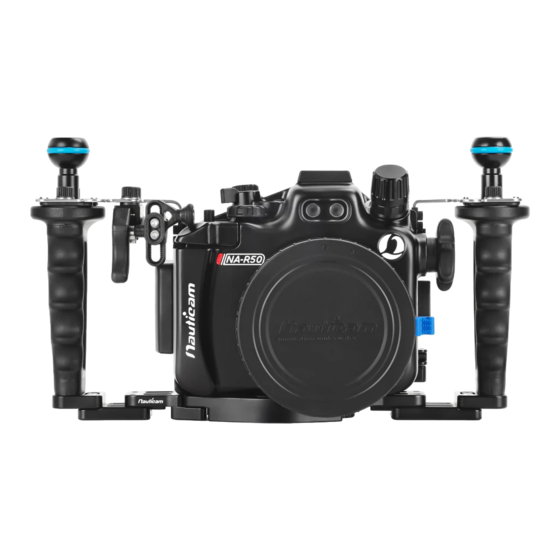

Nauticam NA-R50 User Manual

Nauticam NA-R50 User Manual

Housing aps-c - compact

Advertisement

Quick Links

NA - R50/NA - R50 Pro Package
For Canon EOS R50 Camera with RF-S 18-45mm F4.5-6.3 IS STM Lens
2
2
3
4
7
8
9
10
13
14
15
16
April, 2023
PN 17340/17340P
User Manual
Housing
APS-C - COMPACT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-R50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam NA-R50

  • Page 1: Table Of Contents

    April, 2023 NA - R50/NA - R50 Pro Package For Canon EOS R50 Camera with RF-S 18-45mm F4.5-6.3 IS STM Lens PN 17340/17340P User Manual Housing APS-C - COMPACT Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use...
  • Page 2: Introduction

    PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. 17340 NA-R50 Housing 17340P NA-R50 Housing Pro Package...
  • Page 3: Important Instructions

    O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product.
  • Page 4: Part Names And Functions

    PART NAMES AND FUNCTIONS Rear View REC button Thumb position Housing unlock button AE lock/FE lock/Magnify button AF point/index/reduce button Up/exposure compensation button Right/self-timer/drive mode button Down/erase button Menu button Playback button Left/AF/MF button Info button Quick control/set button...
  • Page 5 PART NAMES AND FUNCTIONS Top + Front Views M16 Accessory port Moisture alarm window Front dial ISO button M10 threaded hole Main switch Mode dial Optical fiber cable connection Bayonet mount II release button...
  • Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Sacrificial zinc anodes Flash On/Off switch Zoom/Focus knob Housing unlock button...
  • Page 7: Housing Mount

    25076 HDMI D-D cable in 200mm length 1/4” -20 mounting threads 17954 Universal tripod plate 17960 Universal Quadra-Pod Plate for Nauticam Housings Hand straps and housing tray 71206 Easitray II with left handle 71207 Flexitray plate II W with left handle...
  • Page 8: Opening The Housing

    OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position...
  • Page 9: Closing The Housing

    CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place...
  • Page 10: Preparation For Use

    PREPARATION FOR USE * drawings as illustrations only Installing the Camera Please follow the below camera manual settings before installing the camera : Screen/viewfinder display --- Screen Lift up the camera flash * lift up the ON/LOCK/OFF lever each time before installing the camera * make sure the ON/LOCK/OFF lever is aligned with camera control before sliding the camera into the housing...
  • Page 11 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
  • Page 12 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
  • Page 13: Optional Accessories

    OPTIONAL ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and tighten the vacuum valve to the housing with the tool provided vacuum valve accessory port...
  • Page 14: Care/Storage

    CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommend cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation.
  • Page 15: Warranty

    NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
  • Page 16: Specifications

    Monitor options ( 1.4 ) 25033 Standard HDMI bulkhead with M16 thread 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) 25627 M16 Offset Connector with Vacuum Valve II (Pushbutton Release) 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor...
  • Page 17 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
