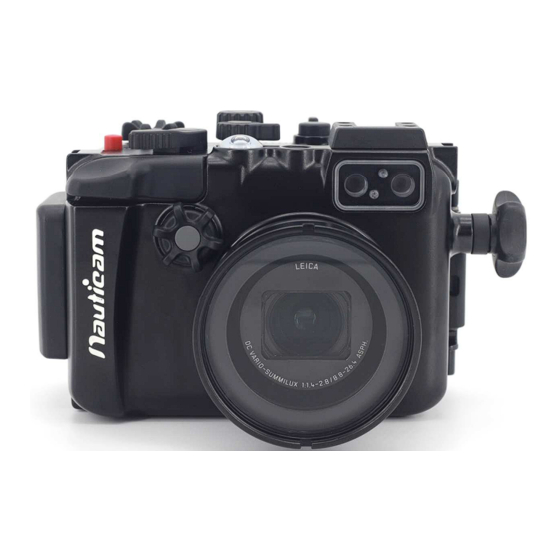

- Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Care and Maintenance ………………………………………………………………………………………. Optional Accessories ………………………………………………………………………………………….. -
Page 4: Warranty
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products. -
Page 5: Precautions
O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage. - Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...
-
Page 7: Package Contents
ACKAGE ONTENTS • NA-LX10 housing • A pair of handle brackets with screws • Shutter release extension • Spare silicone rubber O-ring for housing • O-ring remover • CR2032 battery • Lubricant • Set of Allen keys • Instruction manual... -
Page 8: Specifications
PECIFICATIONS Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 170mm Dimensions Height: 116mm Depth: 102mm Weight Approx. 0.84kg Buoyancy Slightly negative Depth rating 100 metres Port mount Compatible Panasonic Lumix DMC-LX10 camera cameras Panasonic Lumix DMC-LX15 camera... -
Page 9: Identification Of Parts
DENTIFICATION OF ARTS On/Off lever Moisture Mode dial alarm window Rear dial Zoom lever Motion picture button Housing lock safety button Housing lock Threaded holes for handle brackets (Right) / Hand strap Front dial Attachment point for hand strap Shutter release lever... - Page 10 Flash on lever M10 strobe mounting base M14 accessory port Accessory coldshoe Threaded holes for handle brackets (Left) Zoom/focus knob Optical fibre mount Lens port w/ 67mm thread...
- Page 11 Mounting holes for LCD magnifier attachment rail Fn1 button Flash off lever Fn2 button Playback button Up /Exposure comp. button Right /Focus mode button Menu/Set button Left /White balance button Down /Drive mode button Display button Playback button...
- Page 12 Sacrificial zinc anode 1/4” – 20UNC tripod socket* *The maximum length of screws that can be used with the tripod sockets is 4mm.
-
Page 13: Opening And Locking The Housing
PENING AND OCKING THE OUSING To open the housing: Press the housing lock safety Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown... - Page 14 To lock the housing: Close the housing while the 2. Turn the housing lock clockwise housing is in the “Open” position. for 270°, until the lock reaches the “lock” position as shown. Confirm that the white indicator line on the safety button is visible.
-
Page 15: Preparation Of The Housing
Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;... - Page 16 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out goes into flashing blue light a repeating “beep”...
- Page 17 Optional vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
- Page 18 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...
-
Page 19: Installing The Camera
NSTALLING THE AMERA To install the camera into to the housing: 2. Lift the ON/OFF lever upwards. 1. Align the aperture ring of the housing to F11 using the guide markings on the housing. - Page 20 3. Set the camera aperture to F11 4. Push down the ON/OFF lever of and place the camera into the the housing to engage with the housing. camera’s on/off control 5. Confirm that all the controls of the housing are correctly engaged.
-
Page 21: Care And Maintenance
O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our... -
Page 22: Optional Accessories
PTIONAL CCESSORIES P.N. 25624 P.N. 25106 P.N. 25131 M14 Vacuum Valve II LCD Magnifier with Dioptric LCD Magnifier attachment rails for (Pushbutton Release) Adjustment NA-RX100III/RX100IV/RX100V/LX10 P.N. 71207 P.N. 71208 P.N. 71311 Flexitray II with left handle Adjustable right handle II Strobe mounting ball for (with 2pcs 1/4'' screws) (for Easitray II &...
