Page 1: Table Of Contents

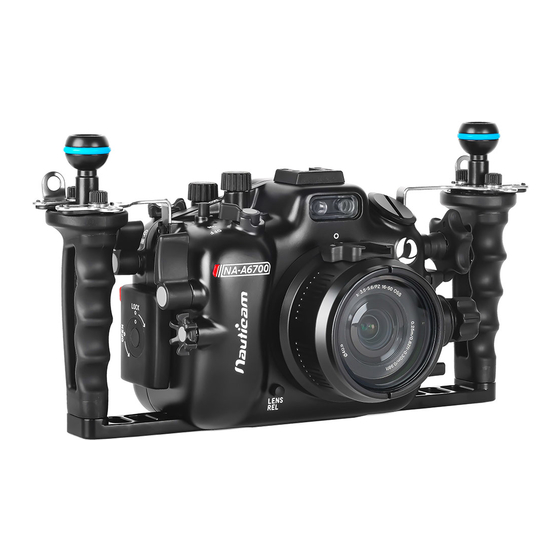

September, 2023 NA - A6700 For Sony A6700 Mirrorless Camera PN 17435 User Manual Housing APS-C- MIL Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use Optional Accessories Care/Storage Warranty Specifications... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-6700 Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Viewfinder Moisture alarm windo Menu button REC button C1 button Housing unlock button Quick control dial 1 ISO button Exposure compensation button Delete/C3 button Playback button Self-timer/Drive mode button Display button Fn button Menu/Set button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port M14 Accessory port Main switch M10 Accessory port C2 button Mode dial Rear dial Still/Movie/S&Q lever Accessory mounting ball Lens release button Port index mark...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Sacrificial zinc anodes Zoom/Focus knob release Port lock safety button Port lock lever AF-ON/Enlarge lever Shutter release lever Housing unlock button Front dial...
-
Page 7: Housing Mount
HOUSING MOUNT Housing mount Compatible accessories Cold Shoe 25311 Strobe Mounting Ball for Cold Shoe 25312 Light Mounting Stem for Cold Shoe 25321 Long Strobe Mounting Ball for Cold Shoe 25322 Long Light Mounting Stem for Cold Shoe M10 Accessory port 25221 M10 Strobe Mounting Ball M14 Accessory port... -
Page 8: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position... -
Page 9: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place... -
Page 10: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing remove the eye piece before installing into the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera place the actuator on the camera... - Page 11 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress port lock safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
- Page 14 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 15: Optional Accessories
OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M14 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and vacuum valve make sure the o-ring is in place accesory port then tighten the vacuum valve to on housing... -
Page 16: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 17: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 18: Specifications
Display window Abrasion Resistant Polycarbonate Dimensions Viewfinder Width 311 mm 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1 Height 169 mm 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1 Depth 111 mm 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1... - Page 19 WET LENS COMPATIBILITY *please refer to Nauticam port charts for more setup information. Wet Lens Optional Wet Lens Accessories Macro 81201 Super Macro Convertor 1 (2.3x Magnification) 25101 M67 Flip Diopter Holder for M67 Macro Ports 81202 Super Macro Convertor 2 (4x Magnification) 25108 M67 Double Flip Holder for M67 Macro Ports 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- Page 20 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
