Page 1: User Manual
User Manual AtlonA 1x12 HDMI Distribution Amplifier AT-HD-V112 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 2: Table Of Contents
..........7. IR Extender ..........7.1 IR Extender Connection ..........7.2 The IR Extender Components Setup ..........8. Applications ..........9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

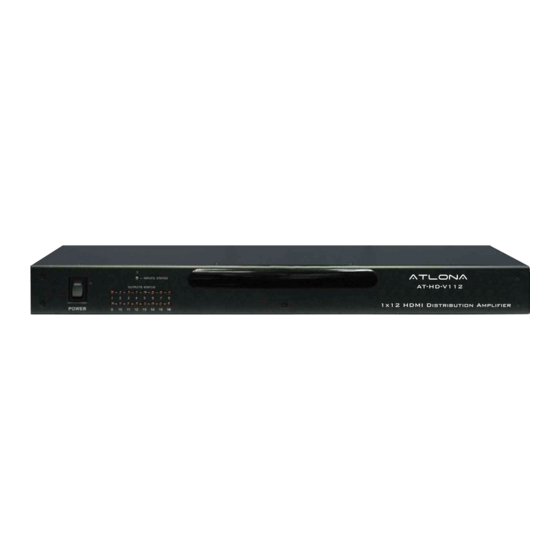

Atlona Technologies’AT-HD-V112 is a 1x12 HDMI Distribution Amplifer designed to work as a splitter for any High Defnition Video application With 1 HDMI Input and 12 HDMI Outputs, the AT-HD-V112 is capable of split- ting High Defnition signal from one source to twelve separate displays with compatible inputs With a built in amplifer, this unit has the ability to boost thH signal great distances, while preventing both signal loss and picture degrada¬tion. -
Page 4: Package Contents
PACKAGE CONTENTS: • 1x12 Splitter Unit (AT-HD-V112) • Instruction Manual • IR Remote Control • Universal AC/DC power adapter: 12VDC • 19 inch Ear mount pair • IR Extender receiver PANEL DESCRIPTIONS 1. Front Panel 1. POWER SWITCH. The power switch turns the unit on and off The LED will illuminate red to indicate that the switcher is ON 2. -
Page 5: Remote Control
For each desired output select the appropriate input by using the front panel select buttons or IR remote control When powering up the AT-HD-V112 will return to its last used setting before Powered down 1,2 SWITCH POWER ON or OFF IR EXTENDER 1. -
Page 6: The Ir Extender Components Setup
2. The IR Extender Components Setup APPLICATIONS HDMI Player Up to 12 HDMI Displays www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: 10. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 9: 11. Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
