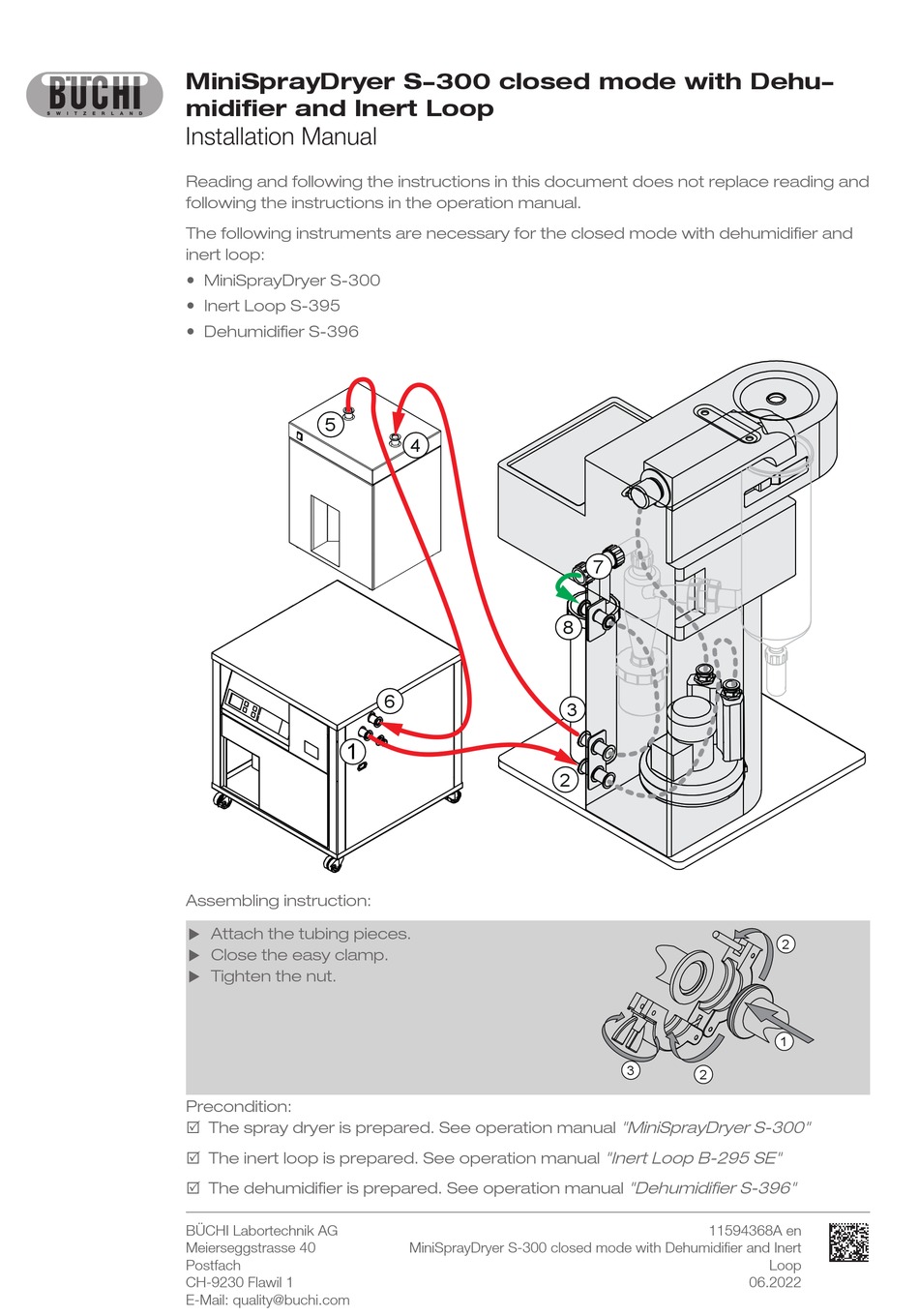

Buchi MiniSprayDryer S-300 Installation Manual

MiniSprayDryer S-300 closed mode with Dehu-
midifier and Inert Loop
Installation Manual
Reading and following the instructions in this document does not replace reading and
following the instructions in the operation manual.
The following instruments are necessary for the closed mode with dehumidifier and
inert loop:
— MiniSprayDryer S-300
— Inert Loop S-395
— Dehumidifier S-396
5
1
Assembling instruction:
u Attach the tubing pieces.
u Close the easy clamp.
u Tighten the nut.
Precondition:
R The spray dryer is prepared. See operation manual "MiniSprayDryer S-300"
R The inert loop is prepared. See operation manual "Inert Loop B-295 SE"
R The dehumidifier is prepared. See operation manual "Dehumidifier S-396"
