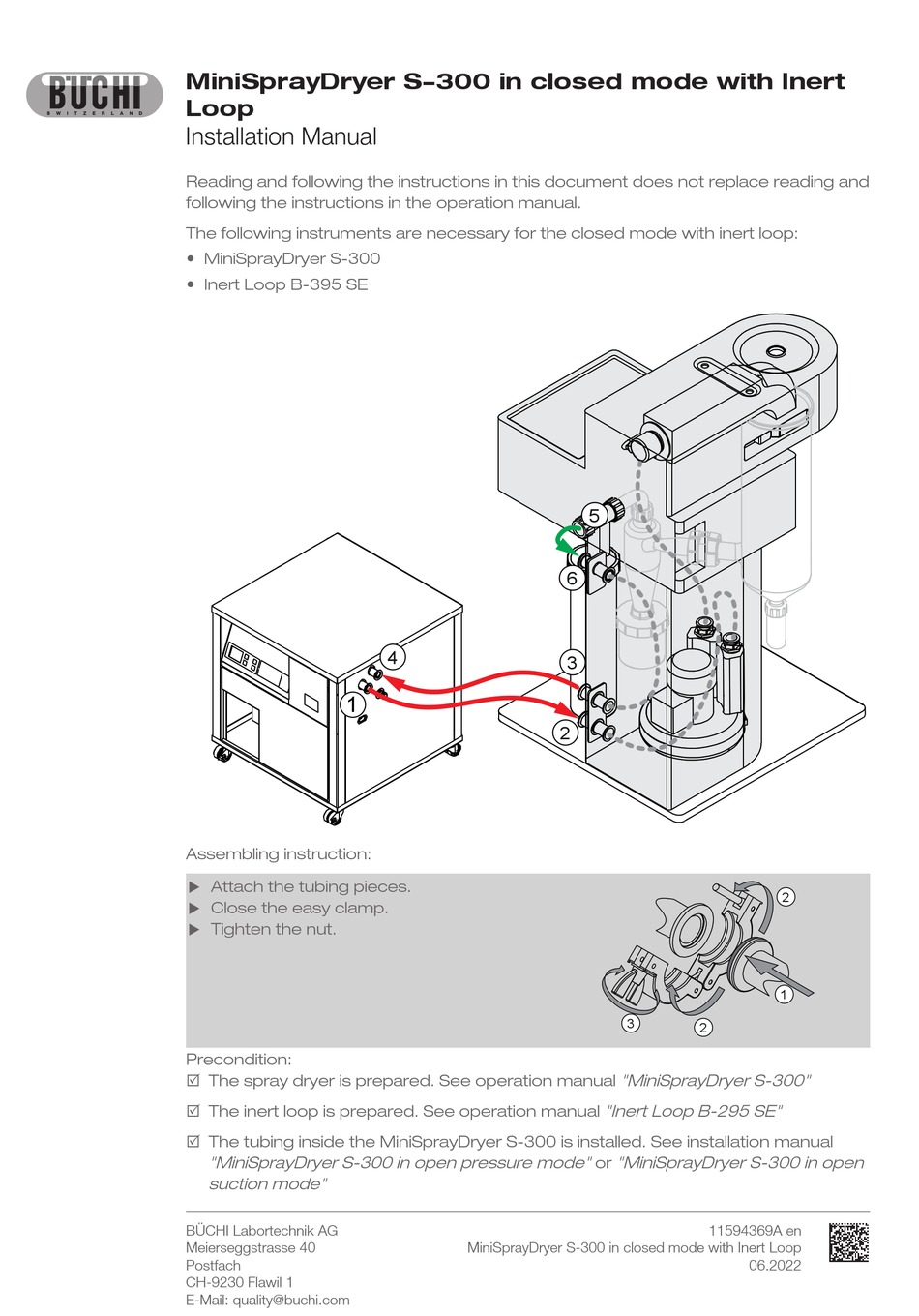

Buchi MiniSprayDryer S-300 Installation Manual

MiniSprayDryer S-300 in closed mode with Inert
Loop
Installation Manual
Reading and following the instructions in this document does not replace reading and
following the instructions in the operation manual.
The following instruments are necessary for the closed mode with inert loop:
— MiniSprayDryer S-300
— Inert Loop B-395 SE
1
Assembling instruction:
Attach the tubing pieces.
u
u Close the easy clamp.
u Tighten the nut.
Precondition:
R The spray dryer is prepared. See operation manual "MiniSprayDryer S-300"
R The inert loop is prepared. See operation manual "Inert Loop B-295 SE"
R The tubing inside the MiniSprayDryer S-300 is installed. See installation manual
"MiniSprayDryer S-300 in open pressure mode" or "MiniSprayDryer S-300 in open
suction mode"
