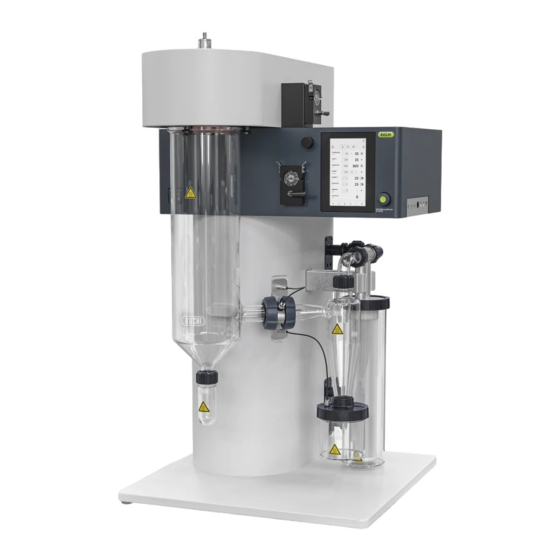

Buchi MiniSprayDryer S-300 Installation Manual

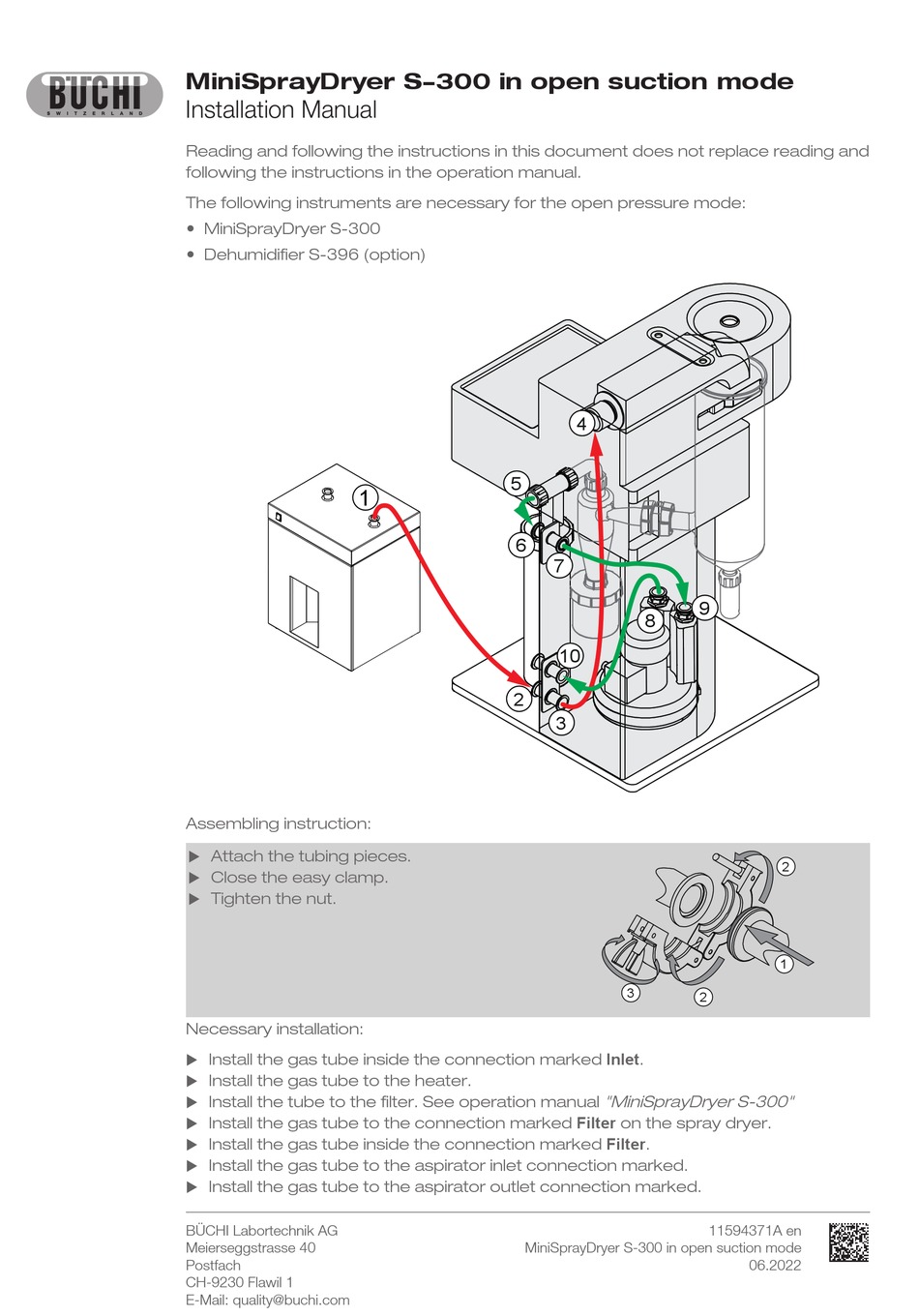

MiniSprayDryer S-300 in open suction mode
Installation Manual
Reading and following the instructions in this document does not replace reading and
following the instructions in the operation manual.
The following instruments are necessary for the open pressure mode:
— MiniSprayDryer S-300
— Dehumidifier S-396 (option)
1
Assembling instruction:
u Attach the tubing pieces.
u Close the easy clamp.
u Tighten the nut.
Necessary installation:
u Install the gas tube inside the connection marked Inlet.
u Install the gas tube to the heater.
Install the tube to the filter. See operation manual "MiniSprayDryer S-300"
u
u Install the gas tube to the connection marked Filter on the spray dryer.
Install the gas tube inside the connection marked Filter.
u
u Install the gas tube to the aspirator inlet connection marked.
u Install the gas tube to the aspirator outlet connection marked.
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
4
5
6
7
8
10
2
3
3
MiniSprayDryer S-300 in open suction mode
9
2
1
2
11594371A en
06.2022
