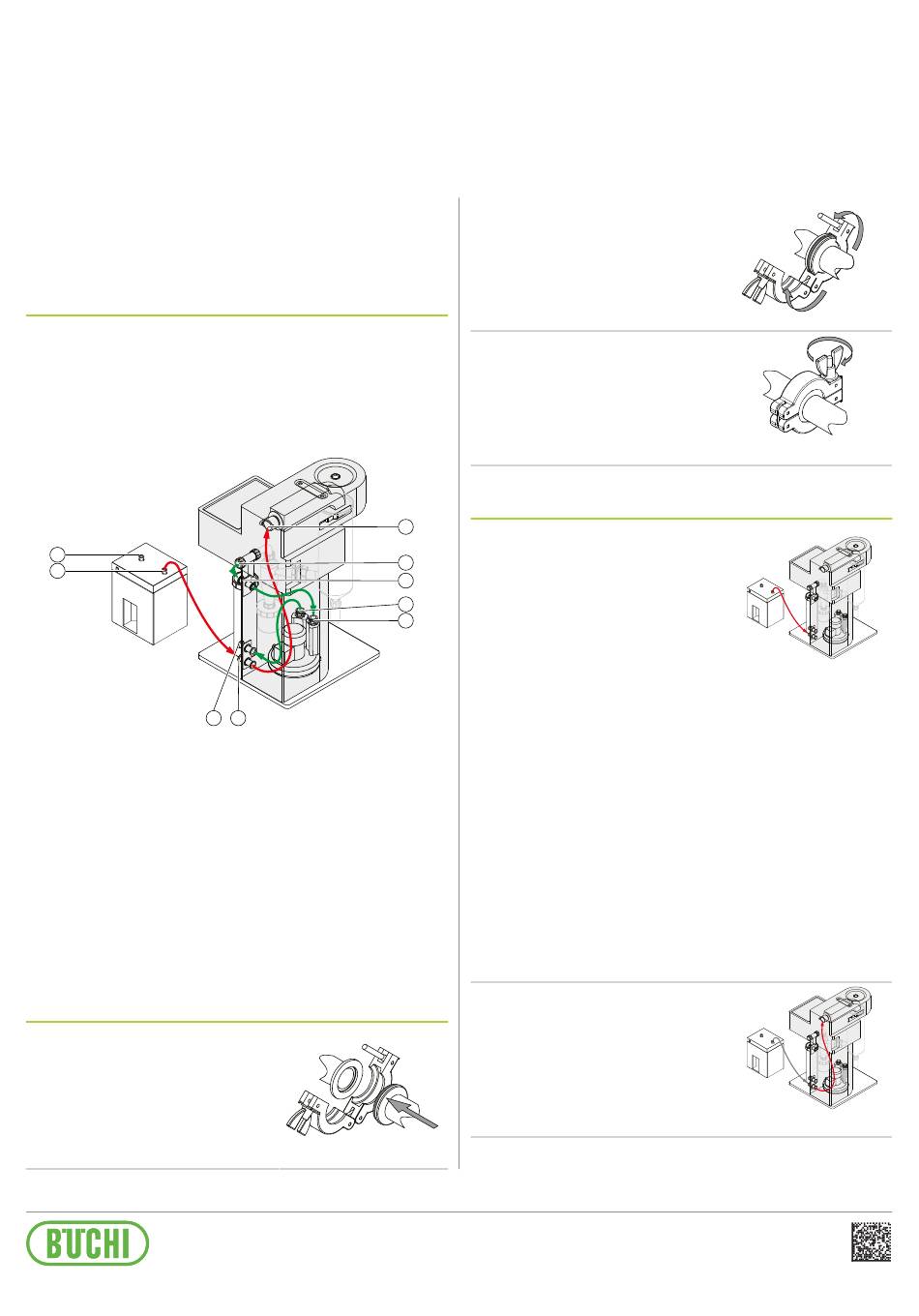

Buchi Mini Spray Dryer S-300 Installation Manual

Installation Manual
Mini Spray Dryer S-300 in open
suction mode
Reading and following the instructions in this document does
not replace reading and following the instructions in the op-
eration manual.
Configuration
The following instruments are necessary for the open suction
mode:
— Mini Spray Dryer S-300
— Dehumidifier S-396 (optional)
1
2
Dehumidifier S-396
1 Inlet
Mini Spray Dryer S-300
Outlet
3
5 Aspirator right
Heater
7
9 IN
Filter pressure
Securing the tubes
u Attach the tubing pieces.
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
3 4
2 Outlet
Inlet
4
6 Aspirator left
OUT
8
Filter pressure
u Close the easy clamp.
u Tighten the nut.
Installing the open suction mode
7
Precondition:
8
R The mini spray dryer is pre-
9
pared. See operation manual
6
"Mini Spray Dryer S-300 ".
5
R The dehumidifier is prepared.
See operation manual "Dehu-
midifier S-396 ".
R The tubing inside the Mini Spray
Dryer S-300 is installed. See in-
stallation manual "Mini Spray
Dryer S-300 in open pressure
mode " or "Mini Spray Dryer
S-300 in open suction mode ".
Install the process gas tube to
u
the dehumidifier OUT.
Install the other end from the
u
tube to the Mini Spray Dryer
S-300 inlet.
u Secure the process gas tube
with the easy clamp.
Install the process gas tube in-
u
side of the Mini Spray Dryer
S-300 to the inlet.
u Install the other end from the
tube to the heater.
u Secure the process gas tube
with the easy clamp.
Mini Spray Dryer S-300 in open suction mode
