Buchi S-300 Installation Manual

Installation Manual
Mini Spray Dryer S-300 in closed
pressure mode with Dehumidifier
and Inert Loop
Reading and following the instructions in this document does
not replace reading and following the instructions in the op-
eration manual.

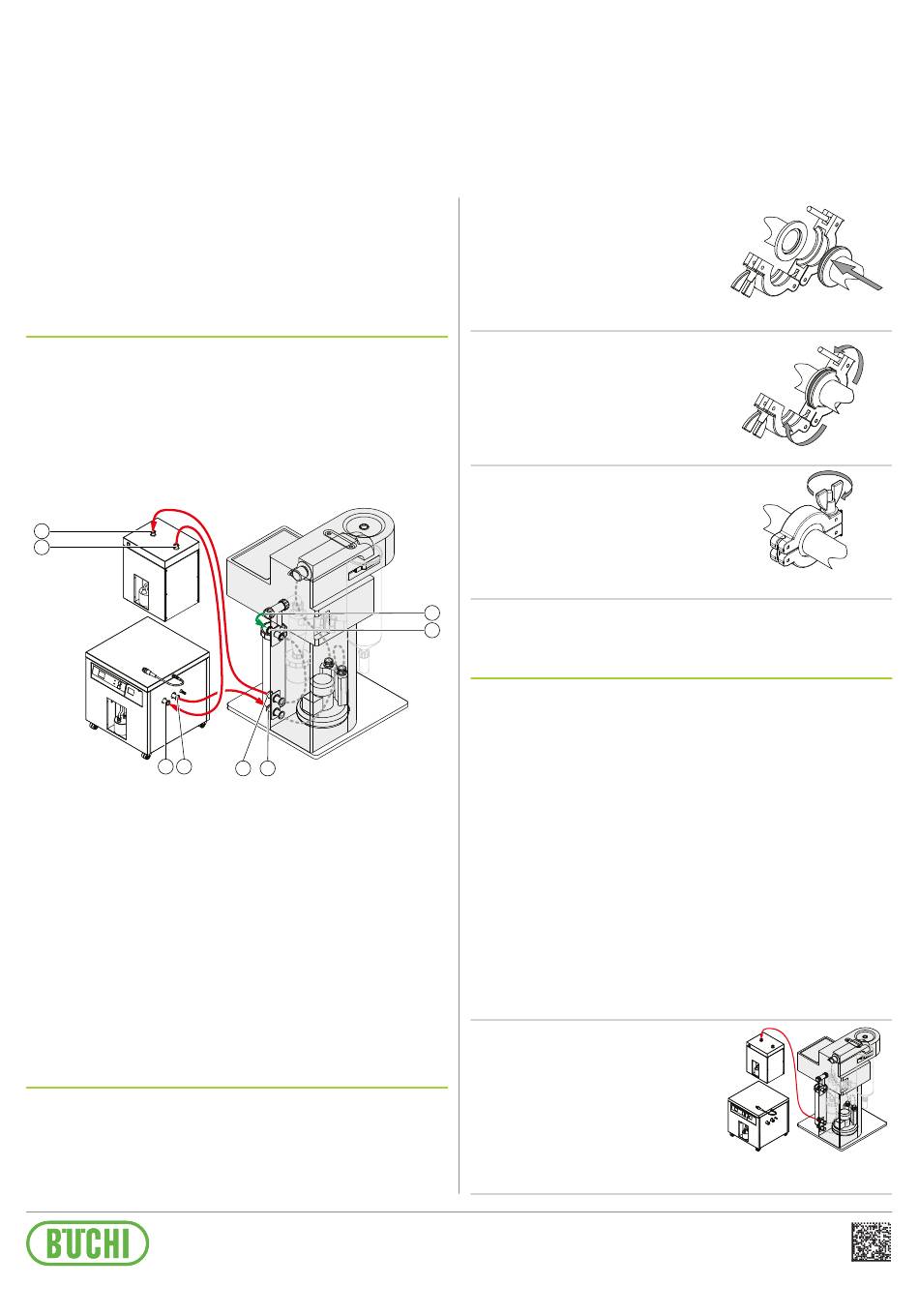

Configuration
The following instruments are necessary for the closed pres-
sure mode:
— Mini Spray Dryer S-300
— Inert Loop S-395
— Dehumidifier S-396
1
2
3 4
Dehumidifier S-396
1 Inlet
Inert Loop S-395
IN
3
Process gas
Mini Spray Dryer S-300
5 Outlet
IN
7
Filter pressure
Securing the tubes
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
5 6
2 Outlet
OUT
4
Process gas
6 Inlet
OUT
8
Filter pressure
u Attach the tubing pieces.
u Close the easy clamp.
u Tighten the nut.
8
7
Installing the closed pressure mode with
Dehumidifier S-396 and Inert Loop S-395
Precondition:
R The mini spray dryer is prepared. See operation manual
"Mini Spray Dryer S-300 ".
R The inert loop is prepared. See operation manual "Inert
Loop S-395 ".
R The dehumidifier is prepared. See operation manual "De-
humidifier S-396 ".
R The tubing inside the Mini Spray Dryer S-300 is installed.
See installation manual "Mini Spray Dryer S-300 in open
pressure mode " or "Mini Spray Dryer S-300 in open
suction mode ".
u Connect the inert loop communication cable to the re-
lated connection on the mini spray dryer. See operation
manual "Inert Loop S-395 ".
Install the process gas tube to
u
the Mini Spray Dryer S-300 out-
let.
Install the other end from the
u
tube to the dehumidifier IN.
Secure the process gas tube
u
with the easy clamp.
Mini Spray Dryer S-300 in closed pressure mode with Dehumidi-
11594368B en
fier and Inert Loop
02.2024
