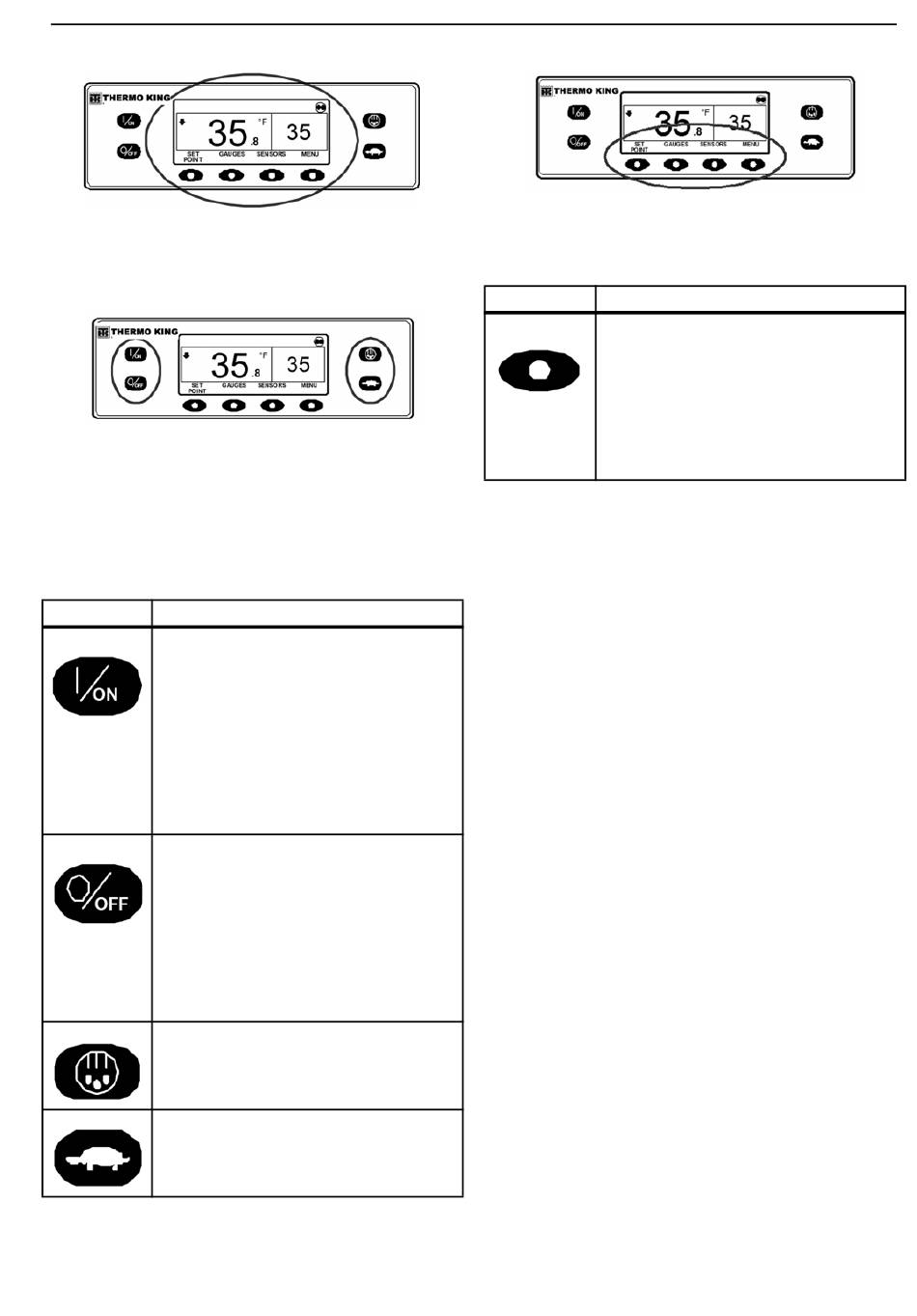

Figure 41: Display

Keys

Figure 42: Keys

Hard Keys

The keys on either side of the display are
dedicated or "hard" keys. Their function always
remains the same.
Hard Key Description
This key is used to turn the unit on. First
the display will briefly show the Thermo
King Logo and then the statement
"Configuring System - Please Wait".
When the power-up sequence is
complete the display shows the
Standard Display of box temperature
and setpoint. For more information see
"Turning the Unit On and Off" later in
this section.
This key is used to turn the unit off. First
the display will briefly show "System is
Powering Down - Please Wait. Press On
to Resume" and then "Off" will appear
momentarily. When the power-down
sequence is complete the display will be
blank. For more information see
"Turning the Unit On and Off" later in
this section.
This key is used to initiate a manual
defrost cycle. For more information see
"Initiating a Manual Defrost Cycle" later
in this section.
This key is used to lock out high speed
operation in noise sensitive areas. For
more information see "Selecting High
Speed Lockout" later in this section.
Operating Instructions for Premium HMI Control Panel
Figure 43: Soft Keys

Soft Keys

Soft Key Description
The four "soft" keys under the display
are multi-purpose keys. Their function
changes depending on the operation
being performed. If a soft key is active
the key function is shown in the display
directly above the key. The keys are
numbered from left to right, with Key 1
on the far left and Key 4 on the far right.
Typical soft key functions:
• MENU
• NEXT
• YES
• +
• SELECT
• CLEAR
• HOUR METERS SENSORS
• GAUGES

Turning the Unit On and Off

IMPORTANT: Verify the Base Controller
On/Off Switch is turned on before turning on the
HMI Control Panel. The Base Controller On/Off
switch is located on the outside of the control box
side of the unit.
If the Premium Truck HMI Control Panel is
turned on and the Base Controller On/Off Switch
is turned off, the HMI display screen will briefly
show LOST CONTROLLER POWER. The HMI
will then power down.
The unit is turned on by pressing the ON key and
off by pressing the OFF key. When the ON key is
pressed the display briefly shows the THERMO
KING Logo as the display initializes.
BACK
NO
-
EXIT
HELP
