INSTALLATION MANUAL FOR WIRE CONTROLLER

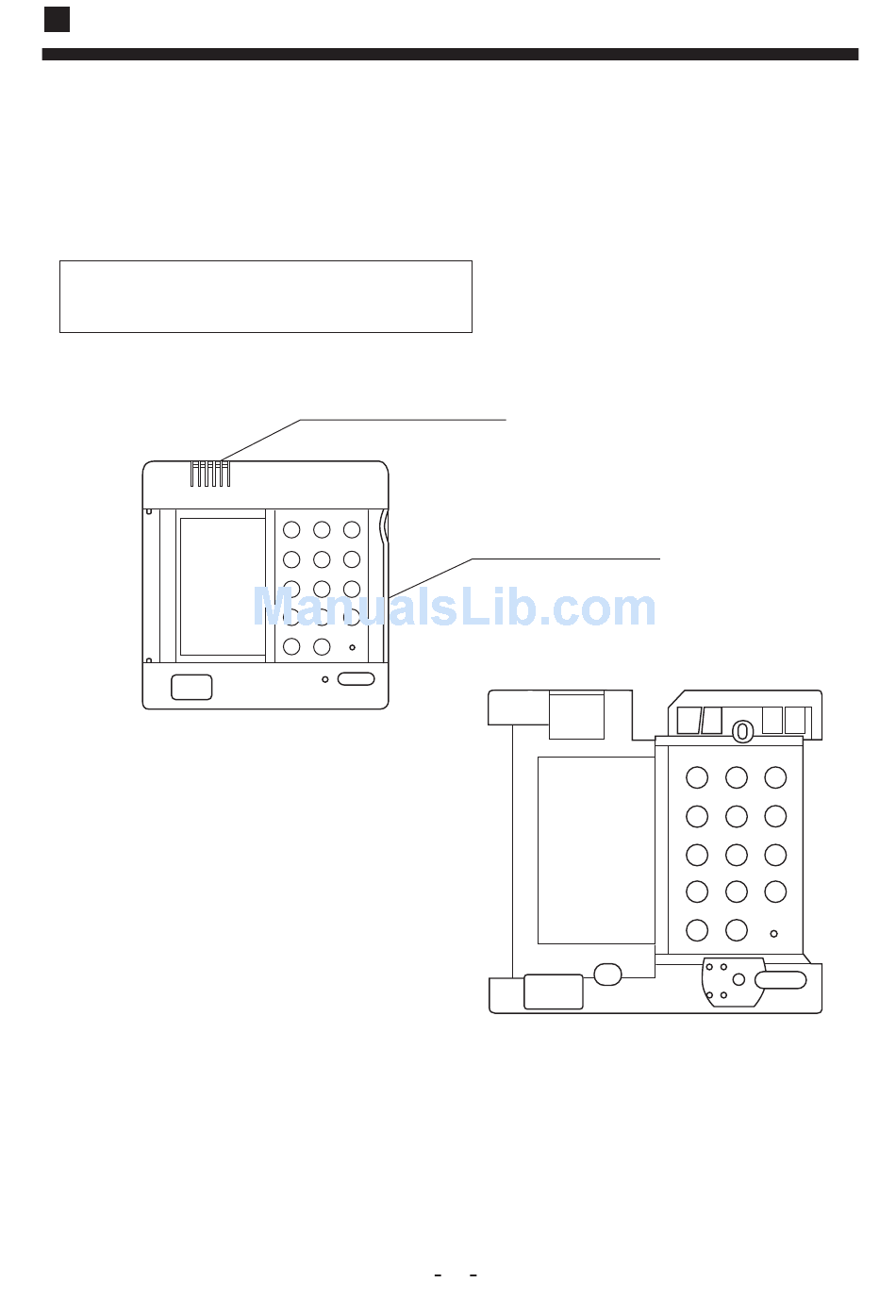

1. Remove upper part of wire controller
Remove upper part of wire controller
by press.
PCB is mounted on lower part of wire
controller, be careful not to damage it.
2. Install wire controller
(1) For exposed installation,
use 2 wood screws (accessory).
(2) For recessed installation,
use 2 wood screws (accessory).
Note
Try as far as possible a flat surface for installation. Don't use excessive
force when tightening screws, or lower part might got deformed.
Upper part of wire
controller
Lower part of wire
controller
