INIM Electronics PREVIDIA COMPACT Manual page 15

Configuration manual
After completing the connection of a new device or replacing an old device, it is necessary to select the address involved
then tap on the Add/Change button. When using Inim protocol, it is necessary to enter the serial number of the new
device.
- Program: button to access a section where it is possible to change some of the device options (refer to paragraph
4.1 Loop point parameters).
Once this operation has been completed the control panel will communicate with the new device. The appearance of
the type of device detected is the confirmation of its acquisition.

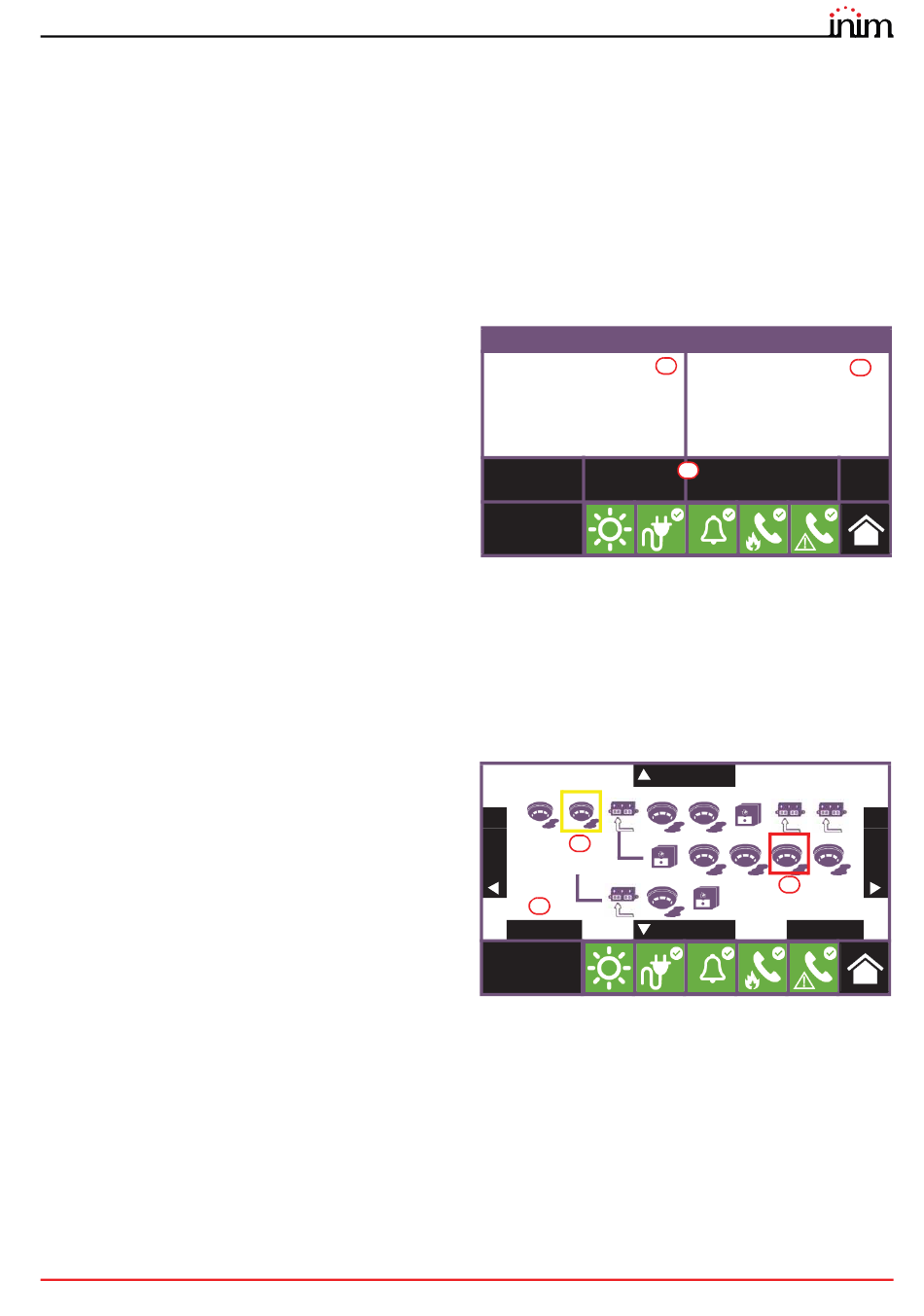

3.5.2 Loop diagnostics
Diagnostics
The button in the Loop configuration menu accesses the section for the loop diagnosis.
The upper left side [A] shows some of the electrical data of
the loop.
• Loop status: indicates whether the loop is a closed ring
circuit or open
• Loop O Terminal: indicates eventual short-circuits or
anomalies immediately on the loop output terminals
• Loop I Terminal: indicates eventual short-circuits or
anomalies immediately on the loop input terminals
• Loop Consumption: indicates the voltage draw of the
loop
• Cable resistance: indicates the resistance value of the
cable
The upper right side [B] shows the number and type of
devices currently in configuration.
The lower part [C] provides the following buttons:
• Loop reset, button to reset the loop and reassess its status.
In the event of a "Loop open" fault, it will be necessary to tap on this button in order to check whether or not the
interruption has been cleared.
• Scan, button to start a scan on an already enrolled loop.
The procedure verifies whether there are any connected devices which are not in the configuration, if devices have
been lost or if there are any other anomalies. The results of the scan can be viewed in the section on the top right of
the display.
• Show topology, button which steps to the layout screen
of the devices in the configuration of the already enrolled
loop.
The layout shows all the devices which are connected to
the loop and how they are connected to one another.
Any devices in alarm or fault status will be outlined in red or
yellow [D].
The selection of a device accesses the management page
of the device itself
The Update button [E] refreshes the screen by updating any
alarms and faults signalled by the devices shown (restored
fault events will not be shown).
System Parameters
Loopx: loop yyy
Loop status: closed
Loop O terminal: OK
Loop I terminal:
Loop consumption (mA): 15
Cable resistance (Ohm): 0
Rearm Scan
Access level:3
001 002 003 004
013
D
023 024
E
Update
Access level:3
Generic: 1
A
Detectors: 44
IN Modules: 12
OUT Modules: 5
IN/OUT Modules: 0
Sounder/flashers: 3
Call points: 8
C
Show topology
005 006 007 008
014 015 016 017
025
D
Esc
B
Esc
