- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VP-435 Component / UXGA HDMI Scaler P/N: 2900-000262 Rev 13...
-
Page 3: Table Of Contents
Using the IR Remote Control Transmitter Technical Specifications Figures Figure 1: VP-435 Component / UXGA HDMI Scaler Figure 2: Connecting the VP-435 Component / UXGA HDMI Scaler Figure 3: Connecting the Contact Closure Remote Control PINs Figure 4: Infrared Remote Control Transmitter VP-435 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VP-435 Component / UXGA HDMI Scaler, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VP-435 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The Kramer VP-435 is a high-quality component video/UXGA to HDMI scaler. It accepts one of three inputs: either component video (Y, Pb, Pr; Y, Cb, Cr and YUV; compatible with both SD and HD component) on RCA connectors, computer graphics on a 15-pin HD connector, or an HDMI signal, selected via a front panel selector button or via the remote contact closure switch. -
Page 8: Figure 1: Vp-435 Component / Uxga Hdmi Scaler

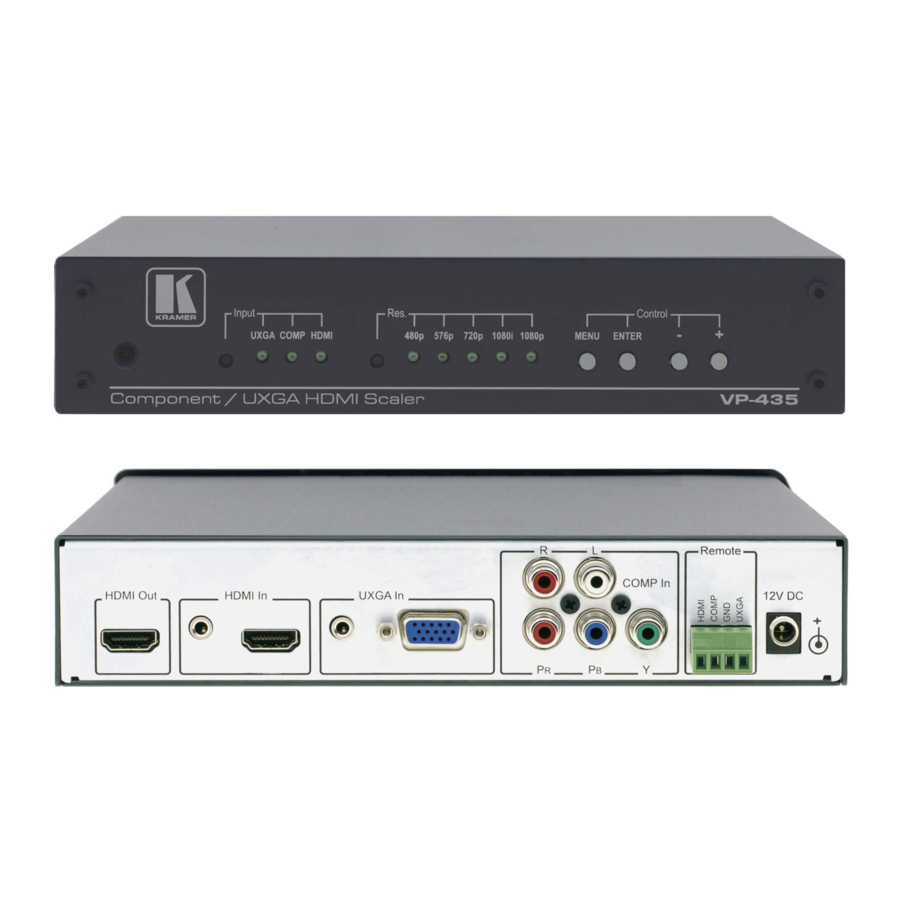

Figure 1: VP-435 Component / UXGA HDMI Scaler Feature Function IR Receiver Receives signals from the remote control transmitter INPUT Selector Button Press to select the UXGA input, the COMP input, or the HDMI input UXGA, COMP, HDMI INPUT Each LED lights when its input is selected... -
Page 9: Connecting The Vp-435
Connecting the VP-435 Always switch off the power to each device before connecting it to your VP-435. After connecting your VP-435, connect its power and then switch on the power to each device. To connect your VP-435, as illustrated in the example in... -
Page 10: Connecting The Remote Terminal Block
Figure 2: Connecting the VP-435 Component / UXGA HDMI Scaler Connecting the Remote Terminal Block The contact closure remote control pins operate in a similar way to the Input selector button. Using the contact closure remote control (also known as push-to- make momentary contact) you can select the HDMI, the COMP or the UXGA input. -
Page 11: Figure 3: Connecting The Contact Closure Remote Control Pins
Figure 3: Connecting the Contact Closure Remote Control PINs VP-435 - Connecting the VP-435... -
Page 12: Operating The Vp-435
A control operation, using the MENU, ENTER, + and – buttons Using the CONTROL Buttons The CONTROL buttons let you control the VP-435 via the OSD menu. Press the: MENU button to enter the menu The default timeout is set to 10 seconds. - Page 13 This is useful, for example, when the output is connected to a projector, and the projector will automatically shut down when it has no input VP-435 - Operating the VP-435...
- Page 14 Selects automatic input scan (default OFF) SCAN When ON, after power up, the VP-435 switches to the last selected input. If there is no signal present at this input, the VP-435 scans through the inputs (cycling through HDMI>UXGA>COMP) the LED of the detected input flashes.
-
Page 15: Using The Ir Remote Control Transmitter
Using the IR Remote Control Transmitter You can control the VP-435 from the infrared remote control transmitter, as Figure defines: Keys Function SIZE POWER SIZE Sets the size of the image displayed POWER Toggle the power save mode ON or... -
Page 16: Technical Specifications
21.5cm x 16.1cm x 4.36cm (8.46” x 6.34” x 1.7”) W, D, H DIMENSIONS: WEIGHT: 1.1kg (2.43lb) approx. ACCESSORIES: Power supply, IR remote control RK-1 19” rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com VP-435 - Technical Specifications... - Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
