Introduction –
This document is intended to give details and guidance to a boat builder or equipment installer to install
the Seakeeper, Inc. Model 7000 Stabilizing Gyro. The gyro is capable of producing loads up to 23.5 kN
(5300 lbs.) on each foundation saddle and careful consideration should be given to foundation design to
insure vessel is capable of handling the loads the gyro will impart into the hull. It is assumed that
personnel involved in installation are familiar with GRP structures as well as the use of high strength
adhesives that will be used to bond the gyro to the hull structure. It will be helpful to the installer to have
reviewed the following list of reference drawings to insure the installation procedure is fully understood.
Reference Drawings –
90001, Model 7000 Gyro Hardware Scope Of Supply
90002, Model 7000 Gyro Model 7000 Gyro General Specifications, Design Loads and Env.
Dimensions
90003, Model 7000 Gyro Cooling Schematic
90004, Model 7000 Gyro Assembly & Parts List
90005, Model 7000 Gyro Cable Block Diagram
90012, Model 7000 Gyro Installation Jig Assembly

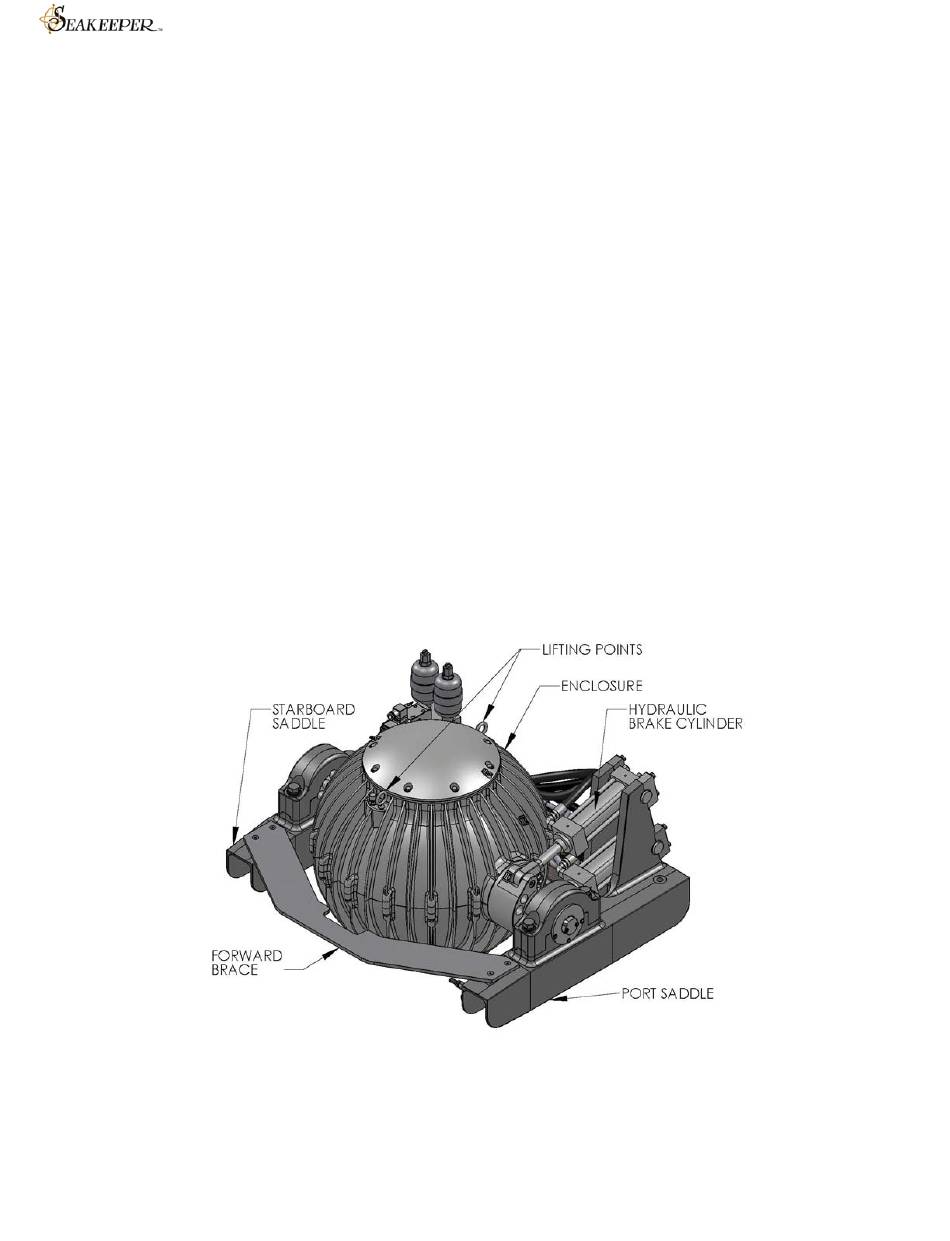

FIGURE 1 – MODEL 7000 GYRO
