Procedure: VALIDATING GYRO INSTALLATION WITHOUT FRONT BRACE

Description: Checking lateral alignment of cylinder rod ends

Application: Model 7000 gyro installed without using front brace to control foundation
alignment.
Other Items:
Required: millimeter ruler/ measuring device or instrument
Required: Doc # 90020, Rev 5, Model 7000 Gyro Installation Manual
Required: Dwg # 90002, Rev 3, Model 7000 Gyro Installation Details
Required: Dial indicator with base

Background

If the gyro has been installed without the use of the forward brace in place; the port and starboard
aluminum saddle beams may have moved relative to each other during handling (Fwd/Aft alignment) or
during gluing without the forward brace installed. This has the potential to misalign the gyro gimbal axis
which in turn will misalign the gimbal bearings and cause binding and premature wear of the brake
mechanism. In short, a misalignment during gluing could reduce the performance and life of the gyro.

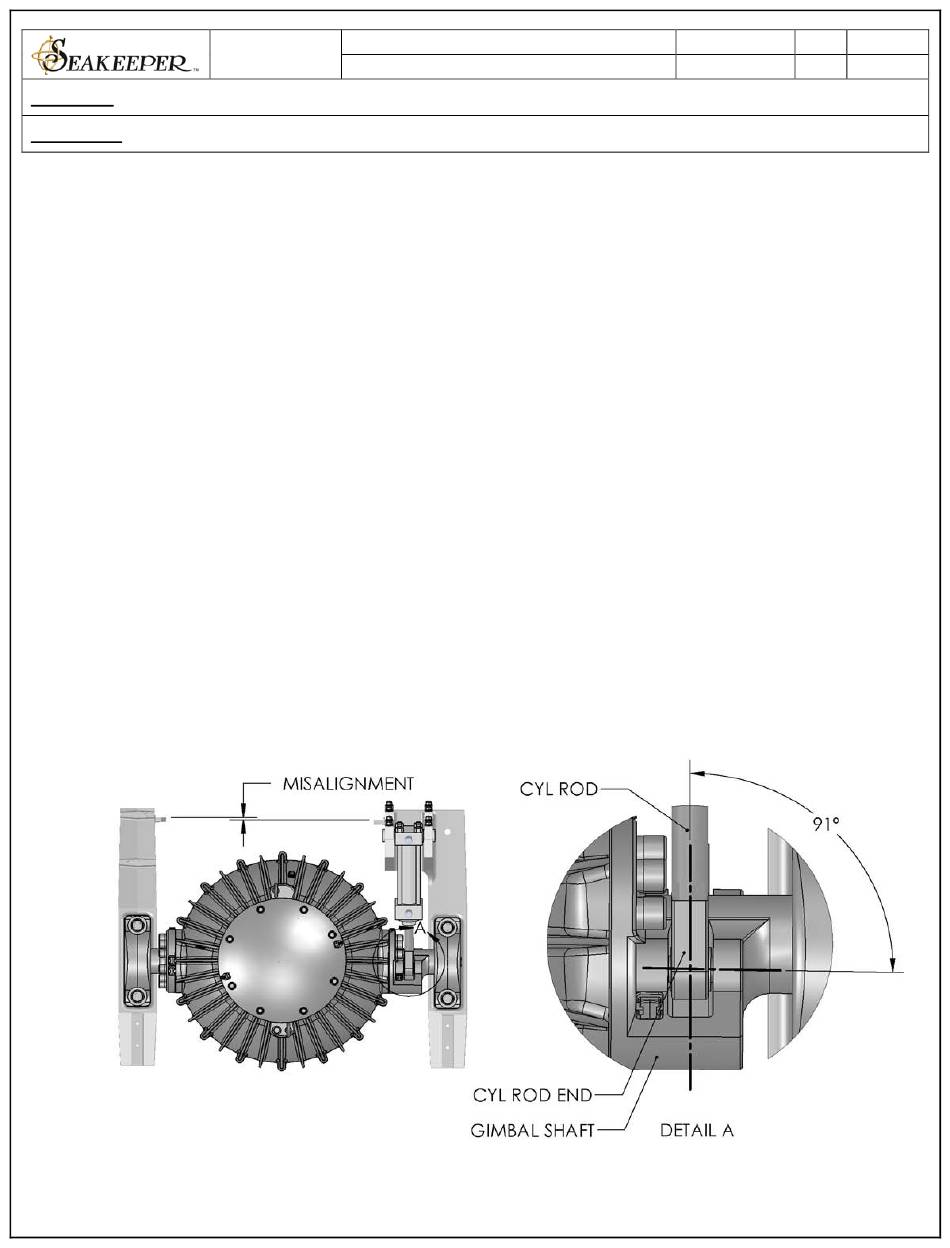

Figure 1 below shows the misalignment that could occur if the saddle beams are not in proper alignment
with each other. If the cylinder rod is not perpendicular to the gimbal shaft, a bending load will be
induced on the cylinder rod which could lead to premature failure of the cylinders, rods or seals.
Figure 1 Potential Misalignment of cylinder rod end at gimbal shaft
Product:
TECHNICAL
BULLETIN
MODEL 7000 GYRO
Document #:
Rev:
90073
2
Page:
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7000 GYRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seakeeper 7000 GYRO

  • Page 1 1 of 4 Procedure: VALIDATING GYRO INSTALLATION WITHOUT FRONT BRACE Description: Checking lateral alignment of cylinder rod ends Application: Model 7000 gyro installed without using front brace to control foundation alignment. Other Items: Required: millimeter ruler/ measuring device or instrument...
  • Page 2 Procedure: Document #: Rev: Page: TECHNICAL BULLETIN VALIDATING GYRO INSTALLATION WITHOUT FRONT BRACE 90073 2 of 4 Procedure: 1. Turn off power to Drive. Turn toggle switch on Drive enclosure to Off; leave both ship’s breaker and toggle switch off. 2.
  • Page 3 9. In addition to checking alignment, we want you to check some dimensions on Drawing 90002 Rev 3 Model 7000 Gyro Installation Details a. As shown on sheet 4, the gyro needs at least 64 mm clearance (centered in front...
  • Page 4 VALIDATING GYRO INSTALLATION WITHOUT FRONT BRACE 90073 4 of 4 to be replaced. List clearance below. Please send clear pictures indicating the measurement. _________ Tool clearance 10. Send all data for each gyro to Seakeeper for verification REVISION HISTORY REVISION DESCRIPTION OF CHANGES DATE APPROVED...
