Procedure: ANNUAL INSPECTION INSTRUCTIONS
1.
Purpose
This service bulletin identifies the specific areas to check for the recommended annual inspection of
the Seakeeper gyro stabilizers. Seakeeper has produced 5 different model gyros: Model 7000, 7000A,
8000, 21000 and 21000A.
2.
Identify Gyro

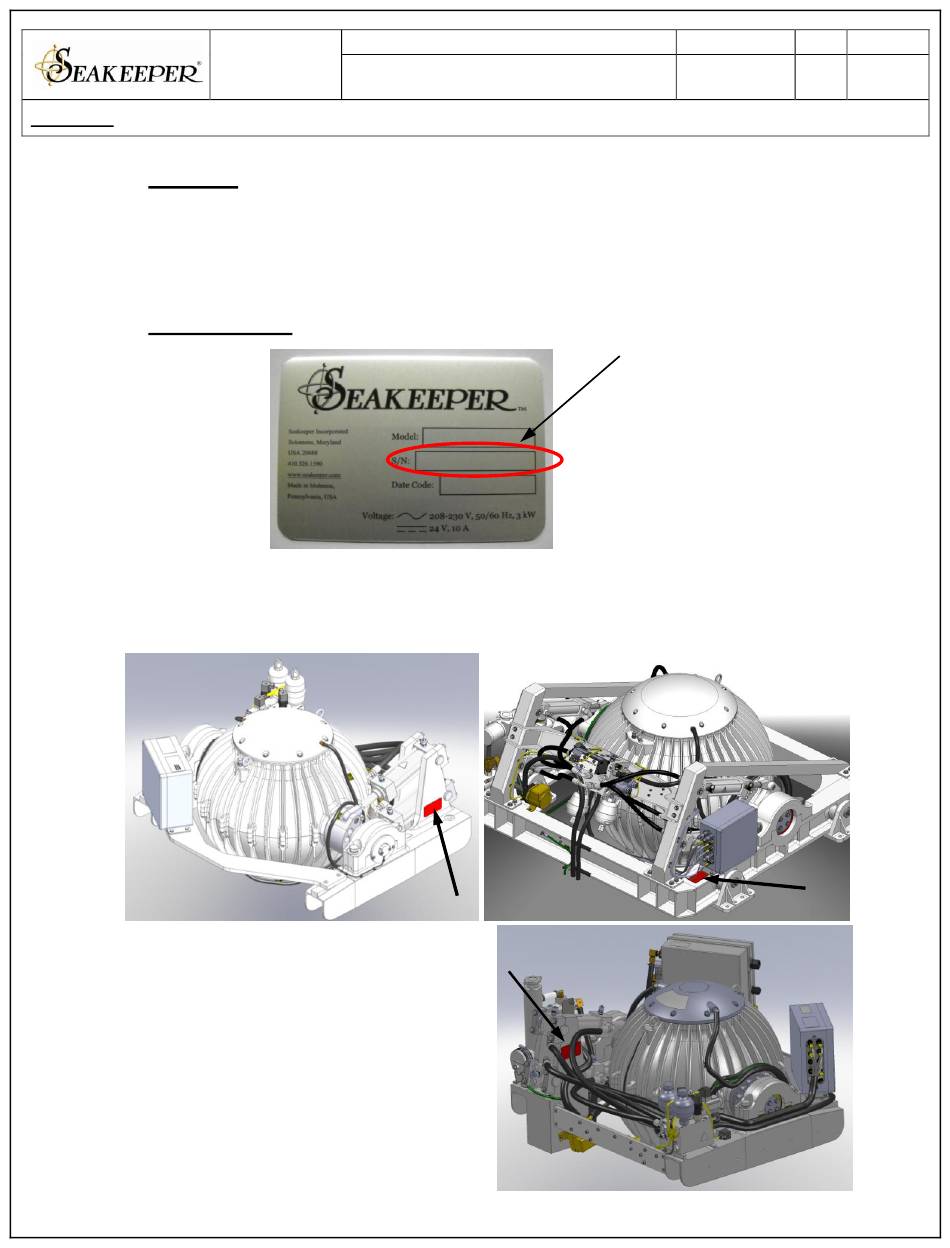

Every gyro has a product label with the model and serial number. Locate the product label and record
the model number and serial number. The location of the product label on different gyro models is
shown below.
Model 7000 & 7000A
For Model 7000 / 7000A, see Section 3.1, Page 2
For Model 8000, see Section 3.2, Page 7
For Model 21000 / 21000A, see Section 3.3, Page 11
Product:
SERVICE
MODEL 7000, 7000A, 8000, 21000,
BULLETIN
21000A GYROS
Document #:
Serial Number required
for all correspondence
with Seakeeper
Model 21000 & 21000A
Model 8000
Rev:
Page:
90133
1
1 of 16
