Seakeeper 7000 Installation Manual page 16

DOCUMENT # 90020, REV 5 MODEL 7000 GYRO INSTALLATION MANUAL-MAR09
d. Upgraded units have an external ground stud. Use an M6 terminal lug to bond
unit to vessel ground.
2) ORIGINAL GYRO CONTROL JUNCTION BOX POWER CONNECTION INSTRUCTIONS
a. 24 VDC (nominal), 10 Amps.
b. Connect +24 VDC as Cable 1 to the "Line" side of the single-pole Circuit Breaker.
c. Connect 0 VDC to TB2 on the terminal rail.

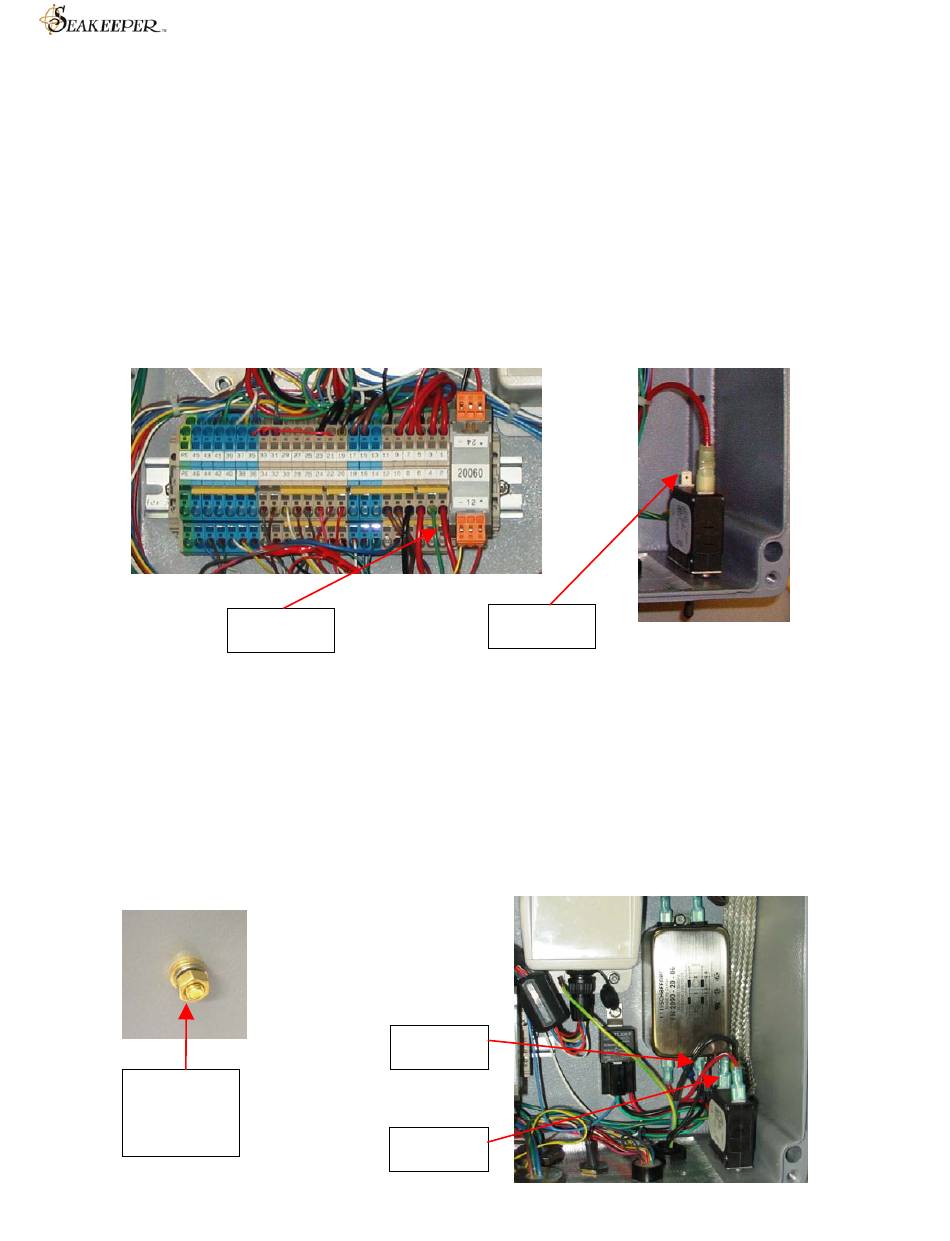

ORIGINAL GYRO CONTROL J-BOX, INPUT POWER CONNECTIONS
UPGRADED GYRO CONTROL JUNCTION BOX POWER CONNECTION INSTRUCTIONS
3)
a. 24 VDC (nominal), 10 Amps.
b. Connect +24 VDC as Cable 1 to the "Line" side of the single-pole Circuit Breaker.
c. Connect 0 VDC to the "Line" side of the Input Line Filter.
d. Upgraded units have an external ground stud. Use an M6 terminal lug to bond unit to
vessel ground.
UPGRADED GYRO CONTROL J-BOX, INPUT POWER CONNECTIONS
Ground
Stud
(External)
i. Use female "Quick Connect" crimp terminal provided.
i. Use wire ferrule provided.
0 VDC
i. Use female "Quick Connect" crimp terminal provided.
i. Use female "Quick Connect" crimp terminal provided.
0 VDC
+24 VDC
+24 VDC
Page 5 of 7
