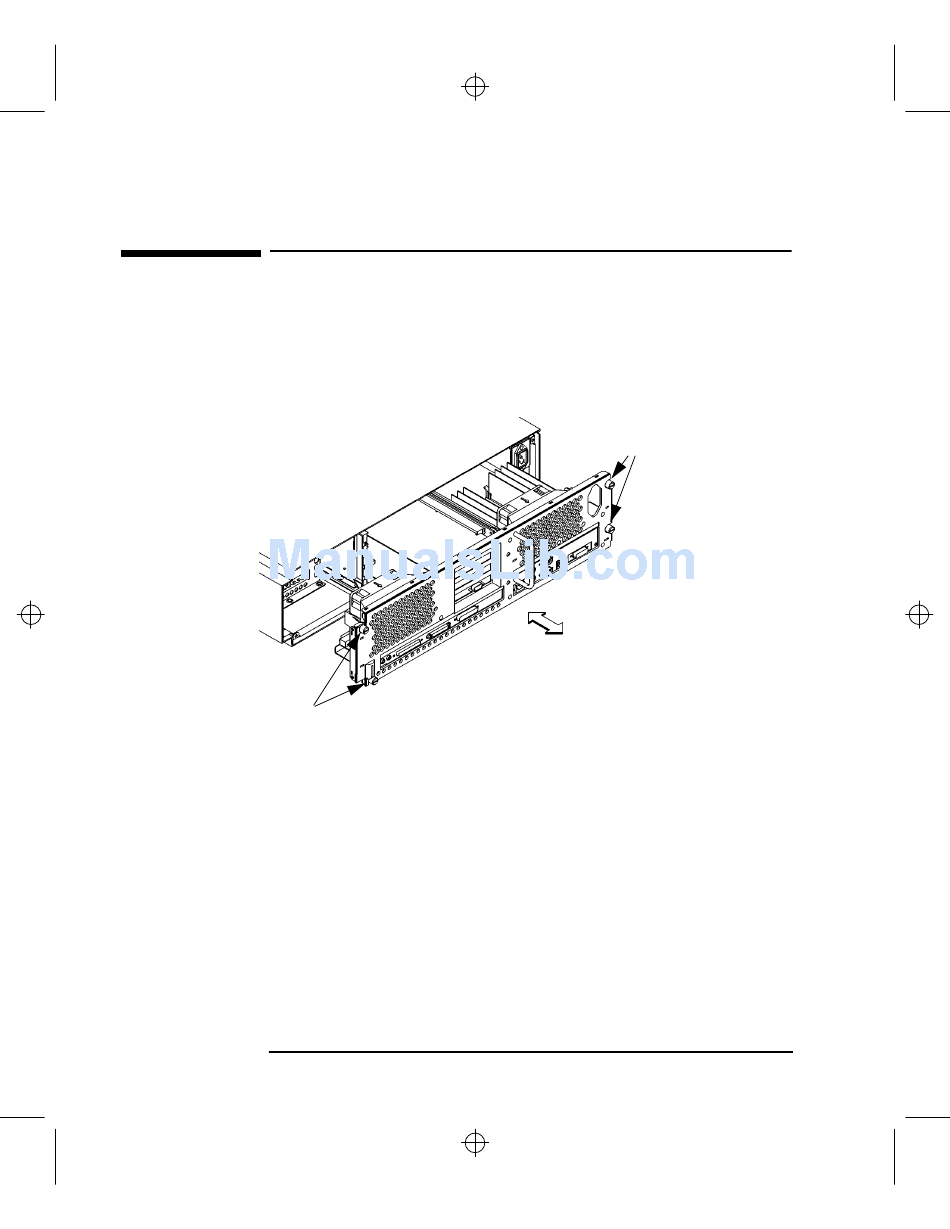

Figure 2

Removing the Main Tray Assembly

Removing the Main Tray Assembly
Once you have prepared the workstation, you need to remove the main tray
from the system unit, as described in the following procedure:
1 Completely loosen the four thumb screws on the rear of the system unit, as shown
in Figure 2.
Thumb Screws
Removing Main Tray Assembly
2 Place one hand on the top of the system unit and push, while pulling the handle
on the rear panel with your other hand. See Figure 2.
3 Slide the main tray assembly out of the chassis.
6
Thumb
Screws
