RavenUpgrade.FB 18 Mon Jul 15 11:43:09 1996

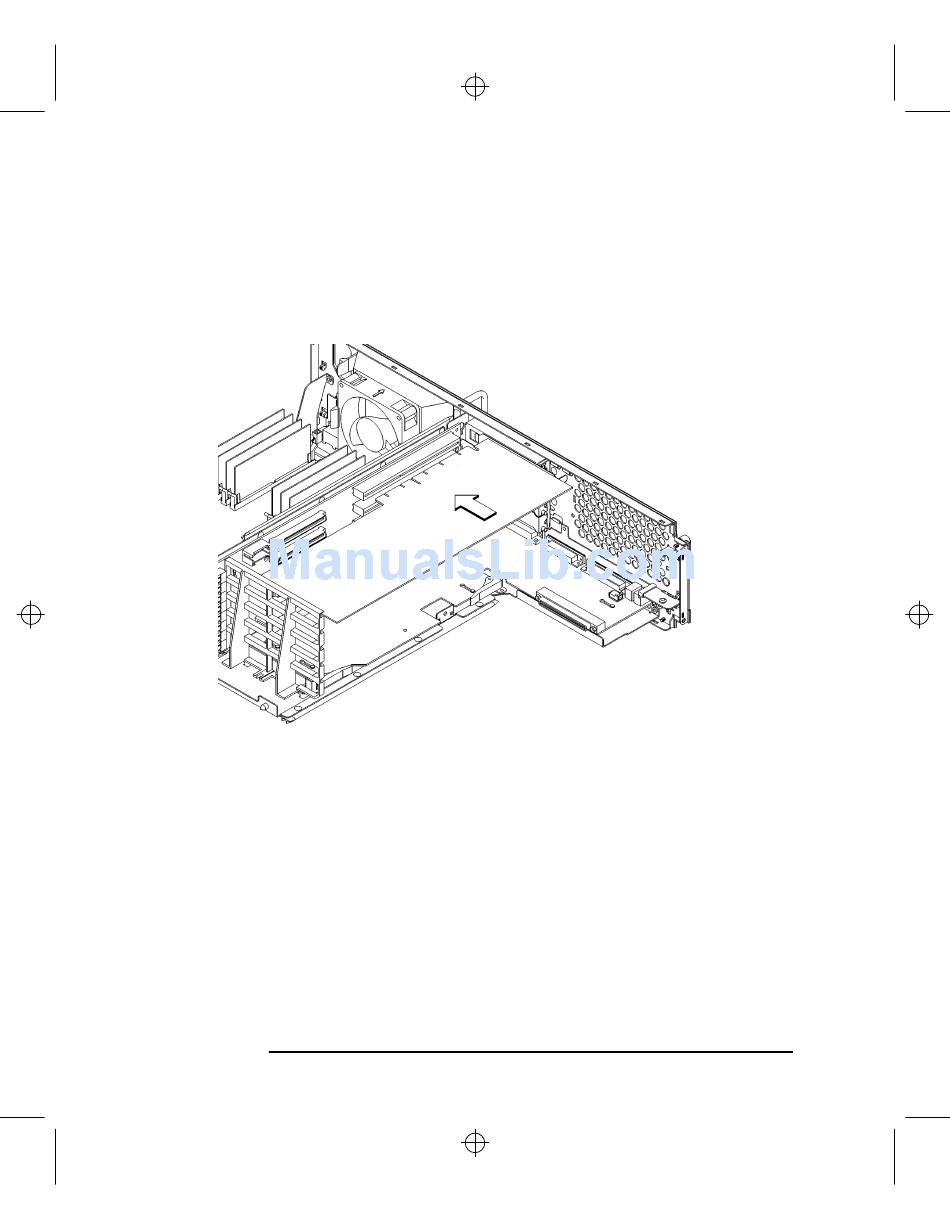

Figure 12
Installing Option Boards
6 Slide the option board into the slot. Make sure that the hole in the board's handle
aligns with the guide pin on the back panel, as shown in Figure 12.
7 Press in firmly on both ends of the option board at the same time to make sure
that it is firmly seated in the backplane connector.
Installing an Option Board
18
