Installing Option Boards
Option Board Installation
If you removed option boards from the C100/110/C160/C180 main tray, use
this procedure to install them in the new C200 main tray. Otherwise, skip to
the next section.

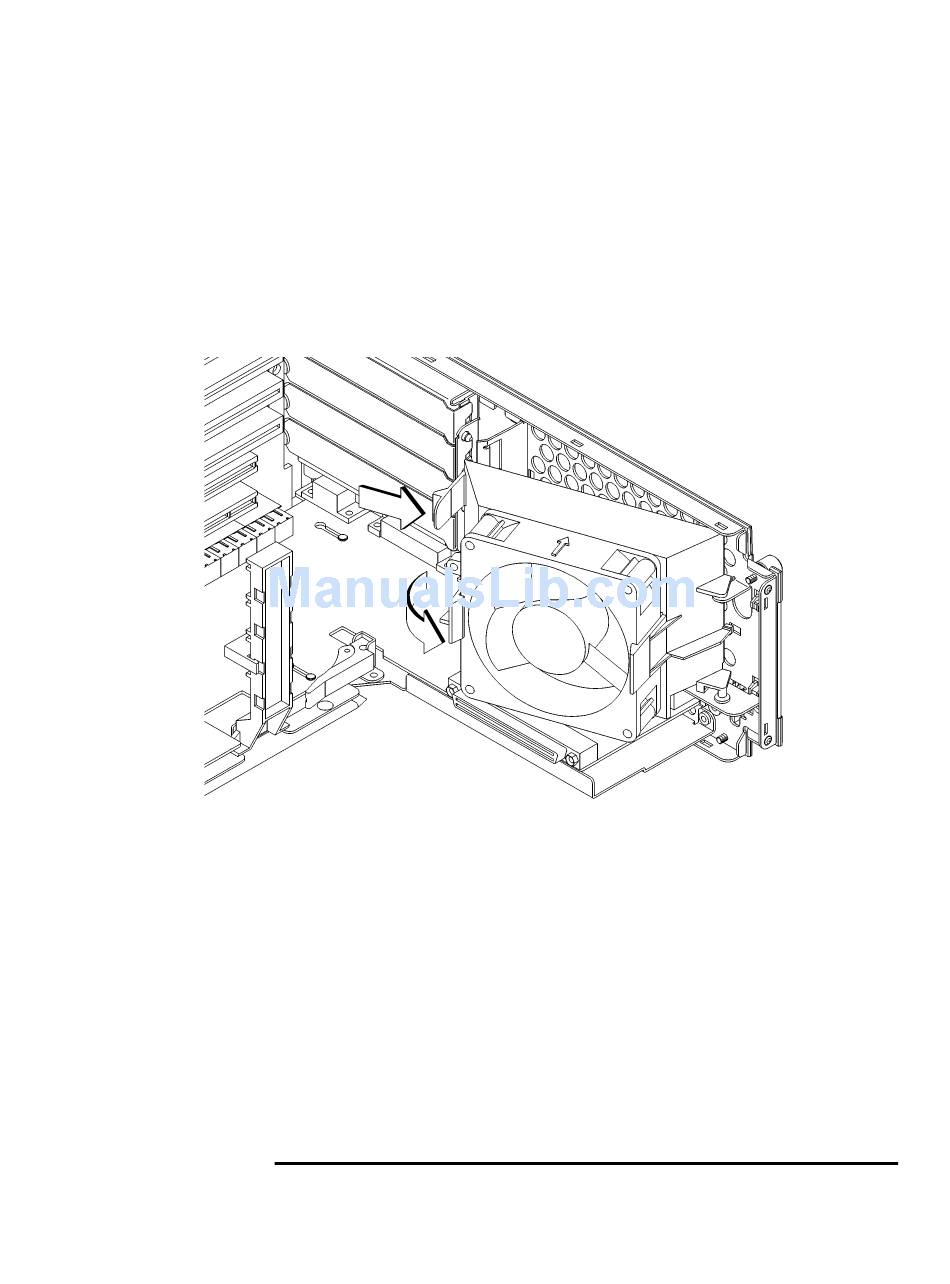

1 Press the fan release clip and rotate the fan, as shown in Figure 9.
Figure 9
Rotating the Fan
17
