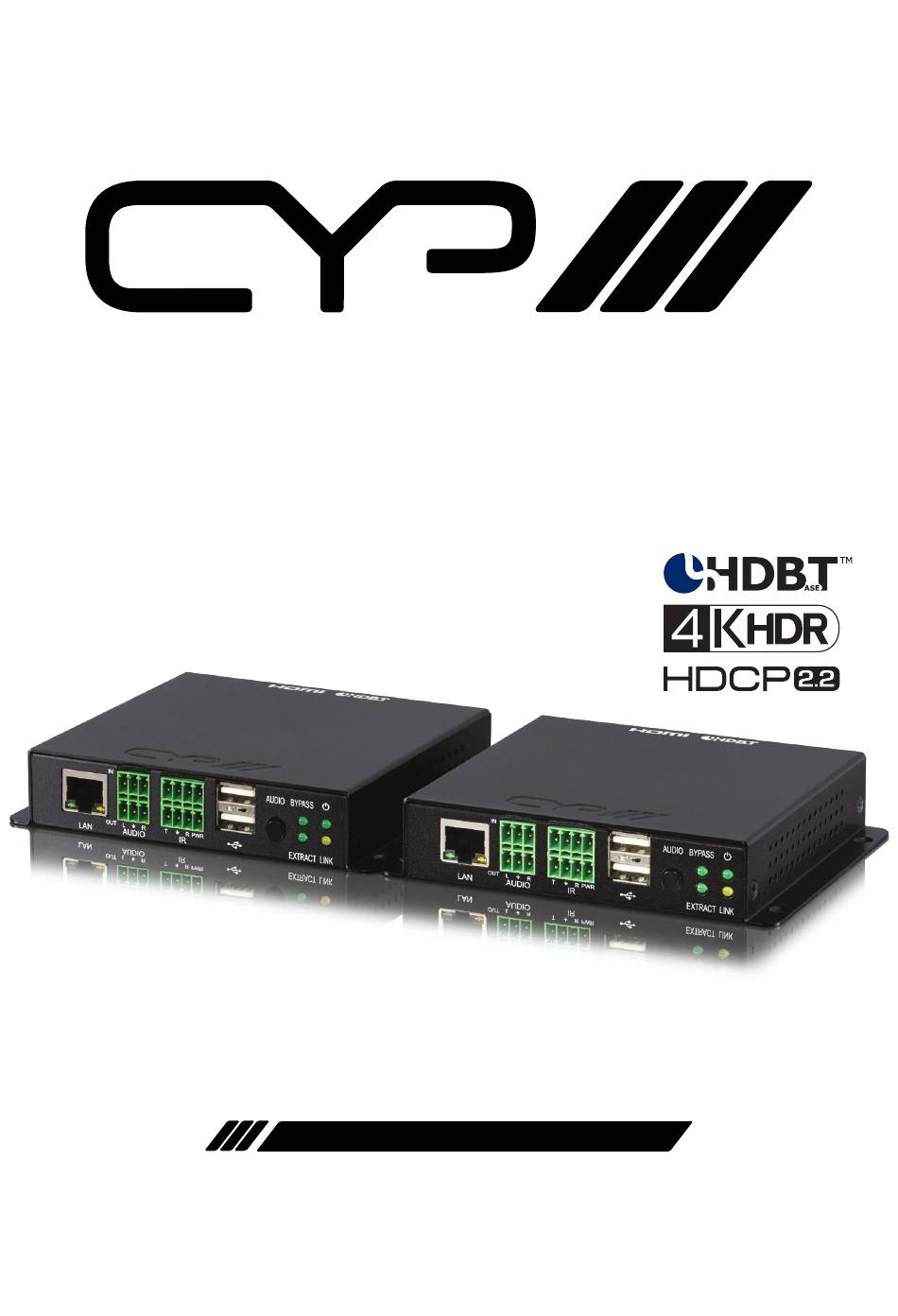

- Page 1 PUV-3090TX-UEA & PUV-3090RX-UEA UHD+ HDMI over HDBaseT3 Receiver with Analogue Audio I/O, USB 2.0 & LAN OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........2 3.1 Single Unit (Transmitter or Receiver) ...2 3.2 Dual Unit Set ............2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....4 6.1 Front Panel (Transmitter) ........4 6.2 Rear Panel (Transmitter) ........5 6.3 Front Panel (Receiver) ........6 6.4 Rear Panel (Receiver) ..........7... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI over HDBaseT transmitter and receiver pair uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat.6A/7 cable over distances of up to 100 meters. -
Page 7: Package Contents
3. PACKAGE CONTENTS 3.1 Single Unit (Transmitter or Receiver) 1× UHD HDMI over HDBaseT Transmitter or Receiver with USB KVM 1× 24V/2.7A DC Power Adapter (Transmitter only) 2× 3-pin Terminal Block 1× 8-pin Terminal Block 1× Operation Manual 3.2 Dual Unit Set 1×... -
Page 8: Features
5. FEATURES HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) 1 HDMI input, 1 HDMI output, and 1 HDBaseT output (Transmitter) 1 HDMI input, 1 HDMI output, and 1 HDBaseT input (Receiver) Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT Supports Deep Colour input and output up to 12-bit... -

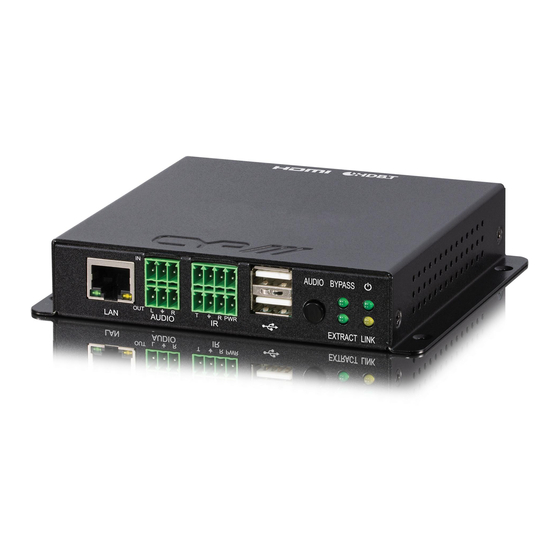

Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel (Transmitter) AUDIO BYPASS R PWR EXTRACT LINK AUDIO LAN Port: Connect to Ethernet supporting devices or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection. AUDIO IN 3-pin Terminal Block: Connect to the analogue audio output of a device such as a media player or game console using a 3-pin adapter cable. -
Page 10: Rear Panel (Transmitter)
Note: HDMI audio extraction is only available with LPCM 2.0 sources. Pressing this button will also change the setting on the receiver. BYPASS & EXTRACT LEDs: These LEDs will illuminate to indicate if the unit is in audio bypass or extract mode. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 11: Front Panel (Receiver)
6.3 Front Panel (Receiver) AUDIO BYPASS R PWR EXTRACT LINK AUDIO LAN Port: Connect to Ethernet supporting devices or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection. AUDIO IN 3-pin Terminal Block: Connect to the analogue audio output of a device such as a media player or game console using a 3-pin adapter cable. -
Page 12: Rear Panel (Receiver)
BYPASS & EXTRACT LEDs: These LEDs will illuminate to indicate if the unit is in audio bypass or extract mode. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active. -
Page 13: Rs-232 Pinout
6.5 RS-232 Pinout 4-pin Terminal Block 6.6 IR Pinout 4-pin Terminal Block 3.3V 6.7 Audio Pinout Stereo Audio Input Stereo Audio Output 3-pin Terminal Block 3-pin Terminal Block RIGHT RIGHT LEFT LEFT... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Router Tower PC Local Monitor 60° 1.5m 60° RS-232 IR Input & Output HDMI HDMI Input Output AUDIO BYPASS Power R PWR EXTRACT LINK AUDIO Supply DC24V CAT6A/7 OUT HDMI IN HDMI OUT IR Input & AUDIO BYPASS Output R PWR EXTRACT LINK... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications (Transmitter) HDMI Bandwidth 18Gbps HDBaseT Bandwidth 18Gbps Input Ports 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block) Output Ports 1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block) Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A) 1×LAN (RJ-45) Pass-through/Service Port... -
Page 16: Technical Specifications (Receiver)
8.2 Technical Specifications (Receiver) HDMI Bandwidth 18Gbps HDBaseT Bandwidth 18Gbps Input Ports 1×HDBaseT (RJ-45) 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block) Output Ports 1×HDMI (Type-A) 1×Analogue Stereo (3-pin Terminal Block) Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A) 1×LAN (RJ-45) Pass-through/Service Port... -
Page 17: Video Specifications
8.3 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBT HDMI HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 18 Input Output Supported Resolutions (Hz) HDMI HDBT HDMI HDBT 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 ...
-
Page 19: Audio Specifications
8.4 Audio Specifications 8.4.1 Digital Audio HDMI & HDBaseT Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.4.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 10kΩ... -
Page 20: Cable Specifications
8.5 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 Cat.6A/7 100m Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video) - 4K@24/25/30Hz &... -
Page 21: Hdbaset Features
8.6 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Supported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported HDBaseT Feature Set Receiver Video &... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital-to-Analogue Converter Decibel Digital Visual Interface EDID Extended Display Identification Data Gigabit Ethernet Gbps Gigabits per second HDBT HDBaseT... - Page 23 ACRONYM COMPLETE TERM Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
- Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
