- Page 1 PUV-1602TXWP HDMI/VGA over Single CAT5e/6/7 HDBaseT™ Wallplate Transmitter (Full 5Play™ & Single LAN up to 100m, PoH) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 RS-232 Protocol ........10 6.4 RS-232 Commands ........11 7. -
Page 6: Introduction
1. INTRODUCTION This Transmitter is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with UK two-gang sized enclosures. This Transmitter can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 100 metres at 1080p@60Hz. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. HDMI receiving equipment such as an HDTV, monitor or audio amplifier. The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended. -
Page 8: Operation Controls And Functions

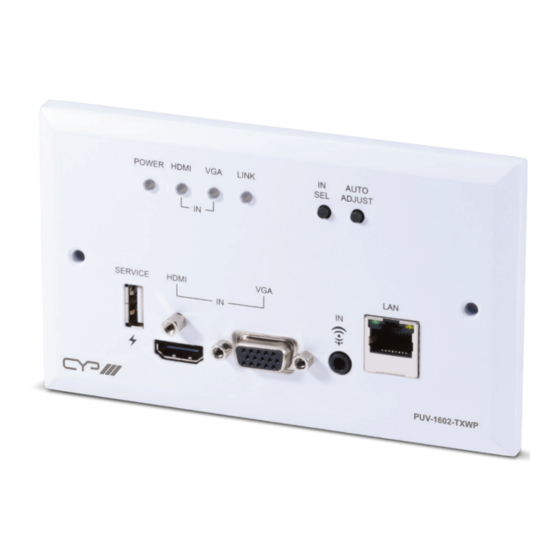

AUTO ADJUST SERVICE HDMI AUDIO PUV-1602TXWP POWER LED: This LED will illuminate to indicate the unit is on and receiving power. HDMI IN LED: This LED will illuminate when HDMI is the selected source. VGA IN LED: This LED will illuminate when VGA is the selected source. -
Page 9: Rear Panel
AUDIO IN: Connect to the stereo analogue output of a device such as a CD player or PC for embedding into the HDBaseT output. LAN: Connect directly, or through a network switch, to your PC/laptop to control the unit. 6.2 Rear Panel DC 12V −... -
Page 10: Rs-232 Protocol
6.3 RS-232 Protocol Pinout Pinout... -
Page 11: Rs-232 Commands
6.4 RS-232 Commands COMMAND DESCRIPTION AND PARAMETERS HELP Show the full command list. Show the full command list. GET FW VER Show the unit’s firmware version. GET MODEL NAME Show the unit’s model name. SET FACTORY DEFAULT Reset all settings to the factory defaults. - Page 12 COMMAND DESCRIPTION AND PARAMETERS SET FIX TIMING MODE N1 Set the scaler’s output mode. Available values for N1: [Bypass] [Auto] [480P@60Hz] [720P@50Hz] [720P@60Hz] [1080P@50Hz] [1080P@60Hz] [4K@24Hz] [4K@25Hz] [4K@30Hz] GET FIX TIMING MODE Show the scaler’s current output mode. SET FIX Colour SPACE N1 Set the output colour space.
- Page 13 COMMAND DESCRIPTION AND PARAMETERS SET IN 1 HDCP MODE N1 Set the HDCP mode for the HDMI input. Available values for N1: [Disable HDCP] [Follow Source] [Follow Display] GET IN 1 HDCP MODE Show the current HDCP mode for the HDMI input. SET IN 1 EDID N1 Set the EDID to use with the HDMI input.
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVD/Blu-ray Player HDMI Input Stereo Input Input POWER HDMI LINK AUTO ADJUST UHD WALLPLATE EXTENDER SERVICE HDMI Cat.5e/6/7 Wireless Cable Router Power Supply BLASTER HDMI OUT DC 48V EXTENDER RS-232 OUT POWER STD UPDATE LINK RS-232 RS-232 Equipped HDMI PC/Laptop... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340Hz/10.2Gbps Input Ports 1×HDMI 1×VGA 1×3.5mm (Stereo Audio) Output Port 1×Cat.5e/6/7 Pass-through Port 1×LAN [RJ-45] Baud Rate 19200bps Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions... -
Page 16: Video Specifications
8.2 Video Specifications Input Output HDMI via Supported PC Resolutions (Hz) HDMI HDBaseT 640×480 60, 72, 75, 85 720×400 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 ... - Page 17 Input Output HDMI via Supported TV Resolutions (Hz) HDMI HDBaseT 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 23.97, 24, 25, 29.97, 30 ...
-
Page 18: Cable Specifications
8.3 Cable Specifications 1080p HDMI Cable Length (meter) 8-bit 12-bit 8-bit Input Output Cat. Cable Length (meter) 1080p Cat.5e Cat.6 Cat.7 Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) - 4K@24/25/30Hz &... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Consumer Electronics Control Digital Visual Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Local Area Network LPCM Linear Pulse-Code Modulation Powered Device Power over HDBaseT Power Sourcing Equipment... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
