Summary of Contents for CYP PUV-1620S-TX

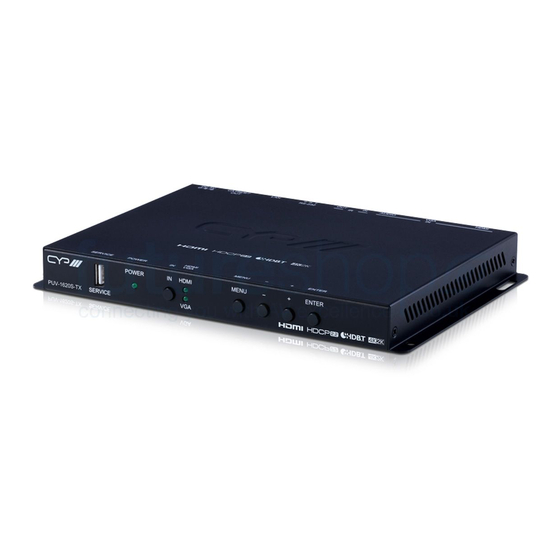

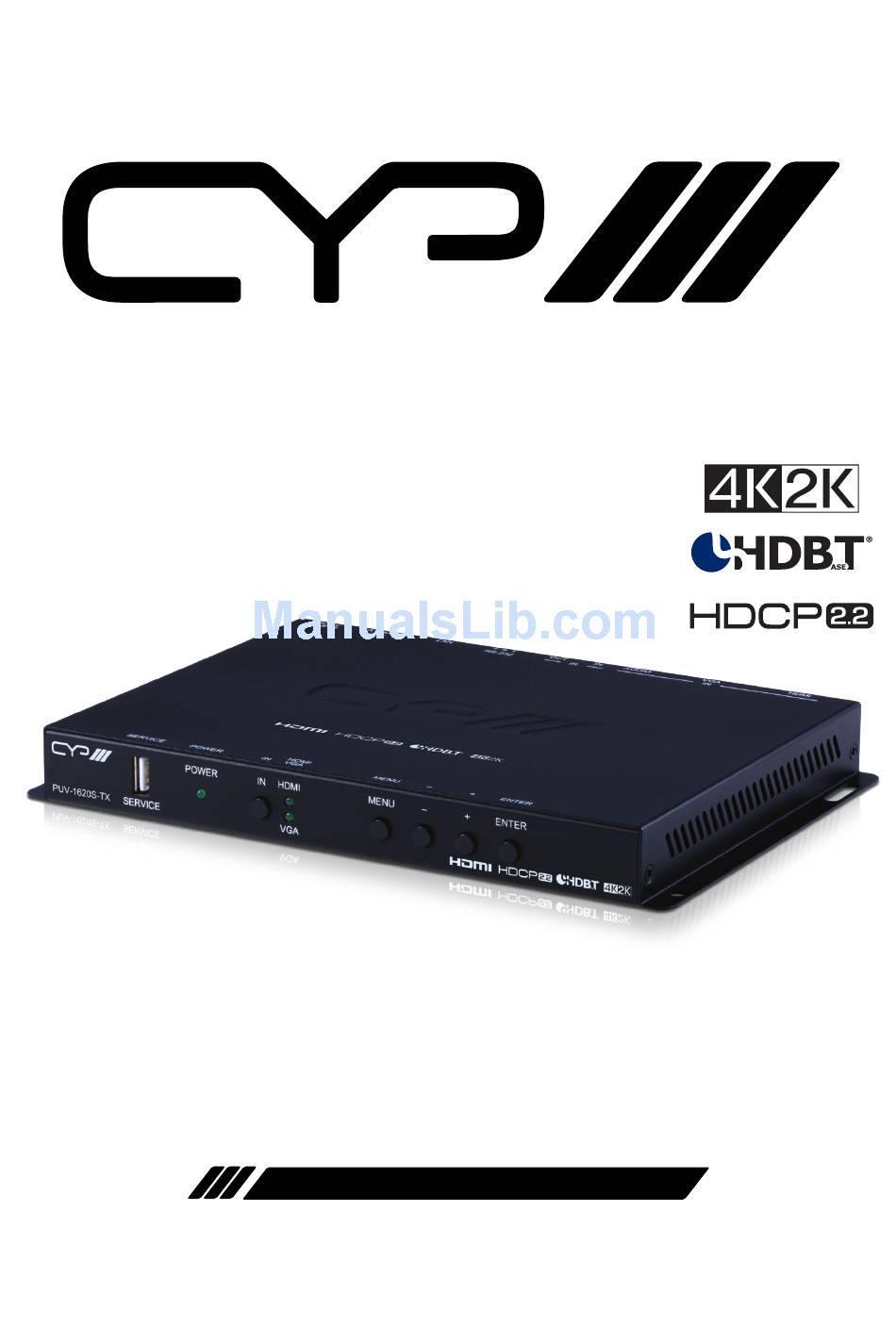

- Page 1 PUV-1620S-TX 4K UHD HDMI / VGA to HDBaseT Transmitter Switcher/ Scaler, IR, Audio Embedding, RS-232, LAN, PoH OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pinouts ........10 6.4 OSD Menu ..........10 7. -
Page 6: Introduction
1. INTRODUCTION This Transmitter is designed to scale and convert HDMI and PC video, with optional analogue audio embedding, for extension over long distances to standard HDBaseT Receivers. The HDMI input supports resolutions up to 4K@60Hz and the VGA input supports resolutions up to 1080p60/ WUXGA (RB). -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI or VGA source equipment such as media players, video game consoles, PCs or set-top boxes. A compatible HDBaseT receiver with 48V PoH support is strongly recommended. The use of “Premium High Speed HDMI” cables is highly recommended. -
Page 8: Operation Controls And Functions
6.1 Front Panel POWER HDMI MENU ENTER PUV-1620S-TX SERVICE SERVICE: This is reserved for firmware update use only. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. IN Button & LEDs: Press this button to switch between the HDMI and VGA inputs. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI AUDIO RS-232 CAT5e/6/7 OUT HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. DVI sources are supported with the use of an HDMI to DVI adapter. VGA IN: Connect to VGA source equipment such as a PC or laptop. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Extender Infrared Power Ground IR Blaster Power Infrared 6.4 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. - Page 11 PICTURE LEVEL 2 LEVEL 3 LEVEL 4 0~100 (50) Brightness 0~100 (50) Contrast 0~100 (50) Finetune 0~100 (50) Saturation 0~100 (0) Sharpness Noise Reduction Middle High Auto 0~100 (50) Colour 0~100 (50) Green 0~100 (50) Blue 1) Brightness: Provides control over the overall brightness of the scaled output image.
- Page 12 INPUT LEVEL 2 LEVEL 3 HDMI Video Source EMBEDDED Audio Source Automatic Analogue 1) Video Source: Selects the input source to display. 2) Audio Source: Provides control over the audio source to use with the HDMI input. Selecting “Embedded” passes the HDMI source’s audio without modification.
- Page 13 OUTPUT LEVEL 2 LEVEL 3 Size Overscan Full BEST FIT Pan Scan Letterbox Underscan Follow In BYPASS 4K In -> 4K Out Scaler Resolution NATIVE 640×480 60 800×600 60 1024×768 60 1280×768 60 1360×768 60 1280×720 60 1280×800 60 1280×1024 60 1440×900 60 1400×1050 60 1680×1050 60...
- Page 14 OUTPUT LEVEL 2 LEVEL 3 1280×720p 50 1280×720p 60 1920×1080p 24 1920×1080p 25 1920×1080p 30 1920×1080p 50 1920×1080p 60 4K2K 24 4K2K 25 4K2K 30 4K2K (4:2:0) 50 4K2K (4:2:0) 60 1) Size: Selects the aspect ratio to use when outputting the source. “Full” stretches the source to fill the output resolution, regardless of the original aspect ratio, while “Best Fit”...
- Page 15 LEVEL 2 LEVEL 3 0~100 (50) H-Position 0~100 (50) V-Position Timer Timer 0~100 (100) Transparent Display INFO 1) H-Position: Set the horizontal position of the OSD menu. 2) V-Position: Set the vertical position of the OSD menu. 3) Timer: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
- Page 16 Selecting “Info” will show the information display for a few seconds before automatically turning it off after a source or resolution change. MISCELLANY LEVEL 2 LEVEL 3 LEVEL 4 HDCP On Input FOLLOW OUTPUT HDCP On Output Follow Input DISABLE Auto Sync Off Fast Slow...
- Page 17 5) EDID Manage (HDMI EDID): Select the EDID to use with the HDMI input. Selecting “Output” will use the EDID copied from the currently connected receiver. FACTORY LEVEL 2 LEVEL 3 Reset 1) Reset: Selecting YES will reset all of the unit’s settings back to their factory defaults.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop Media Player HDMI Stereo Input Input Input 1.5m 60° 60° IR In & Out DC 5V HDMI AUDIO RS-232 CAT5e/6/7 OUT Cat.5e/6/7 Cable RS-232 Power RS-232 Equipped Supply PC/Laptop Network 60° Switch HDMI Output RS-232 RS-232 Controlled 60°... -
Page 19: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI 1×VGA 1×Stereo (3.5mm) Output Port 1×HDBaseT (RJ45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×LAN (RJ45) IR Frequency 30–50kHz (30–60kHz under ideal conditions) Baud Rate Up to 115200bps Power Supply... -
Page 20: Video Specifications
8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Input Output 640×480 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1280×768 60, 75, 85 1360×768 ... -
Page 21: Audio Specifications
HDMI HDBaseT Supported TV Resolutions (Hz) Input Input Output 3840×2160p (YUV 50, 60 4:2:0) 3840×2160p 50, 60 4096×2160p 24, 25, 30 4096×2160p (YUV 50, 60 4:2:0) 4096×2160p 50, 60 ... -
Page 22: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Cat. Cable Length 1080p Cat.5e 100m Cat.6 100m Cat.7 100m 100m Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) - 4K@24, 25, 30Hz &... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Infrared... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
