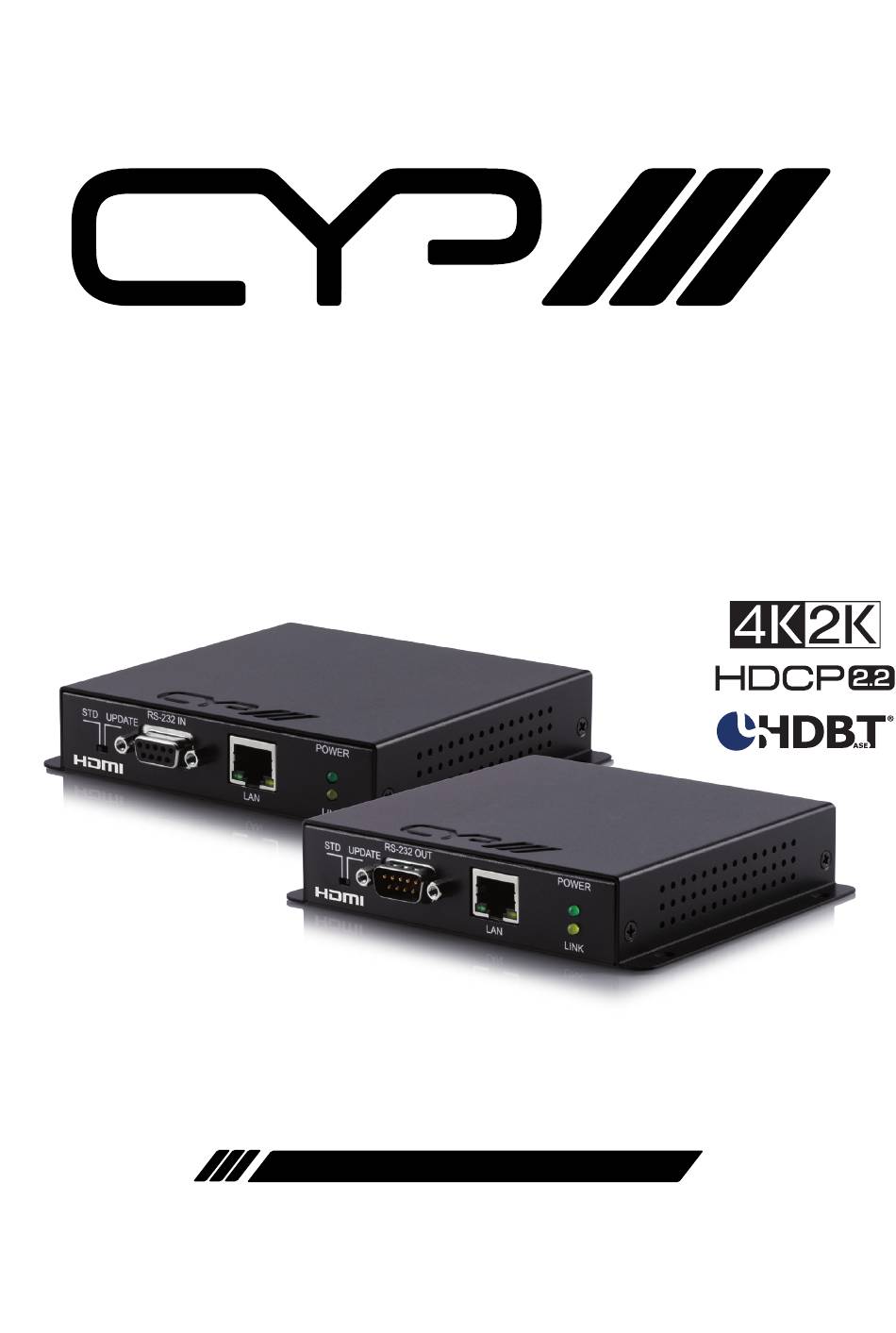

  • Page 1 PUV-1510-KIT HDBaseT1 Transmitter & Receiver Kit with LAN & PoH OPERATION MANUAL...
  • Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3. IR Cable Pin Assignment ......10 6.4.
  • Page 6: Introduction

    1. INTRODUCTION The PUV-1510-KIT Transmitter and Receiver Kit enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments.
  • Page 7: Features

    5. FEATURES  HDMI with 3D, 4K2K support, HDMI & DVI Compliant  Supports CEC bypass  Simultaneous reception of uncompressed data over a single 100m/328ft CAT5e/6/7 cable  5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232)  Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9  Supports standard 48V from Transmitter (PSE) to Receiver (PD)  Installation Friendly  Supports HDMI Output cable distance up to 5m at 4K2K@50/60 &...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel BLASTER HDMI IN DC 48V EXTENDER DC 48V: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet. IR1 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission.
  • Page 9: Rear Panel

    6.2 Transmitter Rear Panel RS-232 IN POWER STD UPDATE LINK STD/UPDATE Switch: This switch is reserved for factory use only. RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands. LAN: Connect to an internet or network system. POWER LED: This LED will illuminate when the device is connected to a power supply.
  • Page 10: Receiver Front Panel

    6.3 Receiver Front Panel BLASTER HDMI OUT EXTENDER IR2 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. IR1 EXTENDER: Connect to the supplied IR Extender cables for IR signal reception.
  • Page 11: Receiver Rear Panel

    6.4 Receiver Rear Panel RS-232 OUT POWER STD UPDATE LINK STD/UPDATE Switch: This switch is reserved for factory use only. RS-232 OUT: Connect to the device that is to be controlled (via D-Sub 9-pin female cable) by RS-232 commands. LAN: Connect to a PC or Laptop to utilise the Internet or network function.
  • Page 12: Ir Cable Pin Assignment

    6.5. IR Cable Pin Assignment IR Extender IR Signal Power Ground 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD...
  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM DVD/Blu-ray Player IR In RS-232 Equipped PC/ Laptop HDMI Input IR Out 1.5m 60° 60° RS-232 LAN Connection RS-232 IN POWER STD UPDATE Internet LINK Connected BLASTER HDMI IN Router DC 48V EXTENDER Cat.5e/6/7 Cable Power Supply BLASTER HDMI OUT EXTENDER...
  • Page 14: Specifications

    8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Transmitter Inputs 1 x HDMI 1 x IR Extender 1 x RS-232 1 x LAN Outputs 1 x CAT5e/6/7 1 x IR Blaster Receiver Inputs 1 x CAT5e/6/7, 1 x IR Extender Outputs 1 x HDMI, 1 x RS-232, 1 X IR Blaster, 1 x LAN HDMI Resolution HD: 480i~4K2K@24/25/30/50/60 &...
  • Page 15 Power Consumption 13.5W Operating Temperature 0 °C~40 °C/32 °F ~104 °F Storage Temperature −20 °C~60 °C/−4 °F~140 °F Relative Humidity 20~90 % RH (non-condensing)
  • Page 16: Cat5E/6/7 Cable Specification

    8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (HD Video) (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock).
  • Page 17: Timing Support Chart

    8.2 Timing Support Chart INPUT OUTPUT 640x480@60/72/75/85   800x600@56/60/72/75/85   1024x768@60/70/75/85   1280x720@60   1280x1024@60   1600x1200@60   1920x1200@60RB   3840x2160p@24/25/30   4096x2160p@24   4096x2160p@50/60(YUV_420)   480I/576I   480P/576P ...
  • Page 18: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment...
  • Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
