- Page 1 PUV-1510TXWP/RXWP HDMI over CAT5e/6/7 Wallplate Transmitter with 48V PoH OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter Front Panel ......8 6.2 Transmitter Rear Panel ......9 6.3 Receiver Front Panel .......10 6.4 Receiver Rear Panel .........11 6.5 IR Cable Pin Assignments .....12 6.6 D-Sub 9-Pin Assignment .......12... -
Page 6: Introduction
1. INTRODUCTION This HDMI over single Cat5e/6/7 Transmitter and Receiver set can send uncompressed, high resolution, video/audio over a single cable up to a distance of 100 metres. In addition to the audio and video capabilities, it can also bi-directionally transmit RS-232 and IR control signals as well as extending your local LAN to the display device UK 2 gang design allowing install on AC outlet. -
Page 7: Features
5. FEATURES HDMI with 3D & 4K support. DVI signal compliant Supports CEC bypass Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat5e/6/7 cable 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232) Supports resolutions up to 4K@50/60Hz (YUV 4:2:0) and 21:9 aspect ratio Supports standard 48V PoE from Transmitter (PSE) to Receiver (PD) -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel POWER LINK RS232 IN UPDATE OUT 1 IN 2 HDMI IN PUV-1510TXWP POWER: This LED will illuminate when the device is connected to a power supply. LINK: This LED will illuminate solid when both Transmitter and Receiver are connected and communicating with each other properly. -
Page 9: Transmitter Rear Panel
6.2 Transmitter Rear Panel CAT5e/6/7 OUT CAT5e/6/7 OUT: Connects to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals includes power. DC 48V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Receiver Front Panel

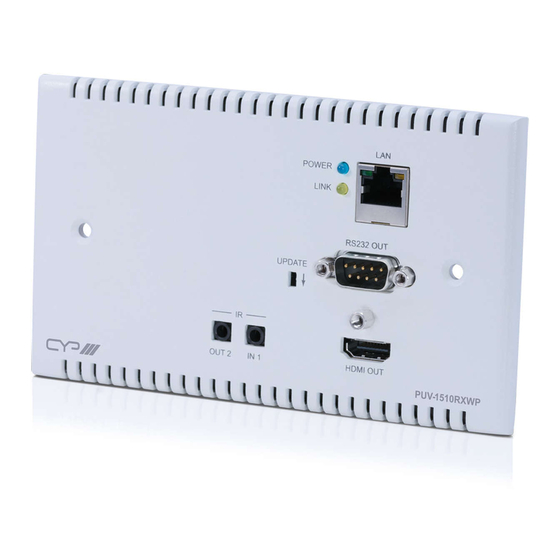

UPDATE OUT 2 IN 1 HDMI OUT PUV-1510RXWP POWER: This LED will illuminate when the device is receiving power via PoE (Power over Ethernet). LINK: This LED will illuminate solid when both Transmitter and Receiver are connected and communicating with each other properly. -
Page 11: Receiver Rear Panel
6.4 Receiver Rear Panel CAT5e/6/7 IN CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals and power. -
Page 12: Ir Cable Pin Assignments
6.5 IR Cable Pin Assignments IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Ground 6.6 D-Sub 9-Pin Assignment Define TX / RX TxD/RxD RxD/TxD... -
Page 13: Connection Diagram
RS-232 RS232 IN UPDATE OUT 1 IN 2 HDMI IN PUV-1510TXWP Power Supply CAT5e/6/7 Cable POWER RS-232 LINK RS232 OUT UPDATE OUT 2 IN 1 HDMI OUT PUV-1510RXWP 60° 60° RS-232 Controlled HDMI 1.5m Device Output IR In/Out Smart TV... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340 MHz/10.2 Gbps Transmitter Input Ports 1 x HDMI 1 x IR In 1 x RS-232 1 x LAN Output Ports 1 x CAT5e/6/7 1 x IR Out Other 1 x Update Receiver Input Ports 1 x CAT5e/6/7 1 x IR In... - Page 15 ESD Protection Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Power Supply 48 V/0.83 A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection Human Body model: ± 12kV (air-gap discharge) ± 8kV (contact discharge) Dimensions 156mm (L) x 90mm (W) x 38mm (D) Jacks Excluded 156mm (L) x 90mm (W) x 44mm (D) Jacks Included...
-
Page 16: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Type Range Pixel Clock Video Data Supported Rate Rate Video Formats CAT5E/6/7 100 M ≤225 MHZ ≤5.3 GBPS UP TO 1080P, (HD 60 HZ, 36-BIT, VIDEO) 3D (DATA RATES LOWER THAN 5.3 GBPS OR BELOW 225 MHZ TMDS CLOCK). 70 M/ >225 MHZ >5.3 GBPS 4K2K, 30 HZ CAT5E/6 (ULTRA HD VIDEO VIDEO) FORMATS 100 M/CAT7... -
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Categirt 5 Cable CAT6 Categirt 6 Cable CAT7 Categirt 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Proection HDMI High Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
