PUV-1630TXWP
2x HDMI, 1x VGA over Single CAT5e/6/7
HDBaseT™ Wall Plate Transmitter
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1630TXWP and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PUV-1630TXWP

Summary of Contents for CYP PUV-1630TXWP

  • Page 1 PUV-1630TXWP 2x HDMI, 1x VGA over Single CAT5e/6/7 HDBaseT™ Wall Plate Transmitter OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 WebGUI Control ........11 6.4 Serial Control (Via Receiver) ....20 6.5 Telnet Control ..........20 6.6 RS-232 and Telnet Commands ....21 7.

  • Page 6: Introduction

    1. INTRODUCTION This HDBaseT Wall Plate Switch with Signal Management is an HDMI and VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with UK two-gang sized enclosures. This Transmitter can send uncompressed high-definition video/audio over a single cable up to a distance of 100 meters at 1080p@60Hz.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS  HDBaseT Wall Plate Switch (UK 2-Gang)  1×Operation Manual 4. SYSTEM REQUIREMENTS  HDMI or VGA source equipment such as media players, video game consoles, PCs, or set-top boxes.  A compatible HDBaseT Receiver is required. An HDBaseT Receiver capable of suppling 48V PoH is recommended.
  • Page 8  User activated information OSD  Supports manual input selection or automatic input selection with hot plug detection  Basic signal event automation (via RS-232 or CEC w/ compatible Receiver)  Front panel LEDs indicate HDCP mode, input source, link state, and power  Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver...

  • Page 9: Operation Controls And Functions

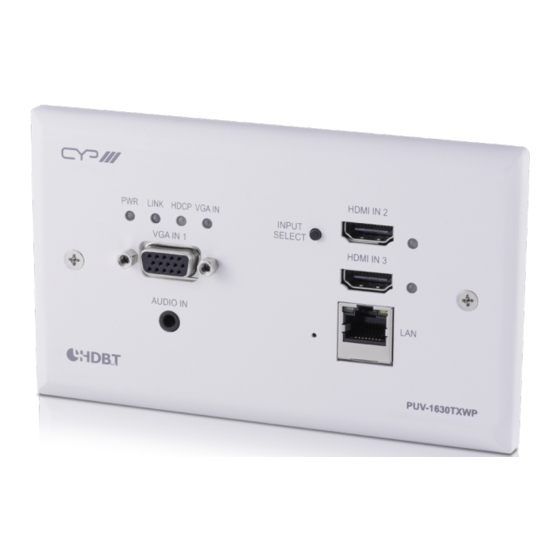

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 2 3 4 PUV-1630TXWP-EU PWR LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate when the unit is on, receiving power, and has successfully linked to a compatible Receiver.

  • Page 10: Rear Panel

    FAC. RESET Pinhole: Press and hold for 5 seconds to reset the unit to its factory defaults. LAN Port: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection and to control the unit.

  • Page 11: Webgui Control

    6.3 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 12 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit (Switch, Automation, EDID Settings and System Settings) are controllable via the built in WebGUI.
  • Page 13 6.3.1 Switch Tab This tab provides video/audio routing control as well as control over HDCP behavior, freerun settings, and naming of the Inputs and Output. To assign a new video route, please click the Output button and then click on the button of the preferred Input port to route.
  • Page 14 ■ Auto Mode: Enable or disable the auto input switching mode. ■ Audio Route: Control the audio used when the HDMI input is active. Selecting “Bypass” will use the HDMI signal’s normal audio. Selecting “External” will use the analogue stereo audio. ■...
  • Page 15 6.3.2 Automation Tab The Automation tab provides control over the unit’s automatic control command broadcast behavior when the specified system Automation Events occur. Automation commands may be sent to 3rd party devices via standard CEC, or customizable RS-232. Note: Sending RS-232 commands requires the use of a compatible HDBaseT Receiver with an RS-232 port.
  • Page 16 ■ Wait: Set the length of time, in seconds, to wait after this CEC Automation Event has been activated before ANY other Automation Event can be detected. ■ CEC Command: Set the CEC command to send when the specified Automation Event is activated. Clicking the “Test” button will send the command immediately.
  • Page 17 6.3.3 EDID Settings Tab This tab provides control over the EDID behavior of the unit. There are six internal EDIDs, three customer uploaded EDIDs, and one sink sourced EDID that can be assigned to each input port individually. The sink EDID and Customer EDIDs are also available for download to the connected PC.
  • Page 18 Inputs simultaneously. ■ Appoint:Selecting this allows for a different EDID to be assigned to each Input. 4) Set EDID Input Content: This section provides a way to set the EDID to use with the selected Input. ■ IN 1/IN 2/IN 3/All Input: Click the appropriate buttons to select the preferred Input(s) and open the EDID Source table for assigning an EDID.
  • Page 19 6.3.4 Systems Settings Tab This tab provides access to control a number of system configuration controls including displaying the unit’s serial number, modifying the web access privileges, changing the IP configuration, performing a factory reset, rebooting the system, and updating the firmware. 1) Serial Number: Displays the unit’s serial number.

  • Page 20: Serial Control (Via Receiver)

    “Choose File” button to open the file selection window and then select the firmware update file (*.bin format) located on your local PC. After selecting the file, click the “Upgrade” button to begin the firmware update process. Once the process completes the unit will automatically reboot.

  • Page 21: Rs-232 And Telnet Commands

    6.6 RS-232 and Telnet Commands COMMAND Description and Parameters help  Show all available commands. ?  Show all available commands. get fw ver  Show the unit’s firmware version. get model name  Show the unit’s model name. get model type  Show the unit’s product type.
  • Page 22 COMMAND Description and Parameters get ipconfig  Show the current IP address details. set ipaddr N1  Set the static IP Address. N1 = X.X.X.X [X = 0 ~ 255] get ipaddr  Show the current IP address. set netmask N1  Set the netmask address.
  • Page 23 COMMAND Description and Parameters set out A name N1  Set the name of the output. N1 = {Name} [16 characters max] get out A name  Show the output’s current name. set out A route N1  Switch the output routing source to input N1. N1 = 1 ~ 3 [Input number] get out A route ...
  • Page 24 COMMAND Description and Parameters set out auto mode N1  Enable or disable automatic source switching. Available values for N1: [Auto switch disabled] [Auto switch enabled] get out auto mode  Show the current auto switch mode state. get in port number  Show the number of inputs on the unit.
  • Page 25 COMMAND Description and Parameters set all in edid mode N1  Enable or disable using the same EDID for all inputs. Available values for N1: [All mode] [Appoint mode] get all in edid mode  Show the current state of the EDID assignment mode. set all in edid N1 ...
  • Page 26 COMMAND Description and Parameters set in N1 edid N2  Assign EDID N2 to input N1 in “Appoint mode”. N1 = 1 ~ 3 [Input number] Available values for N1: [8-bit/1080p/2CH LPCM] [8-bit/1080p/MCH] [12-bit/4K@30/2CH LPCM] [12-bit/4K@30/MCH] [12-bit/4K@60/2CH LPCM] [12-bit/4K@60/MCH] [User 1] [User 2] [User 3] [Sink A]...
  • Page 27 COMMAND Description and Parameters set in N1 hdcp mode N2  Set the HDCP mode to use with the HDMI input N1. N1 = 2 ~ 3 [HDMI input number] Available values for N2: [HDCP disabled] [Follow source] [Follow display] get in N1 hdcp mode ...
  • Page 28 COMMAND Description and Parameters set freerun A type N1  Set the colour to display when freerun is enabled and active. Available values for N1: [Black] [Red] [Blue] [Color bar] set freerun A type  Show the current freerun display colour. get freerun list ...
  • Page 29 COMMAND Description and Parameters get automation event N1 uart  Show the current state of the specified Automation Event's RS-232 response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 uart delay N2 sec  Set the delay time that the specified Automation Event must continue to be true before sending the defined RS-232 command.
  • Page 30 COMMAND Description and Parameters set automation event N1 uart wait N2 sec  Set the length of time to wait after an Automation Event's RS-232 response has been activated before ANY other Automation Event can be detected. Available values for N1: [Power on] [Out A source active] [Out A source lost]...
  • Page 31 COMMAND Description and Parameters get automation event N1 uart command  Show the RS-232 command string to be sent when the specified Automation Event is activated. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 cec N2 ...
  • Page 32 COMMAND Description and Parameters set automation event N1 cec delay N2 sec  Set the delay time that the specified Automation Event must continue to be true before sending the defined CEC command. Available values for N1: [Power on] [Out A source active] [Out A source lost] N2 = 1 ~ 300 [Delay in seconds]...
  • Page 33 COMMAND Description and Parameters get automation event N1 cec wait  Show the wait time for the specified Automation Event's CEC response. Available values for N1: [Power on] [Out A source active] [Out A source lost] set automation event N1 cec command N2  Set the CEC command to send when the specified Automation Event is activated.
  • Page 34 COMMAND Description and Parameters set uart 1 mode N1  Set the RS-232 operation mode of the unit. Available values for N1: [Console Commands] [Control] get uart 1 mode  Show the current RS-232 operation mode. set uart 1 baudrate N1  Set the RS-232 baud rate.
  • Page 35 COMMAND Description and Parameters set uart 1 data bit N1  Set the number of RS-232 data bits to use. N1 = 5 ~ 8 [Data bits] get uart 1 data bit  Show the current RS-232 data bits setting. set uart 1 parity N1 ...

  • Page 36: Connection Diagram

    7. CONNECTION DIAGRAM Media Player Game Console HDMI HDMI Input Input Stereo Input Input HDMI IN 2 LINK HDCP VGA IN INPUT SELECT VGA IN 1 HDMI IN 3 AUDIO IN PUV-1630TXWP Cat.5e/6/7 Network Switch Cable Power Supply HDMI Output Smart TV...

  • Page 37: Specifications

    8. SPECIFICATIONS 8.1 Basic Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 2×HDMI 1×VGA (HD-15) 1×Analogue Stereo (3.5mm) Output Port 1×HDBaseT (RJ-45) Pass-through/Control 1×LAN (RJ-45) Port Service Port 1×USB (Type-A) Baud Rate Up to 115200 Power Supply 48V PoH or 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model...

  • Page 38: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBaseT 720×400p@70/85    640×480p@60/72/75/85    720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85    848×480p@60  ...
  • Page 39 Input Output Supported Resolutions (Hz) HDMI HDBaseT 1920×1080p@50/60    1920×1200p@60RB    2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24/25/30, HDR10 ...

  • Page 40: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced...

  • Page 41: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input Ethernet Cable Cat.5e/6 100m  Cat.6a/7 100m 100m  1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (UHD Video) - 4K@24/25/30Hz &...

  • Page 42: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Video & Audio Supported IR Pass-through Unsupported RS-232 Pass-through Unsupported Accept power from Receiver Supported Send power to Receiver Unsupported LAN Pass-through Supported 9. ACRONYMS ACRONYM COMPLETE TERM Audio/Video Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6a...
  • Page 43 ACRONYM COMPLETE TERM HDTV High-Definition Television Internet Protocol Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation On-Screen Display Personal Computer Powered Device Power over HDBaseT Power Sourcing Equipment Transmission Control Protocol Ultra-High-Definition UHD+ Ultra-High-Definition Plus UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced...
  • Page 44 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate, Nottingham NG6 8WB Tel: +44 (0)115 977 0075 Email: info@cie-group.com www.cie-group.com v1.00...
