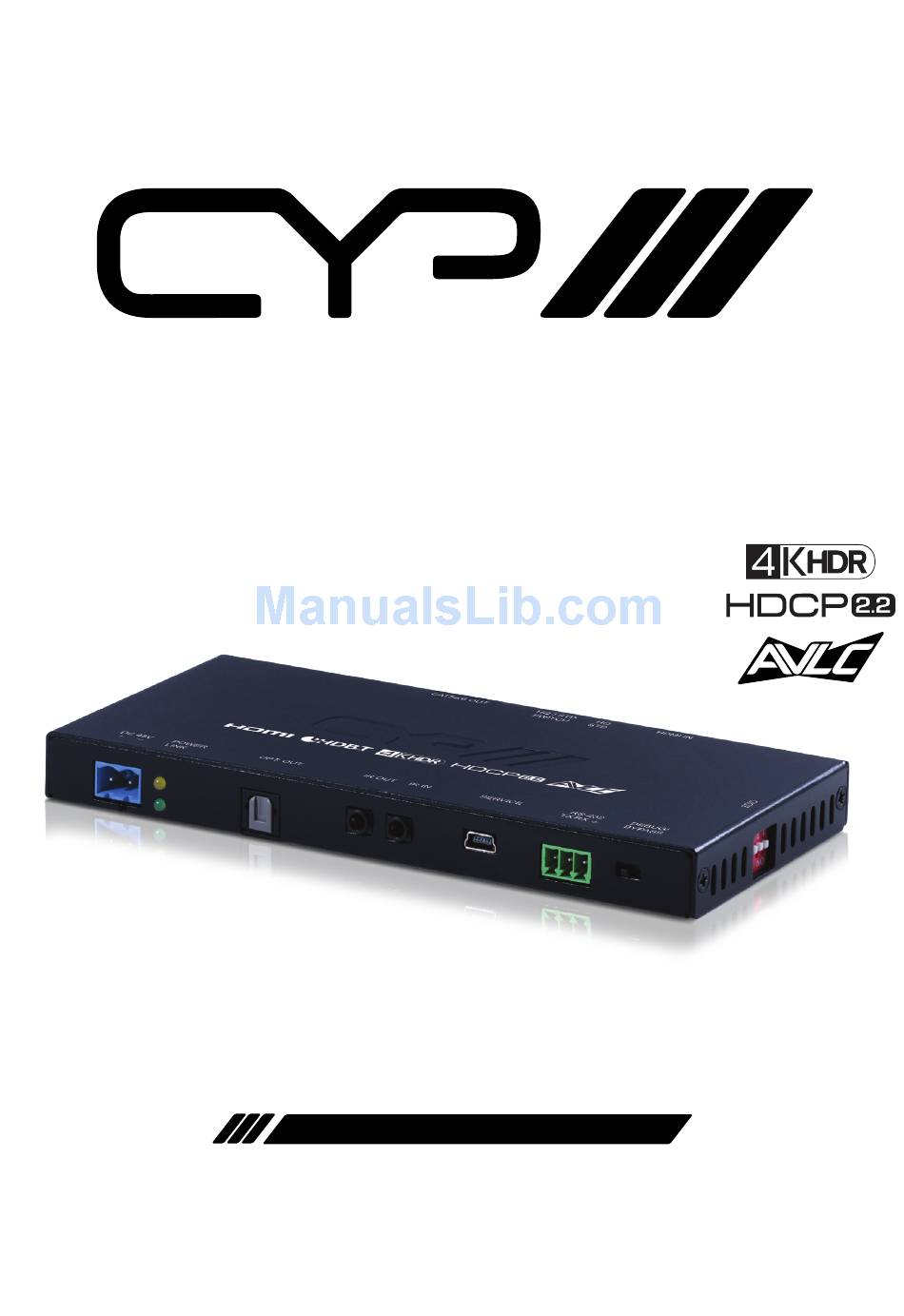

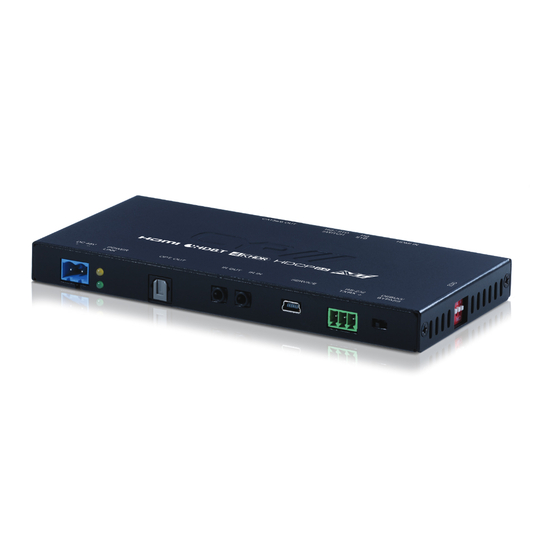

- Page 1 PUV-1730PLTX-AVLC HDBaseT™ HDR Transmitter (70m) (4K, HDCP2.2, PoH, OAR, 18Gbps) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 Right Panel ..........10 6.4 IR Cable Pinouts ........11 6.5 RS-232 Control ..........12 6.6 RS-232 Commands ........13 6.7 EDID Management ........15... -
Page 6: Introduction
1. INTRODUCTION This HDMI over single Cat.5e/6/7 Transmitter is a great solution for extending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. -
Page 7: System Requirements
1×Rackmount Ears (Set of 2) 1×Operation Manual 4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. A compatible HDBaseT Receiver with AVLC and 48V PoH support is recommended. The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended. - Page 8 audio from a compatible Receiver to the Transmitter Comprehensive EDID management support including 6 pre-defined EDIDs, 9 user EDIDs and an EDID bypass mode PC-based EDID management software allows for the uploading of customised user EDIDs via USB Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players Performs TMDS re-clocking and signal re-generation for improved signal integrity...
-
Page 9: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 48V POWER OPT. OUT IR EXTENDER 1 IR BLASTER 2 SERVICE RS-232 CONSOLE/ LINK BYPASS DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. Note: Please be sure to follow the polarity labels on the unit and the adapter’s wires. -
Page 10: Rear Panel
the Tx and Rx pins might need to be reversed. CONSOLE/BYPASS: This switch controls the operational mode of the RS-232 port. When set to “Bypass”, RS-232 signals will be passed to the connected Receiver. When set to “Console” the RS-232 port may be used to send commands directly to the Transmitter. -
Page 11: Ir Cable Pinouts
EDID EDID: The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. The three modes are “Internal EDID”, “User EDID”... -
Page 12: Rs-232 Control
6.5 RS-232 Control Terminal Block Controlling PC Serial Port Settings Pin Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None... -
Page 13: Rs-232 Commands
6.6 RS-232 Commands COMMAND Description and Parameters HELP Show the full command list. ? Show the full command list. GET FW VER Show the unit’s current firmware version. GET MODEL NAME Show the unit’s model name. GET MODEL TYPE ... - Page 14 COMMAND Description and Parameters SET TRANSCEIVER COMPRESS RATE N1 Set the AVLC compression mode to use. Available values for N1: [High quality] [Standard quality] GET TRANSCEIVER COMPRESS RATE Show the current AVLC compression mode. Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.
-
Page 15: Edid Management
6.7 EDID Management 6.7.1 EDID Dipswitch Settings The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. - Page 16 Detailed EDID information: Internal EDID (1–6) There are a total of 6 built-in internal EDID slots covering many standard display configurations. These EDIDs can’t be modified. They are defined as follows: EDID Video Content Audio Content FHD/2 channel 1080p@60Hz, 8-bit LPCM 2.0 (148MHz) FHD/Multi-channel 1080p@60Hz, 8-bit...
- Page 17 6.7.2 EDID Management Tool This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use.
- Page 18 Save/Upload/Analysis: EDIDs may be saved, uploaded or analysed: - Save: Any EDID from the unit or a connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save” icon.
- Page 19 B. EDID Creator Tab Select: Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a *.bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyser’s edit option.
- Page 20 Once the user is finished editing or creating an EDID it can be saved to a *.bin file locally or uploaded directly to the unit using the “Save” “Upload” icons respectively. C. System Tab Configuration & Firmware: Select the System tab to edit the unit’s description (select the “Rename”...
-
Page 21: Connection Diagram
7. CONNECTION DIAGRAM Game Console IR In & Out HDMI Input 1.5m RS-232 Equipped 60° PC/Laptop AV Receiver Optical Audio 60° Retun (OAR) RS-232 Power Supply Router Cat.5e/6/7 Cable RS-232 RS-232 Controlled 60° Device Optical Audio HDMI 60° Return (OAR) Output 1.5m IR In &... -
Page 22: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Port 1×HDMI Output Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) Control Port 1×USB (Mini-B) Pass-through/Control Port 1×RS-232 (3-pin Terminal Block) IR Frequency 30–50kHz (30–60kHz under ideal conditions) Baud Rate... -
Page 23: Video Specifications
8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... -
Page 24: Audio Specifications
HDMI HDBaseT Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ... -
Page 25: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Cat. Cable Length 1080p Cat.5e Cat.6 Cat.7 Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) - 4K@24/25/30Hz &... -
Page 26: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range... - Page 28 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
