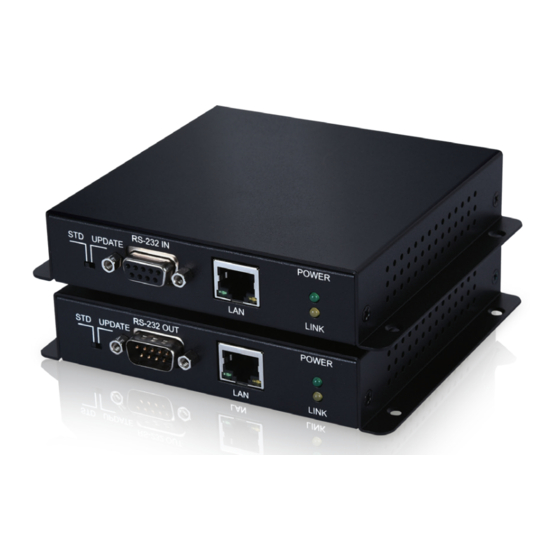

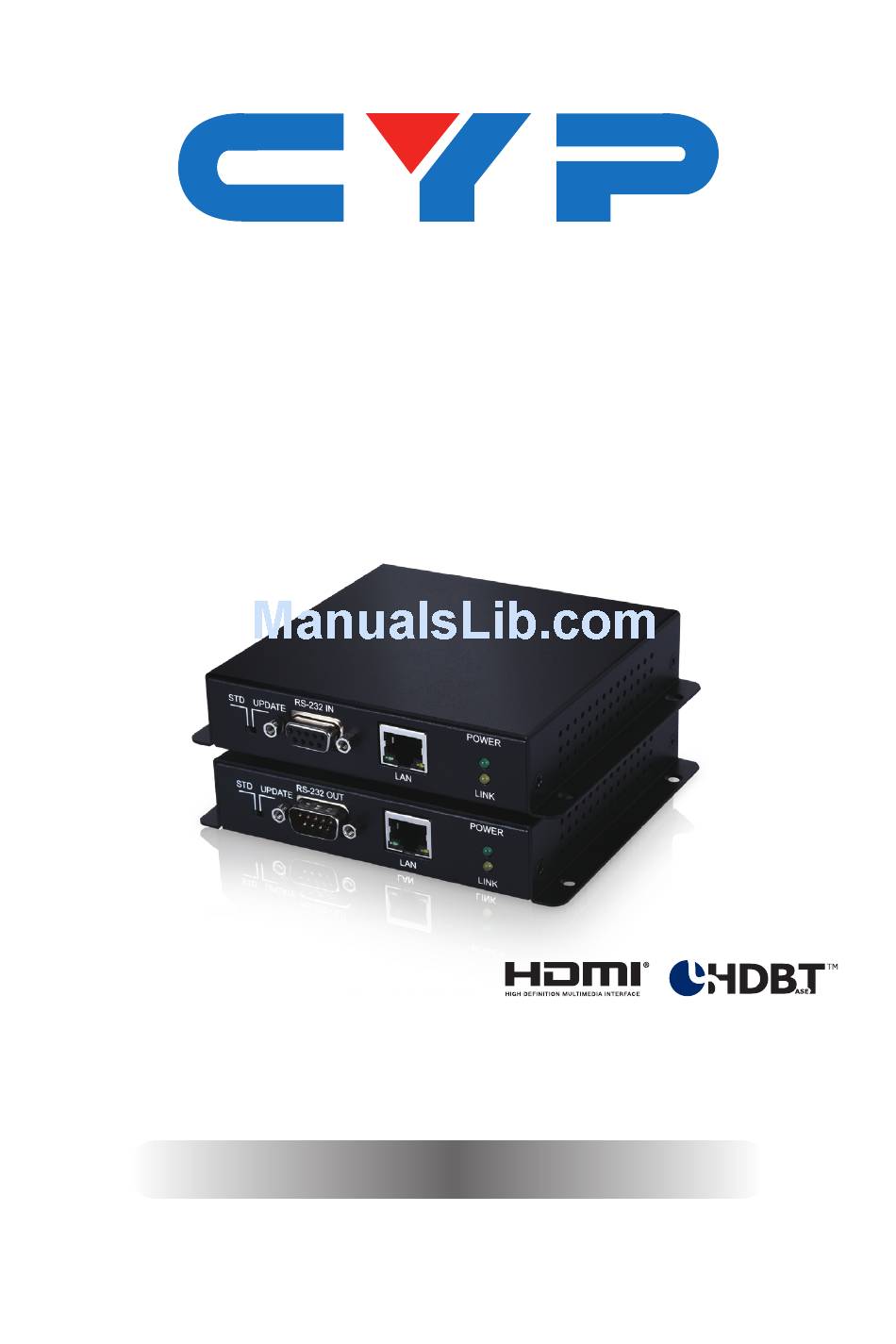

- Page 1 CH-2527TX & CH-2527RX HDMI over HDBaseT Transmitter (PD) and Receiver (PSE) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Transmitter's Front and Rear Panels ..3 6.2 Receiver's Front and Rear Panels .... 4 6.3 IR Cable Pin Assignments ...... -
Page 6: Introduction
1. INTRODUCTION This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connections. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI input source equipment such as a Blu-ray player, game console or set-top box. • HDMI output equipment such as an HDTV, projector or AV receiver. • Industry standard Cat.6 or Cat.6a cables are recommended. • The use of “Premium High Speed HDMI” cables is recommended. 5. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front and Rear Panels RS-232 IN POWER STD UPDATE BLASTER HDMI IN LINK EXTENDER STD/UPDATE: This switch is reserved for factory use only. RS-232 IN: Connect to a PC, laptop or other serial control device for the extension of RS-232 signals. -
Page 9: Receiver's Front And Rear Panels
6.2 Receiver's Front and Rear Panels RS-232 OUT POWER STD UPDATE BLASTER HDMI OUT LINK DC 48V EXTENDER STD/UPDATE: This switch is reserved for factory use only. RS-232 OUT: Connect to a serial controllable device for the extension of RS-232 signals. LAN: Connect to an Ethernet device or to your local network as appropriate. -
Page 10: Ir Cable Pin Assignments
6.3 IR Cable Pin Assignments IR Extender IR Signal Power Ground IR Blaster Power IR Signal 6.4 RS-232 Protocol Definition Definition ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity Bits: None Stop Bits: 1 Flow Control: None... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI IR In & Out Input Router 1.5m 60° 60° RS-232 RS-232 Equipped PC/Laptop RS-232 IN POWER STD UPDATE LINK BLASTER HDMI IN EXTENDER Cat.5e/6/7 Cable Power Supply BLASTER HDMI OUT DC 48V EXTENDER RS-232 OUT POWER STD UPDATE LINK... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications Video Bandwidth 340Hz/10.2Gbps Input Port 1×HDMI Output Port 1×Cat.5e/6/7 Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] 1×LAN [RJ45] Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) CAT5e/6 Cable Length... -
Page 13: Receiver's Technical Specifications
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 4.71W 8.2 Receiver's Technical Specifications Video Bandwidth 340Hz/10.2Gbps Input Port 1×Cat.5e/6/7 Output Port 1×HDMI Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] 1×LAN [RJ45] Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit) -
Page 14: Video Specifications
Weight 366g Chassis Material Metal Silkscreen Color Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 8.74W 8.3 Video Specifications Supported Resolutions (Hz) Input Output 640×480@60/72/75/85 ... -
Page 15: Cable Specifications
8.4 Cable Specifications Cable Type Cable Length Supported Video Format Cat.5e/6/7 100 meters Full HD video: • Up to 1080p@60Hz, 12-bit color • Data rates lower than 5.3Gbps or below 225MHz TMDS clock Cat.7 100 meters Ultra HD video: Cat.5e/6 70 meters •... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
