Summary of Contents for CYP PUV-C3050TX-UA

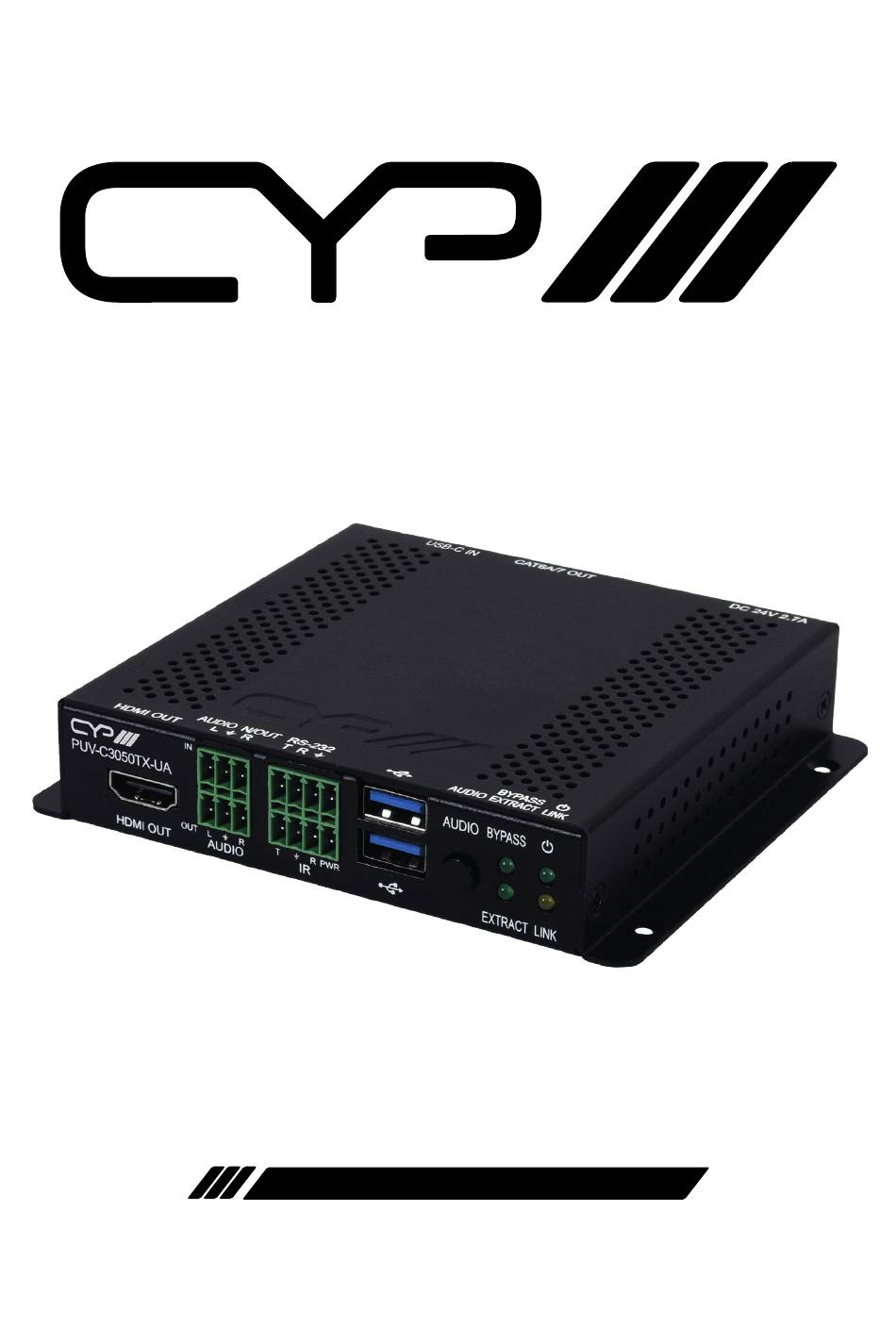

- Page 1 PUV-C3050TX-UA USB-C over HDBaseT Transmitter with USB KVM OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ............3 6.2 Rear Panel ...............4 6.3 IR Cable Pinouts ...........5 6.4 Serial Pinout ............5 6.5 Audio Pinouts............5 7. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD USB-C over HDBaseT transmitter uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps, 4K@60Hz 4:4:4) video signals with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 3.0. -
Page 7: Features
5. FEATURES USB-C (USB 3.0) video compatible HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) 1 USB-C input 1 HDBaseT and 1 HDMI output Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video output over both HDMI and HDBaseT... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO BYPASS PUV-C3050TX-UA R PWR EXTRACT LINK HDMI OUT AUDIO HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. AUDIO IN 3-pin Terminal Block: Connect to the analogue audio output of a device such as a media player or game console using a 3-pin adapter cable. -
Page 9: Rear Panel
AUDIO Button: Press this button to toggle the transmitter’s analogue audio out stream source between the receiver’s analogue audio input (bypass) and the USB-C input’s audio (extract). Note: Audio extraction is only available with LPCM 2.0 sources. Pressing this will also change the setting on compatible receivers. BYPASS &... -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster + IR Extender 4-pin Terminal Block 3.3V 6.4 Serial Pinout 4-pin Terminal Block 6.5 Audio Pinouts Stereo Audio Input Stereo Audio Output 3-pin Terminal Block 3-pin Terminal Block RIGHT RIGHT LEFT LEFT... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Tower PC Local Monitor 60° 1.5m 60° RS-232 IR Input & Output HDMI Output AUDIO BYPASS PUV-C3050TX-UA R PWR Power HDMI OUT AUDIO EXTRACT LINK Supply USB-C IN DC 24V 2.7A CAT6A/7 OUT IR Input & AUDIO BYPASS... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 32.40Gbps (DisplayPort 1.4a compliant) HDBaseT Bandwidth 16Gbps Input Ports 1×USB 3.0 (Type-C) 1×Analog Stereo (3-pin Terminal Block) Output Ports 1×HDMI (Type-A) 1×HDBaseT (RJ-45) 1×Analog Stereo (3-pin Terminal Block) Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A) -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) USB-C HDMI HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 14 Input Output Supported Resolutions (Hz) USB-C HDMI HDBT 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) ...
-
Page 15: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio USB-C Input / HDMI & HDBaseT Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 90.2kΩ... -
Page 16: Cable Specifications
8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Output USB-C Cable USB-C Input Ethernet Cable Cat.5e/6 Cat.6A/7 Bandwidth Category Examples: HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps 4K UHD Video - 4K@24/25/30Hz (8-bit colour) &... -
Page 17: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) 8K UHD 8K Ultra-High-Definition (48Gbps max, without DSC) 8K UHD 8K Ultra-High-Definition (48Gbps max, with DSC) Analogue-to-Digital Converter ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6... - Page 19 ACRONYM COMPLETE TERM LPCM Linear Pulse-Code Modulation Megahertz Powered Device Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array Ω...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
