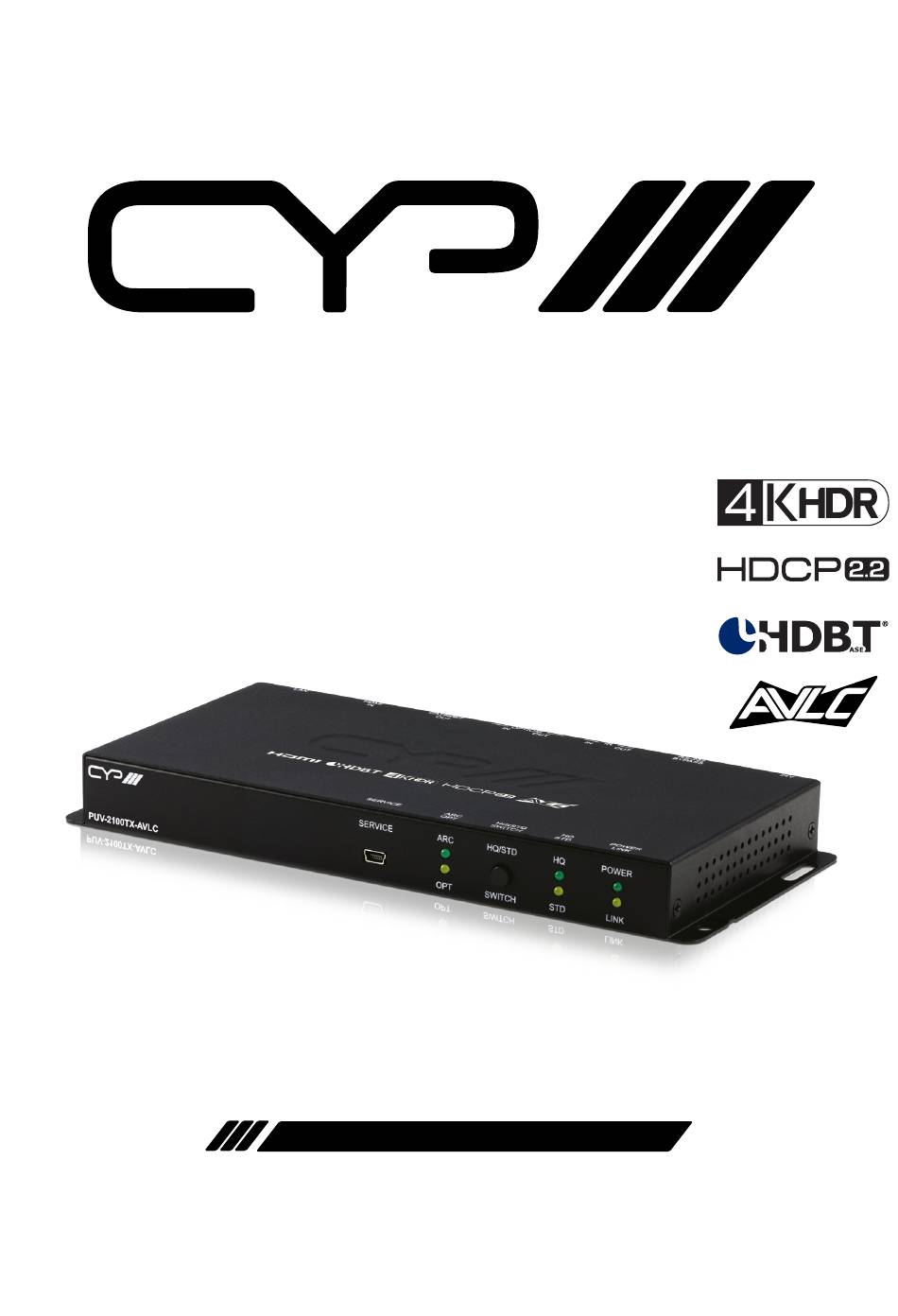

- Page 1 PUV-2100TX-AVLC HDBaseT™ 4K/HDR Transmitter (100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 IR Cable Pinouts ........11 6.4 RS-232 Bypass Pinout ......11 6.5 Serial Control (Via USB Port) ....11 6.6 Serial Commands (Via USB Port) ..12 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Transmitter provides for the extension of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. An HDBaseT 2.0 Receiver equipped with AVLC and 48V PoH (PD) support is strongly recommended. The use of “Premium High Speed HDMI” cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 8: Features
5. FEATURES HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Supports Deep Colour input and output up to 12-bit Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output Supports CEC bypass HDBaseT output transmits video, audio and data over a single... -
Page 9: Operation Controls And Functions

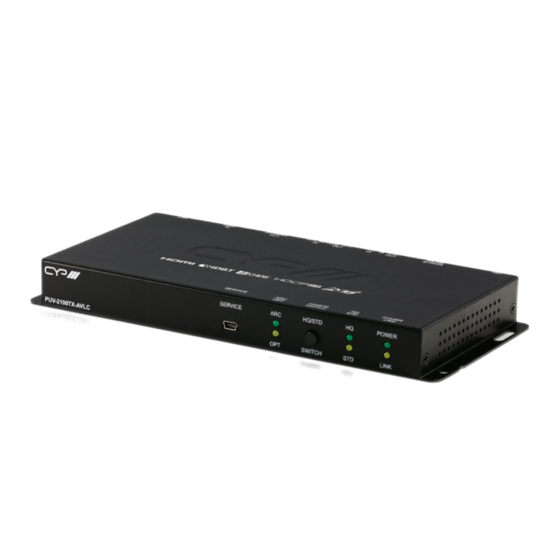

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SERVICE HQ/STD POWER PUV-2100TX-AVLC SWITCH LINK SERVICE Port: This port is reserved for firmware update and serial control use only. ARC & OPT LEDs: These LEDs illuminate to indicate if the optical output source is coming from the optical input or ARC on the connected Receiver. -
Page 10: Rear Panel
6.2 Rear Panel OPTICAL RS-232 DC 24V CAT5e/6/7 OUT HDMI IN BYPASS DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power. RS-232 BYPASS Port: Connect to a PC, laptop or serial controllable device for the extension of RS-232 signals between both ends of the HDBaseT connection. -
Page 11: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout DE-9 Female Port 6.5 Serial Control (Via USB Port) Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control... -
Page 12: Serial Commands (Via Usb Port)
6.6 Serial Commands (Via USB Port) COMMAND Description and Parameters help Show the full command list. ? Show the full command list. get fw ver Show the unit's current firmware version. get model name Show the unit's model name. get model type ... -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Powered Speakers Media Player 1.5m HDMI & 60° S/PDIF Inputs RS-232 Equipped PC/Laptop 60° S/PDIF Output RS-232 Network Switch Power Supply OPTICAL RS-232 DC 24V CAT5e/6/7 OUT HDMI IN BYPASS Cat.5e/6/7 Cable OPTICAL RS-232 CAT5e/6/7 IN HDMI OUT BYPASS RS-232 RS-232 Controlled... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDMI 1×S/PDIF (TOSLINK) Output Ports 1×HDBaseT (RJ-45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) Service/Control Port 1×USB (Mini-B) IR Frequency 30 –... -
Page 15: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDBaseT 720×400@85 640×480@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600@56/60/72/75/85 1280×720@50/60 1024×768@60/70/75/85 1280×768@60/75 1360×768@60 ... -
Page 16: Audio Specifications
Input Output Supported Resolutions (Hz) HDMI HDBaseT 2560×1600@60 (RB) 3840×2160@24/25/30 3840×2160@50/60 (4:2:0) 3840×2160@24/25/30, HDR10 AVLC 3840×2160@50/60 (4:2:0), HDR10 AVLC 3840×2160@50/60 (4:4:4) AVLC 4096×2160@24/25/30 4096×2160@50/60 (4:2:0) 4096×2160@24/25/30, HDR10 ... -
Page 17: Cable Specifications
S/PDIF Input/Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input Ethernet Cable Cat.5e/6 100m... -
Page 18: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Video & Audio Supported IR Pass-through Supported RS-232 Pass-through Supported Accept power from Receiver Unsupported Send power to Receiver Supported LAN Pass-through Supported 9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Audio/Video AVLC Adaptive Visually Lossless Compression Cat.5e Enhanced Category 5 cable Cat.6... - Page 19 ACRONYM COMPLETE TERM Infrared Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Personal Computer Powered Device Power over HDBaseT Power Sourcing Equipment S/PDIF Sony/Philips Digital Interface Format Transmission Control Protocol Ultra-High-Definition UHD+ Ultra-High-Definition Plus UHDTV Ultra-High-Definition Television Universal Serial Bus...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
