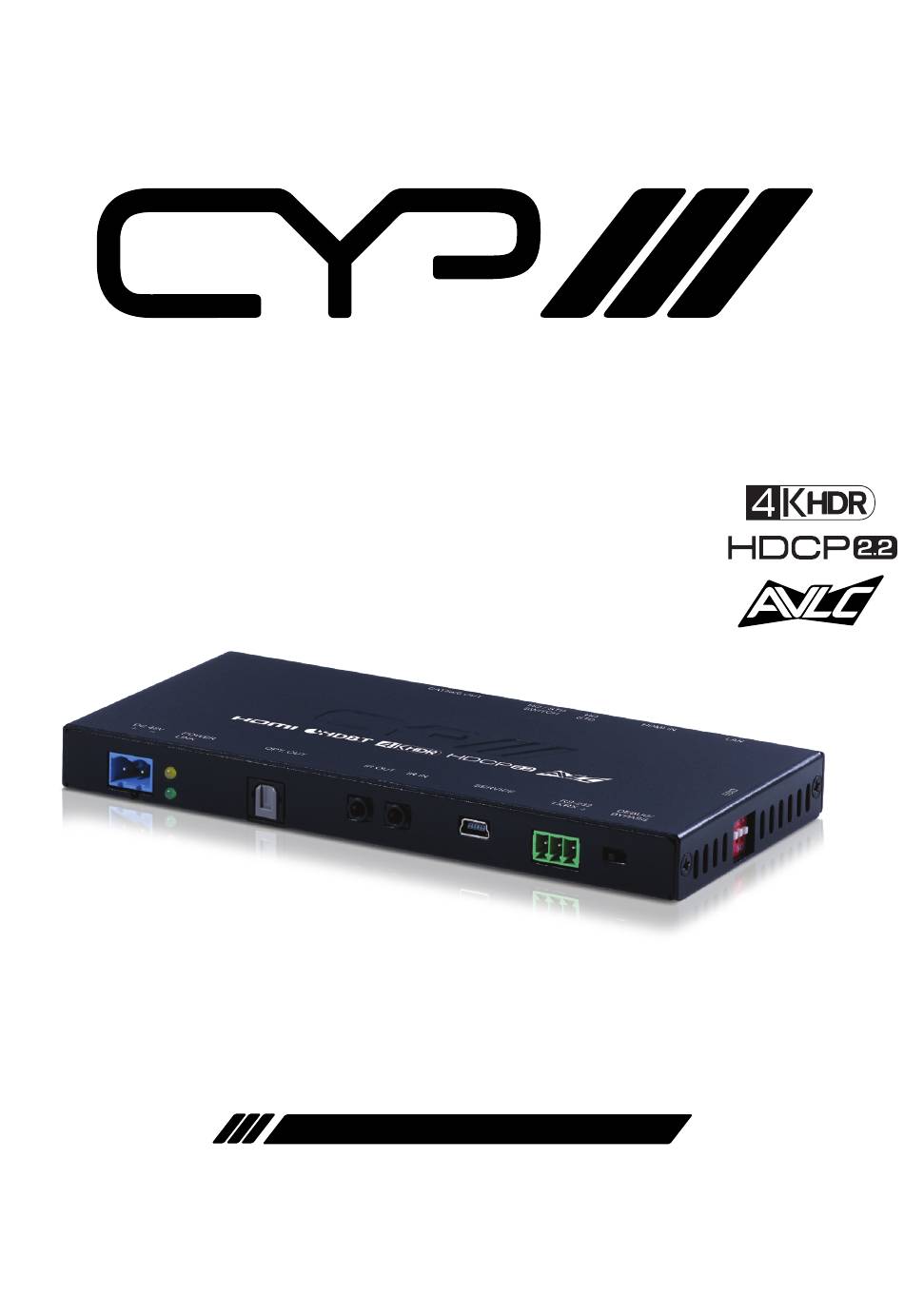

- Page 1 PUV-1830TX-AVLC HDBaseT™ HDR Transmitter (4K, HDCP2.2, PoH, LAN, OAR, 18Gbps) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Right Panel ..........10 6.4 IR Cable Pinouts ........10 6.5 RS-232 Control ..........11 6.6 RS-232 Commands ........11 6.7 EDID Management ........13... -
Page 6: Introduction
1. INTRODUCTION This HDMI over single Cat.5e/6/7 Transmitter is a great solution for ex- tending HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 metres. Multiple data and control interfaces are provided, including IR, RS-232 and LAN connec- tions. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI source equipment such as a media player, video game console or set-top box. A compatible HDBaseT Receiver with AVLC and 48V PoH support is recommended. The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 48V POWER OPT. OUT IR EXTENDER 1 IR BLASTER 2 SERVICE RS-232 CONSOLE/ LINK BYPASS DC 48V: Plug the 48V DC power adapter into this port and connect it to an AC wall outlet for power. Note: Please be sure to follow the polarity labels on the unit and the adapter’s wires. -
Page 9: Rear Panel
6.2 Rear Panel LAN: Connect to an Ethernet supporting device or to your local network, as appropriate, to extend the network to both ends of the HDBaseT connection. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 10: Right Panel
6.3 Right Panel EDID EDID: The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. -
Page 11: Rs-232 Control
6.5 RS-232 Control Terminal Block Controlling PC Serial Port Settings Defini- Defini- tion tion Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None 6.6 RS-232 Commands COMMAND Description and Parameters HELP Show the full command list. ? ... - Page 12 COMMAND Description and Parameters SET SYSTEM REBOOT Reboot the unit. GET IN 1 SYNC STATUS Show the current input sync state. GET OUT A SYNC STATUS Show the current output sync state. GET IN 1 EDID Show the input’s current EDID source.
-
Page 13: Edid Management
6.7 EDID Management 6.7.1 EDID Dipswitch Settings The EDID dipswitch block provides a way to select the EDID to use with the connected source. By using a combination of on and off settings for the dipswitches, there are a total of 16 possible EDID selections across 3 different operation modes. - Page 14 Detailed EDID information: Internal EDID (1–6) There are a total of 6 built-in internal EDID slots covering many standard display configurations. These EDIDs can’t be modified. They are defined as follows: EDID Video Content Audio Content FHD/2 channel 1080p@60Hz, 8-bit LPCM 2.0 (148MHz) FHD/Multi-channel 1080p@60Hz, 8-bit...
- Page 15 6.7.2 EDID Management Tool This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use.
- Page 16 - Save: Any EDID from the unit or a connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save” icon. - Upload: Previously saved EDID files (*.bin format) can be re-uploaded into any of the “User”...
- Page 17 preferences. - Clicking on the “Load” icon will open a file load window and after the *.bin file has been selected and loaded the EDID fields will be populated with the information from that file. The same will happen when the EDID is copied from the EDID Analyser window. Edit: The following tabs provide access to a wide range of EDID information which can be edited: - Descriptor: This tab allows for the editing of various description and...
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM Game Console IR In & Out HDMI Input 1.5m RS-232 Equipped 60° PC/Laptop AV Receiver Optical Audio 60° Retun (OAR) RS-232 Power Supply Router Cat.5e/6/7 Cable RS-232 RS-232 Controlled 60° Device Optical Audio HDMI 60° Return (OAR) Output 1.5m IR In &... -
Page 19: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Port 1×HDMI Output Ports 1×HDBaseT (RJ45) 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×LAN (RJ45) Control Port 1×USB (Mini-B) Pass-through/Control Port 1×RS-232 (3-pin Terminal Block) IR Frequency 30–50kHz (30–60kHz under ideal conditions) -
Page 20: Video Specifications
8.2 Video Specifications HDMI HDBaseT Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 720×400 70, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1152×864 ... -
Page 21: Audio Specifications
HDMI HDBaseT Supported TV Resolutions (Hz) Input Output 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 50, 59.94, 60 ... -
Page 22: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length 8-bit 12-bit 8-bit Input Cat. Cable Length 1080p Cat.5e 100m Cat.6 100m Cat.7 100m 100m Full HD Video (1080p) Up to 1080p@60Hz, 12-bit colour Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) 4K@24/25/30Hz &... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM AVLC Adaptive Visually Lossless Compression Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range...
