- Page 1 ________________________________________________________________________________________________________ AsteRx3 Product Family Hardware Manual Version 2.5.0 AsteRx3 Product Family Hardware Manual v2.5.0...
- Page 2 ________________________________________________________________________________________________________ AsteRx3 Product Family Hardware Manual Version 2.5.0 December 13, 2013 © Copyright 2000-2013 Septentrio nv/sa. All rights reserved. Septentrio Satellite Navigation Greenhill Campus, Interleuvenlaan 15G B-3001 Leuven, Belgium http://www.septentrio.com support@septentrio.com Phone: +32 16 300 800 Fax: +32 16 221 640...
-
Page 3: Table Of Contents
Stand-By Mode ........................19 SD Memory Card Usage ......................20 Applicable Software Package ....................20 Hardware Specifications ......................21 2.9.1 Power Consumption ......................21 2.9.2 Temperature Range ......................21 APPENDIX A LED STATUS INDICATORS ................ 22 AsteRx3 Product Family Hardware Manual v2.5.0... - Page 4 ________________________________________________________________________________________________________ CE NOTICE Receivers of the AsteRx3 family carry the CE mark and are as such compliant with the 2004/108/EC - EMC Directive and amendments, 2006/95/EC - Low Voltage Directive, both amended by the CE- marking directive 93/68/EC. With regards to EMC, these devices are declared as class B, suitable for residential or business environment.
- Page 5 Statement 0001/WARNING: The power supply provided by Septentrio (if any) should not be replaced by another. If you are using the receiver with your own power supply, it must have a double isolated construction and must match the specifications of the provided power supply.
- Page 6 Electronic components and assemblies, such as Septentrio OEM receivers, can be permanently damaged or destroyed when near or in contact with electro-statically charged objects. When you handle components or assemblies that are not in protective bags and you are not sure whether they are static-sensitive, assume that they are static-sensitive and handle them accordingly.
-

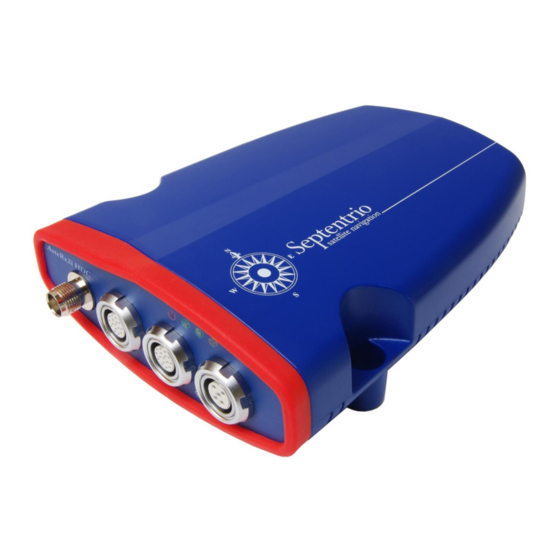

Page 7: Asterx3_Hdc
_______________________________________________________________________ 1 AsteRx3_HDC 1 AsteRx3_HDC 131.25 All dimensions expressed in millimeters. Mounting holes: hole diameter: 6mm. max diameter of screw head: 11mm. Weight: 500g AsteRx3 Product Family Hardware Manual v2.5.0... -
Page 8: Connectors
BIO0019x. If it is of type BIO0008x, the pins are reserved and must be left unconnected. Please check your input/output board version in the hardware release note shipped with your receiver (document “AsteRx3 Product Group Hardware Release Notes.pdf”, section “Hardware Deliverables”). - Page 9 DC. Use DC-blocks otherwise. LEDs The functionality of the LEDs is described in Appendix A. AsteRx3 Product Family Hardware Manual v2.5.0...
-
Page 10: Cables
Next to the two serial and USB connectors, this cable features the following open-ended wires (Check section 1.1 for the ODU pinout): ODU Pin# Pin Name Wire Color (I/O I) nRST_In Green Ground Black GPLED Purple PVTLED Brown TRACKLED Yellow PowerOut AsteRx3 Product Family Hardware Manual v2.5.0... - Page 11 EventA and EventB inputs. Cable Name: CBL*_HDC_ETH_MS Part #: 201238 Ethernet cable (straight) to be connected to I/O I. Cable Name: CBL*_HDC_ETH_MX Part #: 201237 Ethernet cable (crossed) to be connected to I/O I. AsteRx3 Product Family Hardware Manual v2.5.0...
-
Page 12: Stand-By Mode
0.5 seconds for the SD card to be cleanly unmounted (see also section 1.3). Failing to do so can lead to file corruption. 1.5 Applicable Software Package The AsteRx3_HDC is compatible with Septentrio’s SSRC3 Software Packages. 1.6 Hardware Specifications 1.6.1 Power Consumption Nominal operation: 4.3W... -
Page 13: Asterx3_Oem
All mounting holes have an inner diameter of 3.2mm (intended for M3 screws). The drawings below show the dimensions of the printed-circuit board. The parts painted yellow only contain mounting holes and can be cut away. AsteRx3 Product Family Hardware Manual v2.5.0... - Page 14 _______________________________________________________________________ 2 AsteRx3_OEM Top View AsteRx3 Product Family Hardware Manual v2.5.0...
-
Page 15: Antenna Connector
DC. Use DC-blocks otherwise. 2.3 80-pin Connector Connector type: SFM-140-02-SM-D Conventions: Pin Type: I=Input, O=Output, P=Power line, LVTTL=3V3 Low Voltage TTL. LVTTL means VI ≤ 0.8V, VI ≥ 2.0V, VO ≤ 0.4V, VO ≥ 2.4V. AsteRx3 Product Family Hardware Manual v2.5.0... - Page 16 Vin pins. It is recommended to connect the pull-up resistors to pin#29 (VCC_3V3_OUT). Septentrio AsteRx1_OEM, AsteRx2_OEM and AsteRx3_OEM receivers share the same 80-pin interface and are electrically compatible, with the following important exception: the voltage range at the Vin connector of the AsteRx3_OEM is 3.0 to 5.5V, while AsteRx1_OEM and AsteRx2_OEM only...
- Page 17 Leave unconnected if not used. See section 2.5 otherwise. ETH_RX+ 10Base-T Ethernet RX+ Leave unconnected if not used. See section 2.5 otherwise. ETH_RX- 10Base-T Ethernet RX- Leave unconnected if not used. See section 2.5 otherwise. AsteRx3 Product Family Hardware Manual v2.5.0...
- Page 18 Serial COM 2 transmit line (RS232 level) Leave unconnected if not used. RS232_RX2 RS232 Serial COM 2 receive line (RS232 level) Leave unconnected if not used. This pin is active only if pin#69 is tied to ground. AsteRx3 Product Family Hardware Manual v2.5.0...
-
Page 19: Frequency Reference Selection
2. by shortly driving pin#8 (nPOWER_TOGGLE) low. Note that if the receiver has been set in stand-by mode by the command “exePowerMode, ScheduledSleep”, it will wake up automatically after a prescribed amount of time. AsteRx3 Product Family Hardware Manual v2.5.0... -
Page 20: Sd Memory Card Usage
(nPWR_TOGGLE), an indication needs to be given that the power will be turned off. All log files are stored in the directory /ssn/SSRC3 on the card. Please note that some SD memory cards may not be compatible with Septentrio receivers. The following card types have been successfully tested:... -
Page 21: Hardware Specifications
2.9.1 Power Consumption Nominal operation: Stand-by mode : 15 mW Max in-rush current: 1.3A at Vin = 3.3V 0.9A at Vin = 5.0V 2.9.2 Temperature Range Operational: -40 to +85 °C Storage: -55 to +85 °C AsteRx3 Product Family Hardware Manual v2.5.0... -
Page 22: Appendix A Led Status Indicators
1, 2 blinks twice, then pauses 3, 4 blinks 3 times, then 5, 6 pauses blinks 4 times, then 7, 8 pauses blinks 5 times, then 9 or more pauses AsteRx3 Product Family Hardware Manual v2.5.0...
