SEPTENTRIO PolaRx3e Hardware Manual

Polarx3e series gps/glonass dual- frequency receiver platform

Advertisement

________________________________________________________________________________________________________

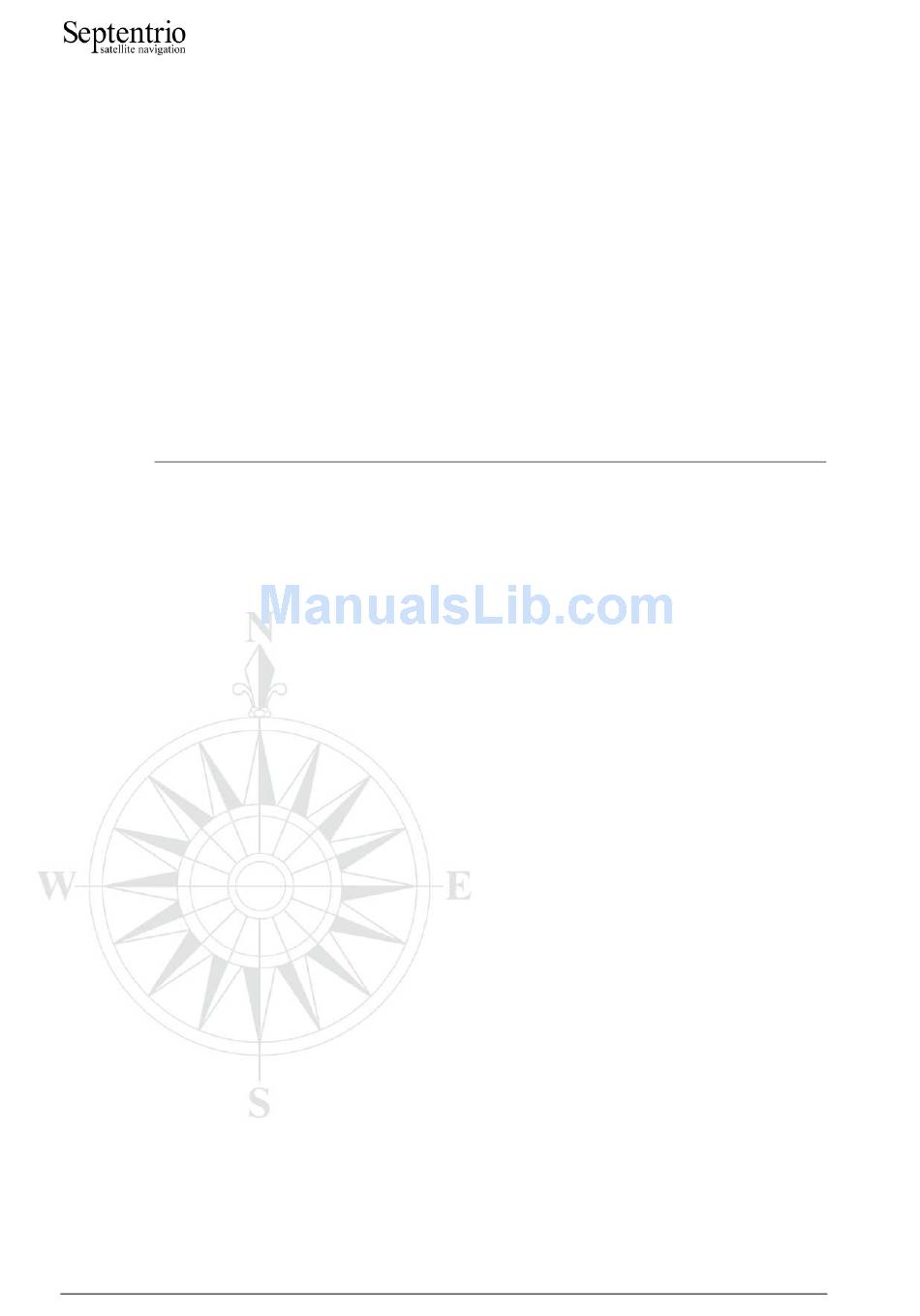

PolaRx3e Product Family
Hardware Manual
Version 1.1.0
PolaRx3e Product Family Hardware Manual v1.1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PolaRx3e and is the answer not in the manual?

Questions and answers

Summary of Contents for SEPTENTRIO PolaRx3e

  • Page 1 ________________________________________________________________________________________________________ PolaRx3e Product Family Hardware Manual Version 1.1.0 PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 2 ________________________________________________________________________________________________________ PolaRx3e Product Family Hardware Manual Version 1.1.0 September 22, 2009 © Copyright 2000-2009 Septentrio nv/sa. All rights reserved. Septentrio Satellite Navigation Ubicenter, Philipssite 5 B-3001 Leuven, Belgium http://www.septentrio.com/support_request.htm support@septentrio.com Phone: +32 16 300 800 Fax: +32 16 221 640...
  • Page 3: Table Of Contents

    Modifying the IP Configuration ..................... 15 4.1.1 Using the Web Interface ....................15 4.1.2 Using the Serial Interface ....................17 HARDWARE SPECIFICATIONS ................... 18 Size ............................18 Power Consumption ........................ 18 Temperature Range ......................... 18 PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 4 ________________________________________________________________________________________________________ CE NOTICE Receivers of the PolaRx3e family carry the CE mark and are as such compliant with the 89/336/EC - EMC Directive and amendments, 73/23/EC - Low Voltage Directive, both amended by the CE- marking directive 93/68/EC. With regards to EMC, these devices are declared as class B, suitable for residential or business environment.
  • Page 5: Safety Information

    Statement 0001/WARNING: The power supply provided by Septentrio (if any) should not be replaced by another. If you are using the receiver with your own power supply, it must have a double isolated construction and must match the specifications of the provided power supply.
  • Page 6: Polarx3E Overview

    ___________________________________________________________________ 1 PolaRx3e Overview 1 PolaRx3e Overview The PolaRx3e family of receivers (PolaRx3e, PolaRx3eTR, PolaRx3eG) incorporates a high performance dual frequency L1/L2 or L1/L5 GNSS engine in a rugged housing. PolaRx3e receivers feature the following interfaces:  2 serial COM ports;...
  • Page 7: Connectors

    MHz reference is removed during operation, the receiver will stop. 2.1.4 PPS IN (BNC) Time synchronization input (input level 3.3V CMOS with 4.7k pull down resistor, 5V tolerant, >2.3V, V <1V), to be connected to a one pulse-per-second external reference. PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 8: Ref Out (Bnc)

    This connector provides a 10 MHz output signal synchronized with the frequency reference used by the receiver (be it internal or external). It is a sinusoidal signal with an unloaded peak-to-peak amplitude of 0.7V (-5dBm in a 50 load). PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 9: Front Panel

    Signal ground (GND) COM1: not connected; COM2: Clear To Send (CTS – input) COM1: not connected; COM2: Request To Send (RTS – output) Receive Data (RXD – input) Transmit Data (TXD – output) Not connected PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 10 On COM2, pin#1 provides a 5V DC voltage, e.g. to allow feeding a Bluetooth™ device. Minimal null-modem connection: Receiver side: ODU 7 pins (male) PC side: DSUB9 (female) Null-modem connection with RTS/CTS support: Receiver side: ODU 7 pins (male) PC side: DSUB9 (female) PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 11: Usb

    __________________________________________________________________________ 2 Connectors Connection to Bluetooth StollMann™ dongle, supplied by Septentrio: Receiver side: ODU 7 pins (male) Bluetooth Dongle Side: DSUB9 (male) 2.2.2 Pin # Description USB_Vbus USB_D- USB_D+ Not used Receiver side: ODU 5 pins (male) PC side USB_VBus...
  • Page 12 ANT_EXT, external antenna power. Can be used to apply an external supply voltage to the antenna. The voltage applied to ANT_EXT (V ) determines the voltage source on the MAIN connector, as follows: PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 13: Power Connector

    ON/OFF. When this pin is also connected to the power (9 to 30V), the receiver is always on, regardless of the state of the on/off button. If you are using a different power adaptor than the one provided by Septentrio, make sure that it can sustain a current of 1.5A.
  • Page 14: Internal Logging

    ______________________________________________________________________ 3 Internal Logging 3 Internal Logging PolaRx3e receivers contain a 2-GByte SD memory card for internal file logging. Refer to the “How- to…” section of the Firmware User Manual to learn how to use this feature. To prevent data corruption, logging is protected against accidental power outages. There is no need to unmount the SD memory card before switching off the receiver.
  • Page 15: Ethernet

    The next section explains how to modify the WiPort configuration. The DHCP protocol will fail when the PolaRx3e is connected to a switch using the Spanning-Tree protocol. This protocol is enabled in most modern managed switches. To avoid the problem, it is recommended to put a simple non-managed switch (with no Spanning-Tree protocol) between the PolaRx3e and your main LAN switch.
  • Page 16 5. Click “Apply Settings” in the blue left pane to store the new setting. The other settings, such as the “Serial Tunnel” settings, have been preconfigured by Septentrio for optimal performance with the receiver, and should not be changed. In particular, do not click on “Apply Defaults”.
  • Page 17: Using The Serial Interface

    WiPort device. For more detailed documentation on the WiPort Setup Mode, please refer to Chapter 5 of the WiPort User Guide on the CD-ROM accompanying the receiver. PolaRx3e Product Family Hardware Manual v1.1.0...
  • Page 18: Hardware Specifications

    4.5 to 5 W Peak (at start-up): 7.5W Peak current at power connector (at start-up): 1.1A Voltage range: 9 to 30V DC Temperature Range Operational: -40 to +60 °C Storage: -55 to +85 °C PolaRx3e Product Family Hardware Manual v1.1.0...
