PN-M10 (M10)

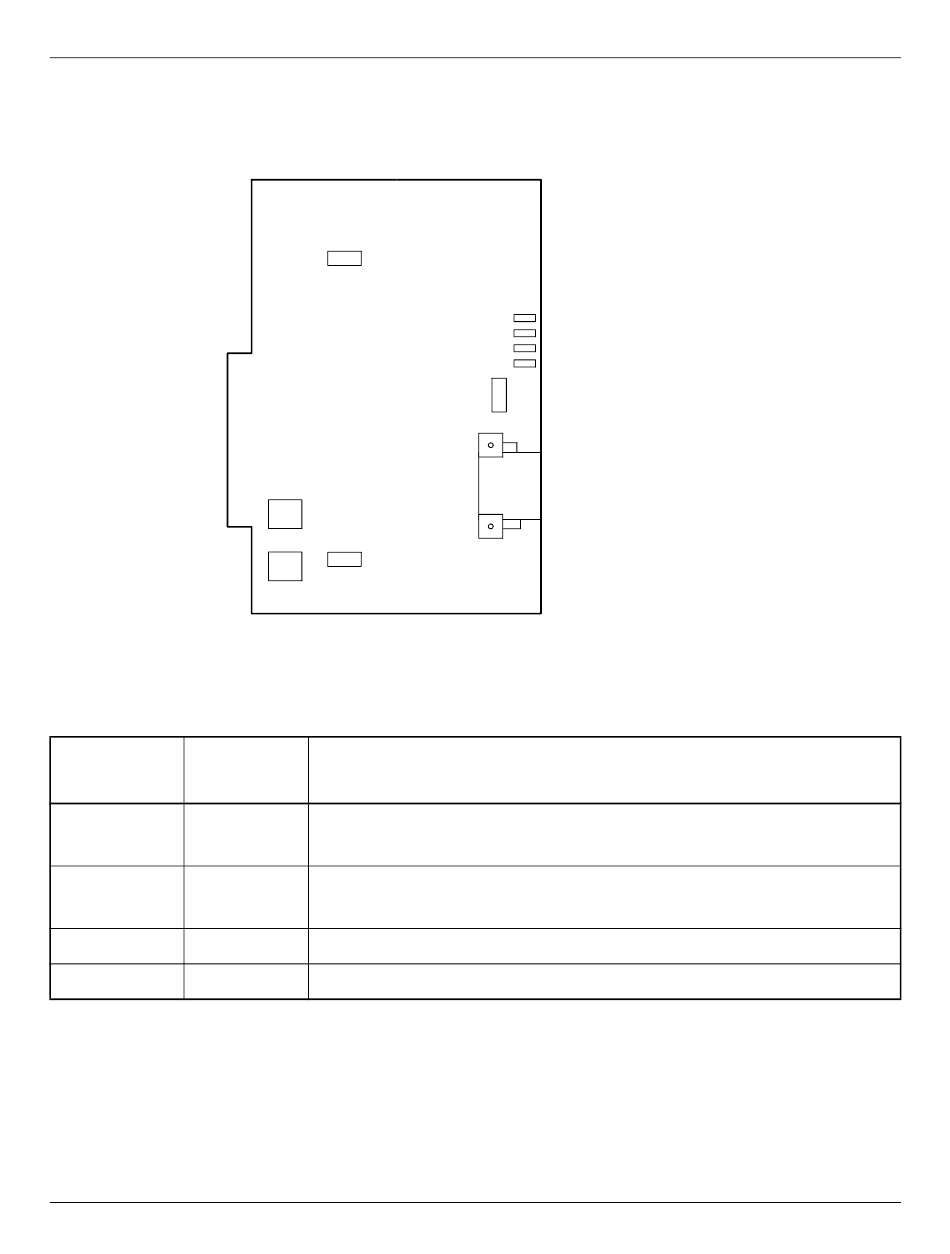

Location of Lamps, Switches, and Connectors
Lamp Indications
LAMP
COLOR
NAME
CK0 Green
CK1 Green
TALM Red
RALM Red
2
NEAX2000 IVS Remote PIM System Manual
ND-70917 (E), Issue 1.0
JP3
JP1
JP2
JP0
Remains lit when a Digital Trunk Interface is connected to No. 0
circuit on this card
Remains lit when a Digital Trunk Interface is connected to No. 1
circuit on this card
Remains lit when optical output is stopped
Remains lit when optical input is lost or stopped
CHAPTER 4 CIRCUIT CARD INFORMATION
CK0
CK1
TALM
RALM
JP4
CN1 TO OPTICAL CABLE
FUNCTION
PN-M10 (M10)
