Stealth Products TFB Owner's Manual

True forming back
Hide thumbs Also See for TFB:
Table of Contents

Advertisement

Quick Links

Download this manual

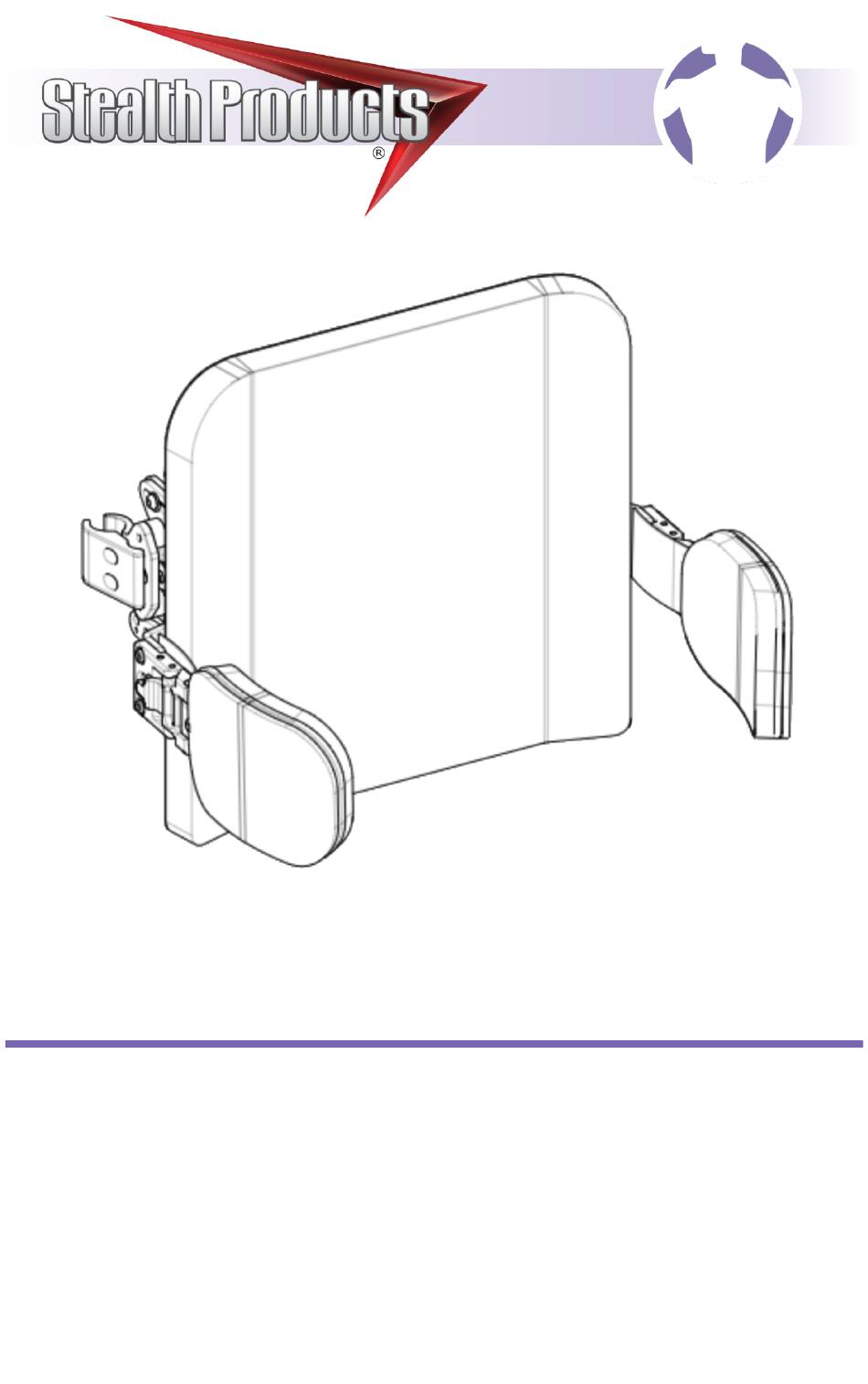

Backs &
Support
TFB
True Forming Back
Owner's Manual - Maintenance Guide
True Forming Back

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFB and is the answer not in the manual?

Questions and answers

Related Manuals for Stealth Products TFB

Summary of Contents for Stealth Products TFB

  • Page 1 Backs & Support True Forming Back Owner’s Manual - Maintenance Guide True Forming Back...

  • Page 2: Table Of Contents

    Mounting..................... 4 Features..................5-8 Parts and Accessories Breakdown ............. 5 Shell Dimensions ..................5 Hardware Parts..................6 TFB Backrest & Lateral ................7 Installation Instructions ............8-10 Preparations ....................8 Tools ......................8 Installation Plan ..................8 Required Tools................... 8 Installing Laterals ...................19...

  • Page 3: Customer Satisfaction

    For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary.

  • Page 4: Important Information

    Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.

  • Page 5: Warning Labels

    Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the...

  • Page 6: Design And Function

    Full adjustability to meet the needs of almost any client. Mounting The TFB mounting hardware can be installed on almost any chair that utilizes canes or tubes. The TFB seat back is designed to be removable and provides additional width, angle and depth adjustments as needed. The TFB can accommodate many types of positioning belt systems and multiple headrests including the TWB480 and HMO series.

  • Page 7: Features

    Wings are articulated or swing-away type, which allows easier transfers to and from the chair. Refer to the TFB Hardware Manual for the Parts and NOTICE Accessories section of the hardware chosen for your TFB Back.

  • Page 8: Hardware Parts

    Features Hardware Parts Item Description Qty. Back* Back Shell and Cushion Hardware Kit* Mounting Bracket Lateral Bracket* Lateral Bracket Lateral* Lateral Wing Support Cushion* Lateral Cushion and Cover * R-Back, Quick Release mounting hardware, and TWBL lateral shown. Actual hardware included with your kit will vary depending on options chosen.

  • Page 9: Tfb Backrest & Lateral

    Features TFB Backrest & Lateral Item Description A1 TFBSHXXYYR* Shell A2 TFBF0XXYYR* Foam FBC0XXYYR* Cover * XX width by YY height. R-Back shell shown here. Your shell may be different based on model and options chosen. Item Pad Mount Swing-Away Hardware...

  • Page 10: Installation Instructions

    WARNING cause damage to the hardware and/or injury to the user. Tools Use the proper tools to install and adjust the TFB to the desired position for the user. The use of improper tools may cause damage to the device.

  • Page 11: Installing Cushions To The Laterals

    Installation Instructions Installing the Laterals Step One: Place the lateral track nut (A) into the groove of the 125° lateral bracket (B). Step Two: Slide the 125° lateral bracket (B) between the aluminum shell (C) and covered foam back (D). After having the bracket in the correct position, use the two M6x1x12mm button head cap screws (E1), each with a 1/4"...
  • Page 12 Installation Instructions Installing the Cushion to the Laterals Step One: Slide the cushion (A) onto the lateral (B) using the flap on the back of the cushion cover. Align the holes STEP on the curved metal plate of the cushion with the track on the lateral pad mount.

  • Page 13: First-Time Use

    If needed, make any adjustments to the positioning. Explain to the customer possible problems and how to address them. Conditions of Use The TFB is intended for use as installed by the dealer, in accordance with the installation instructions in this manual. •...

  • Page 14: Maintenance

    Maintenance Cleaning • Use a soft cloth to clean the back shell. • Ensure all cleaners are approved for finished steel, aluminum, plastic, and upholstered surfaces. • Hand wash the foam pad cover with mild, soapy water or detergent, rinse well, and let dry.

  • Page 15: Notes

    Notes...
  • Page 16 © 2021, Stealth Products, LLC Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P136D544R3 TFB True_Forming_Back.pdf Nov 10, 2020...
