- Page 1 English User guide IVP 8000 EX...

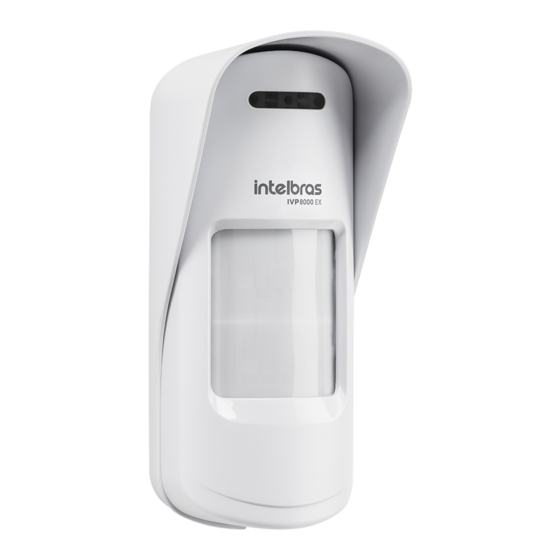

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and security. The IVP 8000 EX sensor has dust, water protection¹ white light immunity, making it perfect for the harshest environments, and can be installed indoors, semi-open or outdoors. Its lens is specially built for long life, containing materials resistant to sunlight.
- Page 3 The sensor is compatible with AMT 8000 control panel versions 1.2.1 or higher. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
- Page 4 » It is important to note that the Pet function is designed for low-growing animals weighing up to 30kg. If the animal is on top of a bench, for example, the Pet function can be canceled. Obs.: before starting the installation, it is necessary to define the height at which the sensor will be positioned, which can vary from 2 to 2.2 m.
-
Page 5: Table Of Contents
12.5. Installation with IVP 8000 EX base with internal nut housing ...... -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 3 Vdc Operating current 20 µA Frequency band 915 MHz to 928 MHz Modulation DSSS BPSK 40 Kbps Maximum transmission power 11 dBm Battery LITHIUM CR123A 3 V Angle of detection 110° Detection range 12 m Method of detection Double PIR Animal immunity... -
Page 7: Sensor Opening
After inserting the battery, the sensor goes into stabilization mode and the blue LED flashes for a few seconds. When stabilization is complete, the blue LED will stop flashing. 6. Registering the IVP 8000 EX sensor The sensor registration can be performed through the AMT 8000 Desktop Programmer software, remote AMT mobile application, keyboard commands and synchronization button on the alarm center. -
Page 8: Identifying The Best Place For Installation
7. Identifying the best place for installation The IVP 8000 EX sensor has communication signal level indications with the AMT 8000 center, this will help you choose the best installation location. Follow the procedure: 1. Once properly registered, take the sensor to the environment you wish to protect;... -
Page 9: Configuring The Ivp 8000 Ex Sensor
Restore will take up to 2 minutes. Option available from sensor version 2.0.0 and AMT 8000 central version 2.0.0. 9. Configuring the IVP 8000 EX sensor The sensor settings can be adjusted in two ways, below we present the step by step of each one. -
Page 10: Information On Sensor Settings
After activation of the AMT 8000 control panel, it is necessary to wait a time of up to 2 minutes for synchronization between the IVP 8000 EX and the AMT 8000 control panel. During this period, the sensor does not detect movement. - Page 11 Once you have done this, select the sensor you wish to configure, for example: Sensor 1 Sensors Sensor 1 > Sensor 2 > Sensor 3 > Sensor 4 > Sensor 5 > Sensor 6 > Sensor 7 > Sensor 8 >...
-
Page 12: Battery
If you prefer, the battery, as well as other unused Intelbras brand electronics, can be discarded at any Green Eletron collection point (electronic waste manager with which we are associated). If you have any questions about the reverse logistics process, please contact us by telephone (48) 2106-0006 or 0800 704 2767 (Monday to Friday from 8am to 8pm and Saturdays from 8am to 6pm) or via email -mail support@intelbras.com.br. -
Page 13: Product
12.3. Product Mounted support Components Axis Cover Ring Base Connector Screw 3.5 x 9.5 mm 12.4. Features » Built in UV-protected material; » Easy installation; » Wide application scenario; » Discreet and robust. -
Page 14: Installation With Ivp 8000 Ex Base With Internal Nut Housing
12.5. Installation with IVP 8000 EX base with internal nut housing » Insert the shaft into the cover (piece 1 and piece 2); » Pass the ring through the assembly above (piece 3); » Screw the ring onto the base of the articulator (piece 4);... -
Page 15: Installation With The Base Of The Ivp 8000 Ex Without Drilling
» Insert the shaft through the hole, turning it clockwise. 12.6. Installation with the base of the IVP 8000 EX without drilling » Insert the shaft into the cover (piece 1 and piece 2); » Pass the ring through the assembly above (piece 3);... - Page 16 » Fix the connector on the base of the sensor using the two screws as shown in figure 1, observe the existing hole in the base, then insert the shaft through the hole, rotating it clockwise as shown in figure 2. Figure 1 Figure 2 »...
- Page 17 Installation without using the articulator » For installation directly on the wall, or in the corner of the wall, remove the plate and break the seals indicated for the holes in the rear fixing cover. Attention! Garanta que a pelagem esteja de acordo com o tamanho da ação, pois uma furação pode ser acionada para o interior do produto.
-
Page 18: Warranty Term
7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to pro¬tect against hackers. - Page 19 Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 04.23 CNPJ 82.901.000/0016-03 –...
