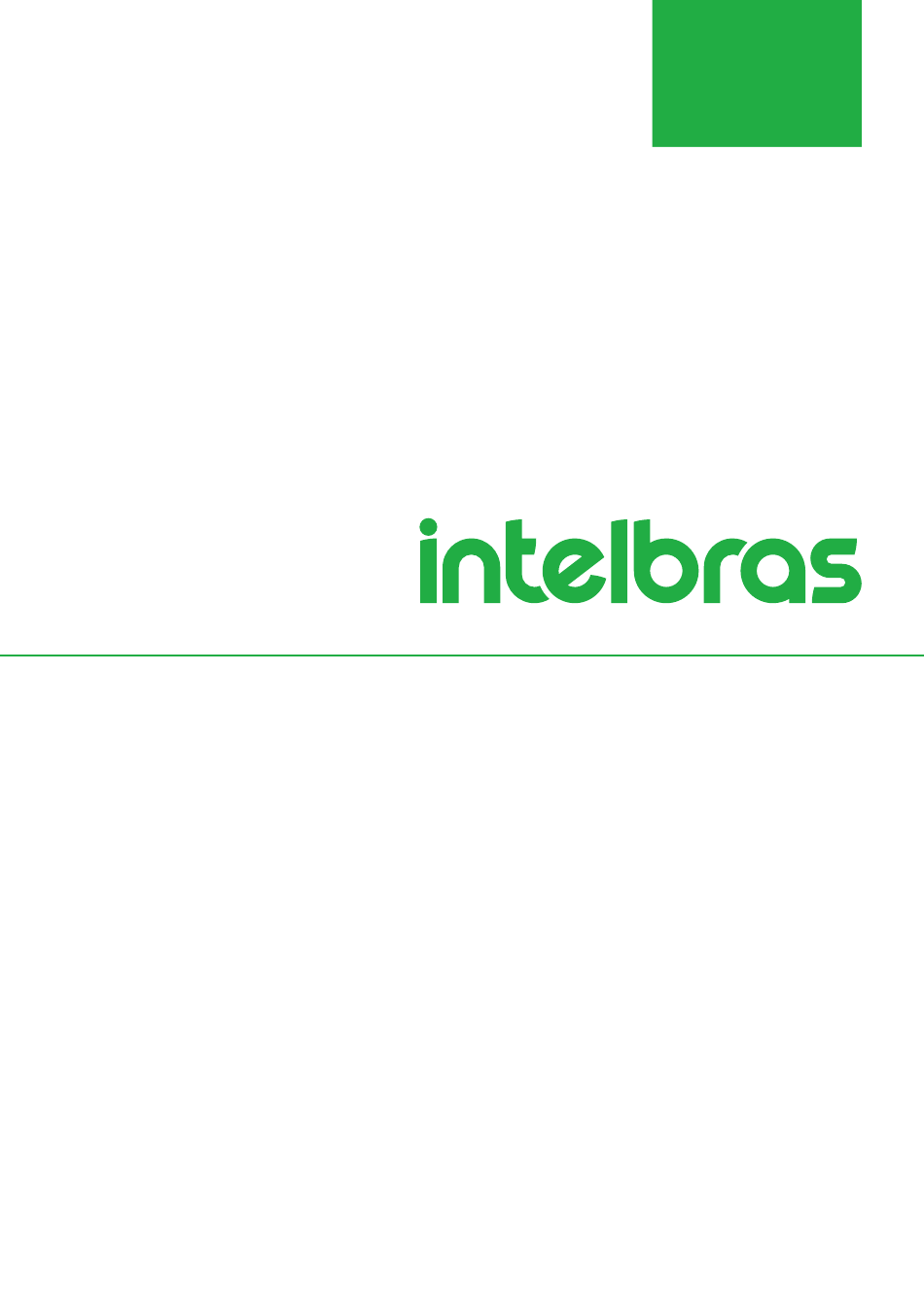

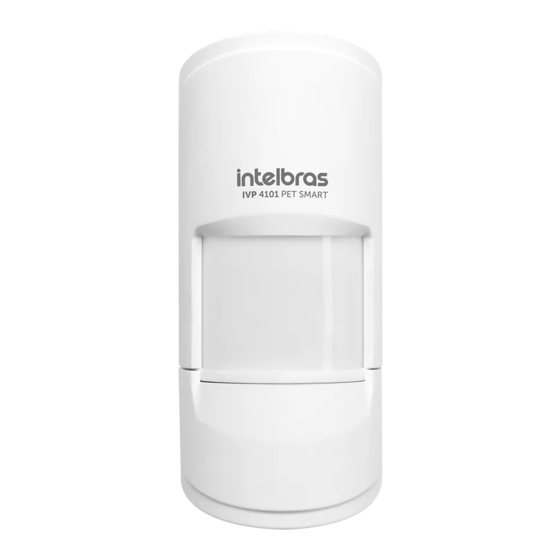

  • Page 1 English User manual IVP 4101 PET smart...
  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 4101 PET smart was developed by Intelbras with 100% digital technology. The sensor has an integrated Temperature Sensor to offer the same detection sensitivity in different environments (from - 10 °C to + 50 °C) reducing the risk of false triggers, DIGITAL technology, SMD assembly.
  • Page 3 Care and safety » Follow all instructions in the manual for assembling and installing the product; » LGPD – Data processing by Intelbras: Intelbras does not access, transfer, capture or perform any type of processing of personal data from this product.
  • Page 4 » The Pet function is intended for crawling animals weighing up to 20 kg. If the animal is on top of a bench, for example, the Pet function can be canceled. » For the use of the articulator, we recommend that the installation be carried out by a professional installer, as the incor- rect use of the same could impair the coverage angle of the sensor and its Pet function.

  • Page 5: Table Of Contents

    10.3. IVP 4101 Pet smart sensor supervision adjustment ....... . .

  • Page 6: Technical Specifications

    » Motion detection trigger. » Power supply: LITHIUM 3 Vdc battery – CR123A. » Immunity to creeping domestic animals up to 20 kg. » Ease of installation. 3. Product IVP 4101 PET SMART BATERIA JP1 SENS SUPERV NÃO/SIM 1. Pir sensor 8.

  • Page 7: Sensor Opening

    4. Sensor opening To access the IVP 4101 Pet smart sensor board for battery change or configuration, remove the lower front cover and remove the front cover. See image below: IVP 4101 PET SMART BATERIA JP1 SENS SUPERV NÃO/SIM BATERIA...

  • Page 8: Test Period

    Note: if the alarm control panel used by Intelbras, put it in test mode, in this way it will not be necessary to observe the LED, as the control panel will indicate the operation of the sensor through siren beeps. For more information, consult the...

  • Page 9: Configuring The Ivp 4101 Pet Smart Sensor (For Plates With Version 4410350/5 And Firmware 3.0.0 Or Higher)

    9. Configuring the IVP 4101 PET smart sensor (for plates with version 4410350/5 and firmware 3.0.0 or higher) After the sensor is properly installed, make the adjustments according to the information below: ECO/CONT SUPERV SENS ECO/CONT Fechado mínima NÃO/SIM Aberto máximo Sensitivity adjustment of IVP 4101 Pet smart sensor The SENS jumper (JP1) is used to control the detection sensitivity.
  • Page 10 Intelligent Continuous Mode: the sensor takes a reading of the environment and generates a trigger for 3 mo- vements, after that generation of triggers or the sensor goes into hibernation for 2 minutes. During this period, the indication LED is not activated and no new shots are generated, since a notification has just been sent to the control panel.

  • Page 11: Ivp 4101 Pet Smart Sensor Supervision Adjustment

    Factory default: unsupervised 9.2. Low battery sensor IVP 4101 Pet smart sensor controls the battery level. If it is critical (equal to or below 2.5 V), it will send the information to the control panel. » If the sensor is configured in unsupervised mode (OOK) and the low battery signaling is enabled on the control panel, the information is sent during tripping.
  • Page 12 » Economy mode operation: the sensor will detect and transmit 1 (once) time to the alarm center, after this trigger, the sensor enters economy mode (low consumption mode without detection). In this mode, the sensor will detect again and transmit to the alarm center only after 2 (two) minutes without movement in the environment. After 2 (two) minutes, the sensor will be able to detect and transmit the event to the alarm center.

  • Page 13: Ivp 4101 Pet Smart Sensor Supervision Adjustment

    10.3. IVP 4101 Pet smart sensor supervision adjustment The OOK/FSK jumper (JP3) is used to select the modulation. With jumper JP3 open, the sensor is in supervised mode (FSK). With jumper JP3 closed, the selected mode is unsupervised (OOK). The type of supervision to be used will depend on the compatibility of the receiver with the Alarm control panel.

  • Page 14: Warranty Term

    8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated).
  • Page 15 Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.23 CNPJ 82.901.000/0016-03 –...
