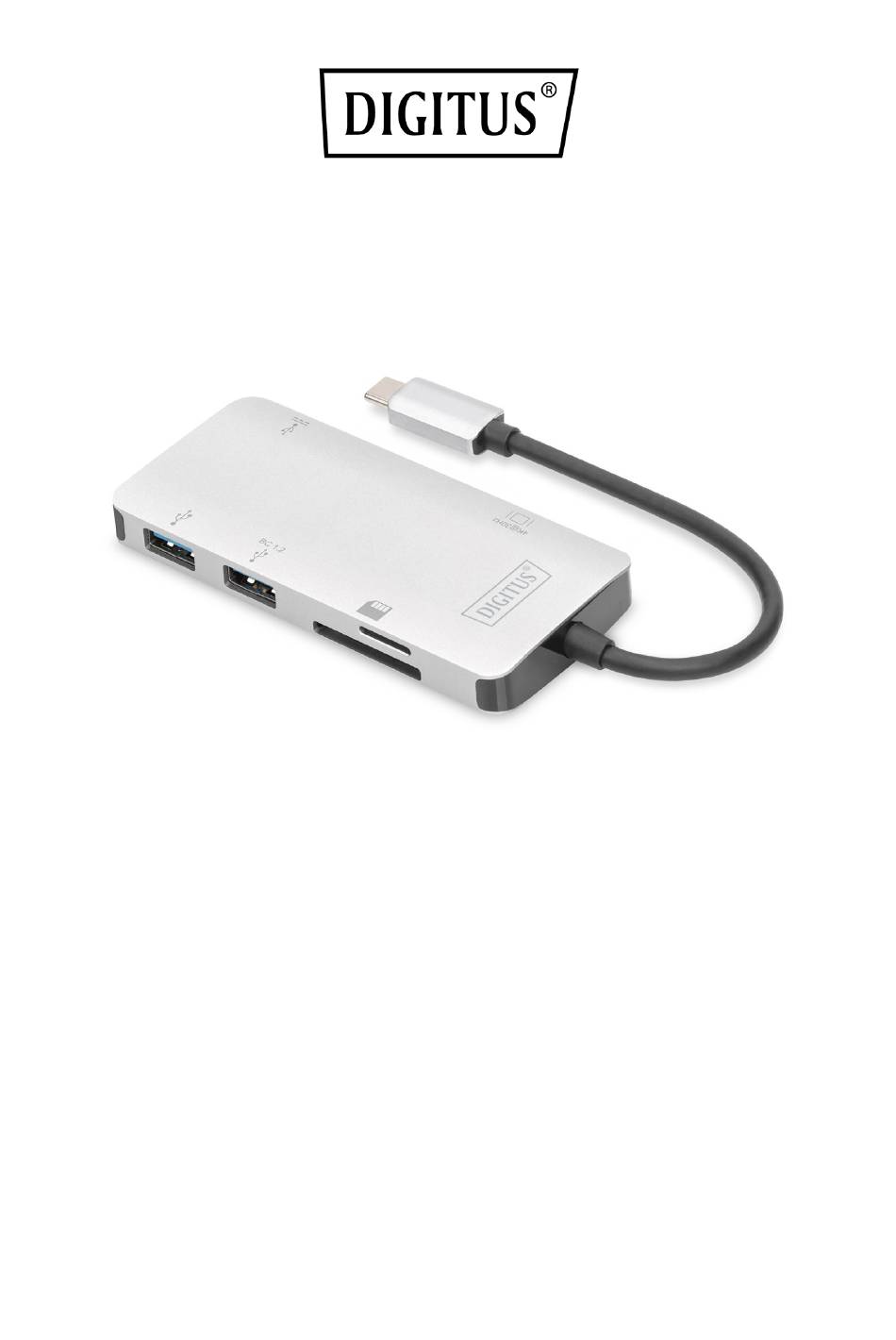

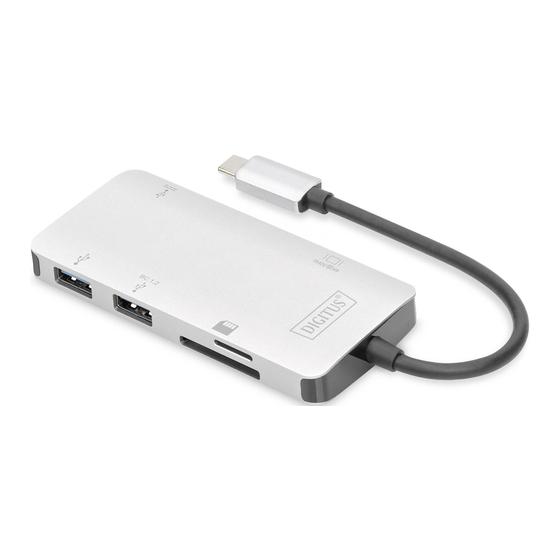

USB Type-C™ Multiport Dock, 6-Port
User Manual
DA-70874
1.0 INTRODUCTION
This is a USB-C to three USB 3.0, HDMI, Micro SD, SD/MMC, Type-C™
Data and PD Charging Adapter. The USB 3.0 port allows you to connect
USB device or another hub to the host USB-C computer, the USB-C
female port supports both PD Charging and data; the HDMI port allows
you to connect an HDMI monitor so that you can watch videos on a big
screen; and the Micro SD and SD/MMC port allows you to read
information in the memory card on the host PC. It can work on all PCs
and mobile phones which support DP Alt-mode.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DA-70874
Summary of Contents for Digitus DA-70874
- Page 1 USB Type-C™ Multiport Dock, 6-Port User Manual DA-70874 1.0 INTRODUCTION This is a USB-C to three USB 3.0, HDMI, Micro SD, SD/MMC, Type-C™ Data and PD Charging Adapter. The USB 3.0 port allows you to connect USB device or another hub to the host USB-C computer, the USB-C female port supports both PD Charging and data;...
- Page 2 2.0 FEATURES Interface: 1. Type-C™ Malex1 (connect to Type-C™ host PC) 2. Type-C™ Female x1 (for data and PD Charging) 3. USB-A Female x2 4. HDMI Female x1 5. SD slot x1, Micro SD slot x1 Support USB 3.0 super speed (5Gbps) transmission, downward compatible with USB 2.0 ...
- Page 3 4.0 SPECIFICATIONS Input/Output Connector Input USB-C Male x1 Output USB 3.0 Femalex2 USB-C Female x1 (for data and Charging) HDMI Female x1 Micro SDX1 SD/MMCX1 Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature -10°C to +70°C Storage Humidity...
- Page 4 5.0 OPERATION 1) Connect the USB-C male port of this product to USB-C device. Connect the three USB 3.0 outputs of this product to three USB 3.0/2.0 devices 2) Connect HDMI output of this product to HDTV with one HDMI cable 3) Automatically or manually set IP address of computer 4) Insert Micro SD, SD/MMC card into the responding slots...
- Page 5 Type-C™ Host PC Mouse U Disk Micro SD card SD card Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
