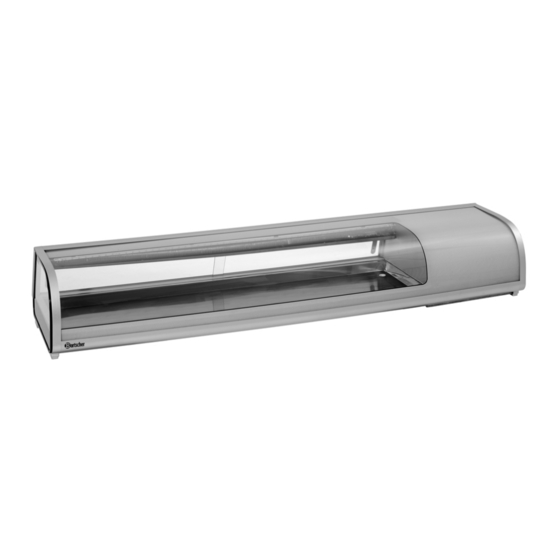

- Page 1 Bartscher Sushi Bar 5x 1/2 GN 110.135G V1/1012...
-
Page 2: Table Of Contents
6. Cleaning and maintenance ..................29 6.1 Safety advice ....................... 29 6.2 Cleaning ......................29 6.3 Safety instructions for maintenance ..............30 7. Possible Malfunctions .................... 31 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. The Bartscher Sushi Bar is intended only for cooling appropriate food products in appropriate GN containers. The Bartscher Sushi Bar cannot be used for storing: flammable or explosive materials such as ether, alcohol, oil or glue;... -
Page 7: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
• separately installed energy-efficient LED lighting A perfect compliment: Bartscher CNS 18/10 steel food service containers - 1/2 GN, 20 mm D (art. no. A122.020) or - 1/2 GN, 40 mm D (art. no. A122.040) - 23 -... -
Page 9: Overview Of Parts
4.2 Overview of parts ① ④ ② ③ ⑩ ⑨ ⑦ ⑥ ⑤ ⑧ ① Ventilation ducts ② Power cable ③ Control switches ④ Drain hose ⑤ Feet ⑥ Housing ⑦ Surface for placing GN ⑧ Sliding glass door (at rear) ⑨... -
Page 10: Installation And Operation
5. Installation and operation 5.1 Safety instructions WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing. -
Page 11: Installation And Connection
5.2 Installation and connection CAUTION! Installation and connection of the device should be performed only by a qualified specialist. Setup • Unpack the device and remove all packing material. Remove the protective film from the device. • Put the device in a safe place capable of supporting its weight. •... -
Page 12: Operation
5.3 Operation • After unpacking the device but before connecting it to the power source, wash it. GN containers should be washed prior to use. (see 6.2 "Cleaning”). • Open the sliding door and place the appropriate 1/2 GN containers in the cooling cabinet. - Page 13 LED indicators LED cooling indicator This indicator comes on when the compressor is activated, goes off when the desired internal temperature is reached and flashes during delays. LED defrost indicator This indicator comes on during the defrost process, goes off when the defrost process is finished and flashes during extended defrost.
-
Page 14: Cleaning And Maintenance
NOTE! Do not place hod food inside the cooling cabinet, but let it cool first. • Do not overfill the cooling cabinet, so as to avoid disrupting air circulation inside the device. • To avoid losses during the cooling process, do not keep the glass door open longer than is necessary. -
Page 15: Safety Instructions For Maintenance
o To make cleaning easier, the glass door can be removed. Clean it using a mild cleaning agent and soft cloth, then dry thoroughly. o Wash the exterior of the device with a soft cloth and warm water, with a small amount of mild detergent. -
Page 16: Possible Malfunctions
7. Possible Malfunctions Problem Cause Solution • • Power cable improperly Remove plug and connect it connected again. • • Safety fuse has been Check safety fuse, check activated. the device by connecting it to No cooling • another socket. Power outage •... -
Page 17: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
