Summary of Contents for Bartscher 110.709

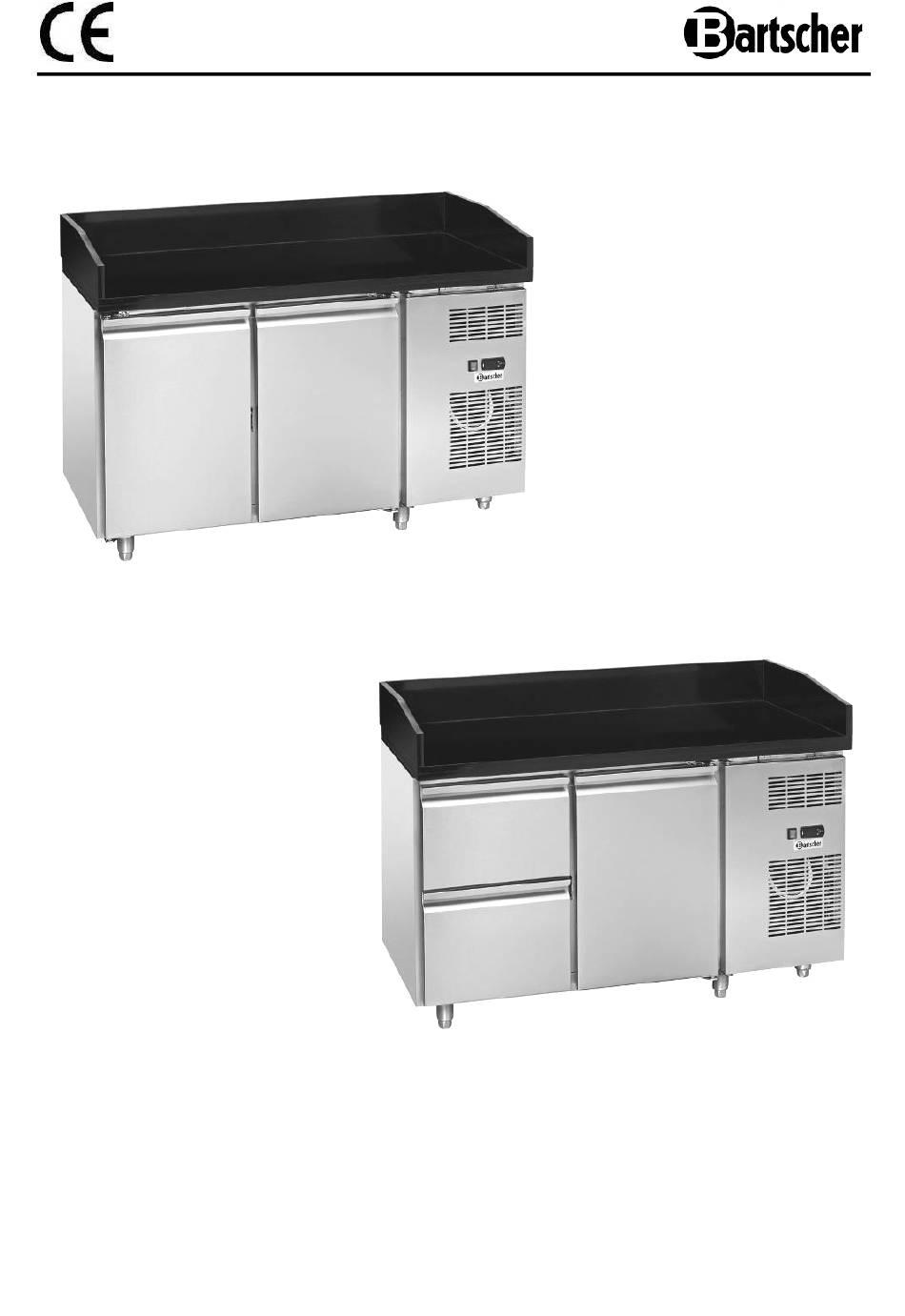

  • Page 1 110.709 110.710 V2/0712...
  • Page 2: Table Of Contents

    25-29 6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 6.3 Safety instructions for maintenance 7. Possible Malfunctions 8. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 17 -...
  • Page 3: General Information

    1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
  • Page 4: Liability And Warrantees

    1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.
  • Page 5: Safety

    2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.
  • Page 6: Intended Use

    CAUTION! o The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
  • Page 7: Delivery, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.
  • Page 8: Technical Data

    4. Technical data 4.1 Overview of parts ② ③ ④ ① ⑤ ⑧ ⑥ ⑦ ① Housing ② Marble countertop ③ ON/OFF switch with integrated control light ④ Ventilation ducts ⑤ Digital temperature regulator ⑥ Door ⑦ Drawer ⑧ Adjustable legs - 23 -...
  • Page 9: Technical Specification

    4.2 Technical specification Name Cooled table 110.709 110.710 Article no.: Material: chrome-nickle steel, marble countertop 1 door, 2 drawers GN 1/1, Construction: 2 refrigerated doors depth 150 mm, refrigerated Coolant: R134a/400 g Power: 0.385 kW / 1 NAC 230 V Temperature range: 0 °...
  • Page 10: Installation And Connection

    5.2 Installation and connection CAUTION! Installation and connection of the device may only be performed by certified specialists. • Unpack the device and remove the packing material. Remove the entire protective foil from the device. • Place the device on a flat, secure surface that can support its weight. •...
  • Page 11 Digital temperature regulator Display and functions Primary temperature settings are established at the factory and correspond to a working temperature in the device of approx. 0 ° C - 10 ° C. During normal use, the display will show the temperature as measured by the sensor. The LED will also show the current state of functions (table 1), and by using the 3 buttons some functions can be activated/deactivated (table 2).
  • Page 12 Button functions Tab. 2 Normal work mode Button Start Pressing Pressing buttons buttons individually together Longer than 3 sec.: ① Pressed alternating display of together – ON/OFF ON/OFF constant operation 1 sec: ③ Longer than 3 sec.: mode turned Programmin Defrost turned on / off on / off g version...
  • Page 13 Defrost Automatic defrost The device automatically defrosts 3 times per 24 hours. The internal clock is activated the first time the device is turned on. If you want to reset the automatic defrost cycle, press and hold for over 3 seconds. The display will show the symbol The device will immediately begin automatic defrost, then the next defrost will begin in 8 hours.
  • Page 14: Cleaning And Maintenance

    • To avoid unpleasant odors inside the cooled table, observe the recommended use by dates. • In the event of a power outage, avoid opening the doors and drawers as much as possible to avoid cold loss. • After a power outage or after removing the plug from its socket, do not reconnect the device for at least 5 minutes to a power source.
  • Page 15: Safety Instructions For Maintenance

    6.3 Safety instructions for maintenance o Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers. o In case of damage or malfunction, please contact your stockist or our customer service centre.
  • Page 16: Possible Malfunctions

    7. Possible Malfunctions Problem Cause Solution • Plug improperly inserted • Remove plug and reinsert into socket. properly into socket. • Safety fuse has discon- • Check fuses, connect device nected power source. to another socket. Does not cool • Power outage •...
  • Page 17: Waste Disposal

    NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
