Summary of Contents for Bartscher 1400T1S2

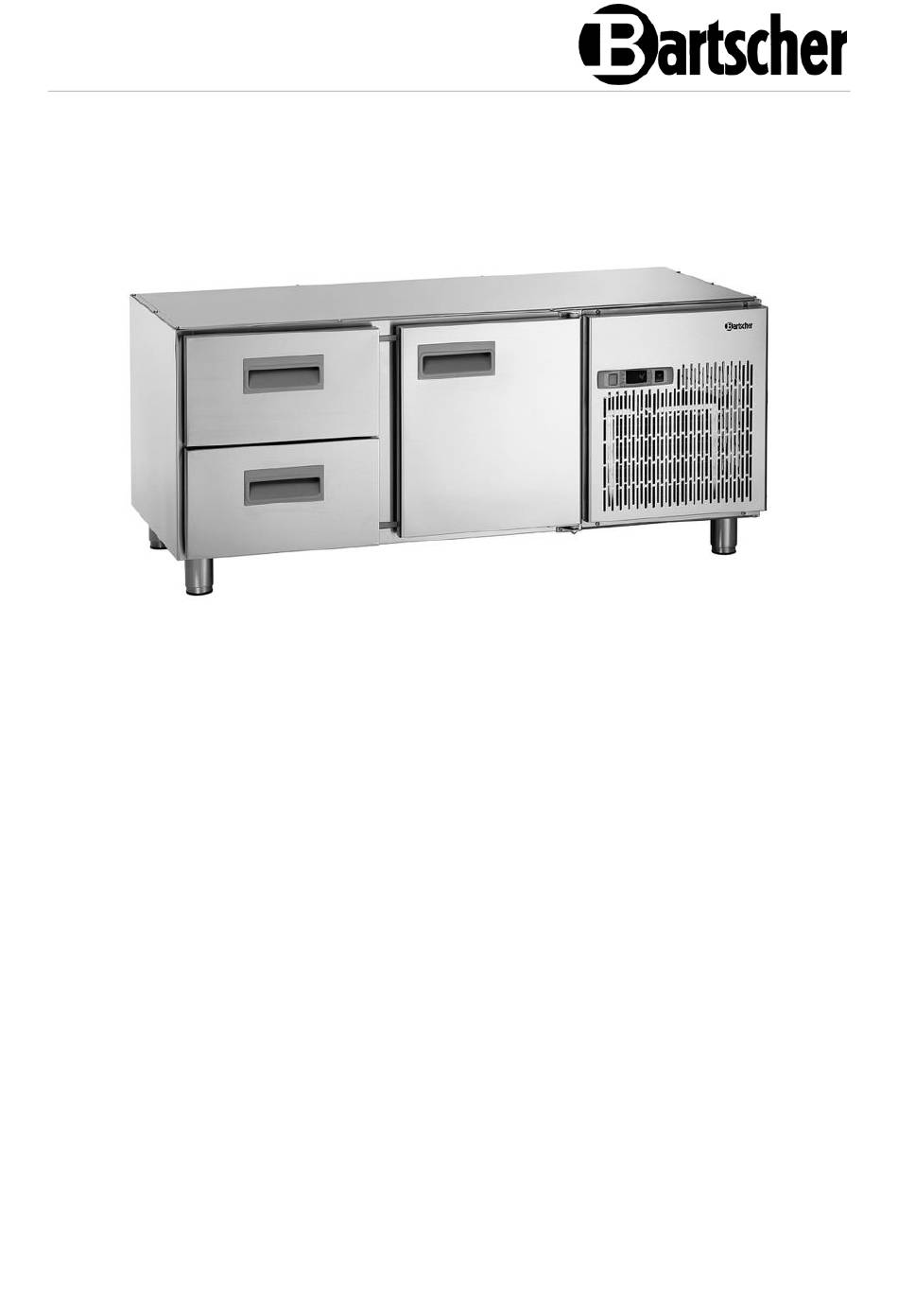

- Page 1 1400T1S2 110903...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-10-25...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling of suitable food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Refrigerated counter as Name: substructure 1400T1S2 110903 Art. No.: Material: Chrome-nickel steel Volume, in l: Number of cabinets: Cabinet dimensions (W x D x H), in mm: 388 x 540 x 454 Cabinet Gastro Norm:... -
Page 12: Functions Of The Appliance
Technical Data Version / Characteristics • Cooling: circulating air • Cooling cabinets and drawers • Temperature control: digital • Thermostat • Control: electronic, button • Digital display • ON/OFF switch • Indicator light: ON/OFF • Automatic defrosting function • Evaporation of condensed water •... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Housing 2. Digital temperature controller 3. ON/OFF switch with integrated 4. Ventilation openings power indicator light (green) 5. Height-adjustable feet (4 pcs) 6. Door 7. 1/1 GN rack 8. Drawer (2 pcs) 110903 11 / 24... -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 15 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y.
-
Page 16: Operation
Installation and operation • Prior to first use, the appliance should be installed and left standing upright for at least 2 hours, before it is connected to power supply. • After a power failure or when the plug is removed from the socket, do not reconnect the appliance to power supply for at least 5 minutes. - Page 17 Installation and operation Appliance Preparation and Start-Up 1. Before use, clean the appliance and accessories thoroughly, following indications in section 6 'Cleaning and Maintenance'. 2. To end with, dry the appliance and accessories thoroughly. 3. Plug the appliance into a suitable single socket. 4.
- Page 18 Installation and operation LED indicators The LED indicators in the digital display show the status of the active function: Status of the Meaning active function illuminates activated compressor flashes in delay illuminates defrosting in progress flashes defrosting delay illuminates fan activated flashes delay after defrosting illuminates...
- Page 19 Installation and operation Automatic defrosting The appliance defrosts automatically 4 times over 24-hour period. The timer initiates with the first activation. 1. If there is a need for the change of automatic defrosting phases, press the button and hold it for more than 2 seconds. The digital display shows the symbol.
- Page 20 Installation and operation Button combinations Concurrent pressing of two buttons enable activation/deactivation of a number of functions. Button locking or unlocking: – to lock, press both buttons concurrently and hold them pressed for more than 3 seconds, until the digital display shows the "OFF"...
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 22: Maintenance
Possible Malfunctions Maintenance The following operations should be regularly (weekly) performed by a qualified specialist, to provide for prolonged and correct operation of the refrigerating unit: 1. Condenser cleaning: – undo 4 screws of the protective grid at the front of the appliance; –... - Page 23 Possible Malfunctions Error Possible Cause Solution No cooling Plug improperly inserted Remove the plug and insert into socket. it properly in the socket Electric power supply safety Check the fuse, connect the fuse damaged appliance to another socket No power supply Check the electric power supply Damaged temperature...
-
Page 24: Disposal
Disposal Error Possible Cause Solution Strange or loud Appliance is not placed on Place the appliance on an noises an even surface even surface, level it with the use of the height- adjustable feet Doors/drawers are not Close doors/drawers tightly closed Appliance touches walls or Keep sufficient clearance...
