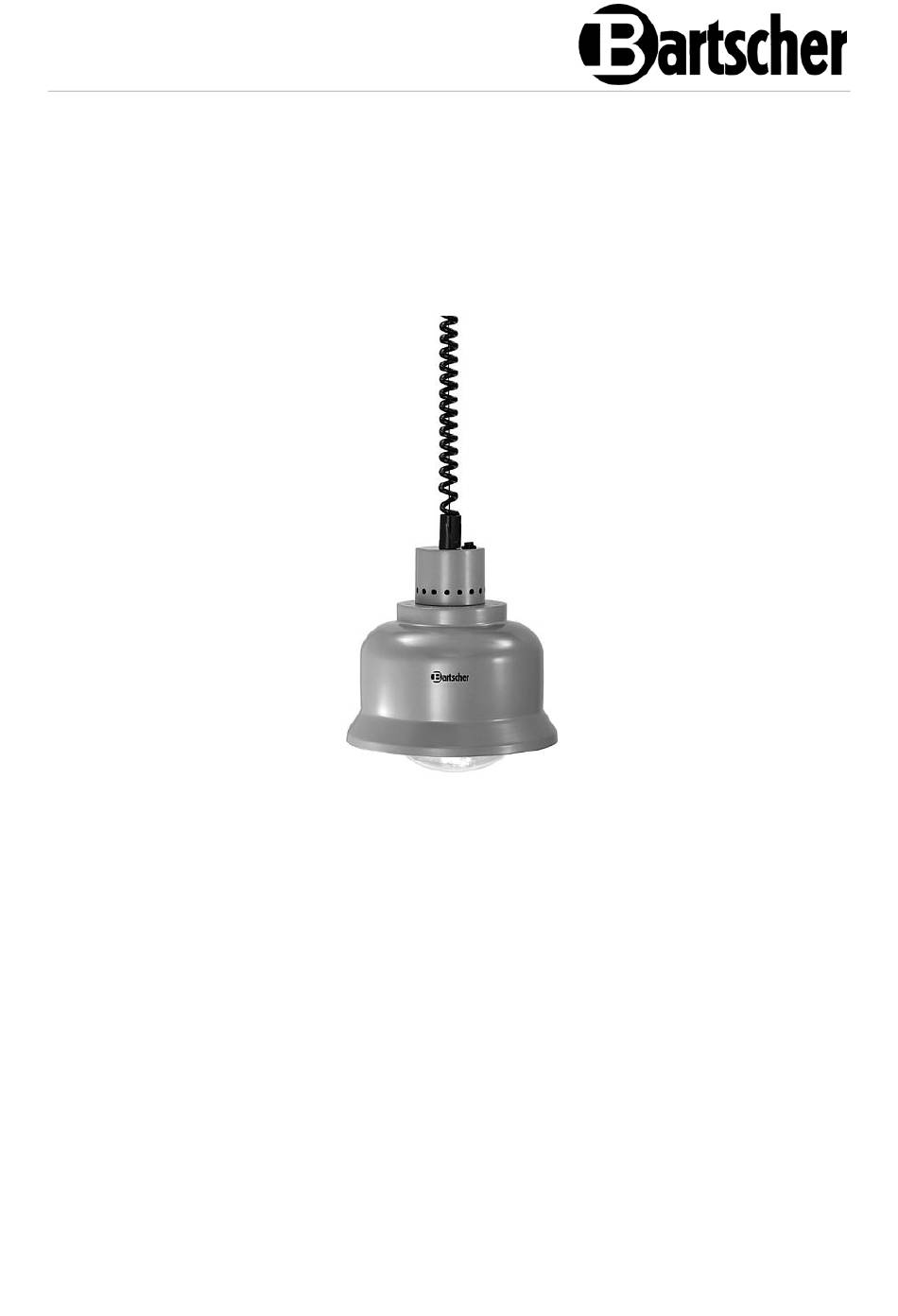

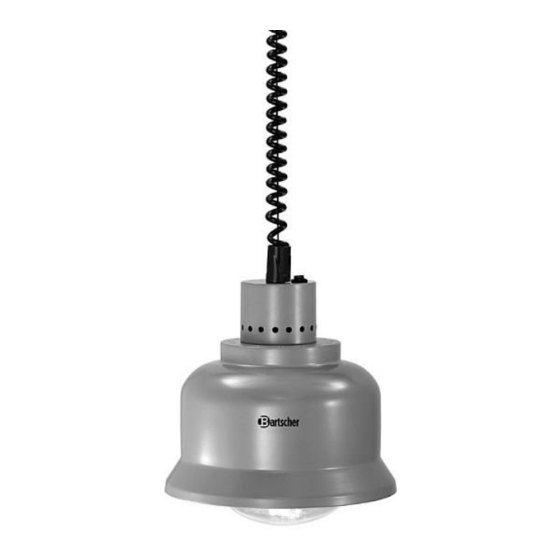

- Page 1 IWL250D SW - IWL250D KU - IWL250D GO - IWL250D SI - IWL250D CHR 114273 - 114274 - 114275 - 114278 - 114279...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 2.0 Date of preparation: 2020-05-06...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................5 General information ..................6 Liability and Warranty ................6 Copyright Protection ................6 Declaration of Conformity ................ 6 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
-
Page 7: Intended Use
Safety • Children should be supervised to ensure that they are not playing with or switching the appliance on. Improper use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used in a technically flawless condition, providing for safe use. -
Page 8: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 9: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 10: Technical Data
Technical Data Technical Data Technical Specifications Name: Heat lamp Model: IWL250D IWL250D IWL250D IWL250D IWL250D Art. No.: 114273 114274 114275 114278 114279 Colour: Black, Copper, Golden, Silver, Silver, matt high gloss high gloss matt high gloss Material: Stainless steel Fitting: Connection cable length, 650 - 1600... -
Page 11: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 1. Fascia cover 2. Spiral cable 3. Steel reflector 4. Infrared lamp 5. Lamp fitting 6. ON/OFF switch 114273 9 / 16... -
Page 12: Functions Of The Appliance
Technical Data Auxiliary equipment (not included in the delivery!) Infrared lamp, IWL250D-W Material: glass, metal Version: infrared, Philips Incandescent 230- 250 V BR125, colour of glass: clear Fitting: E27 Power supply: 0.25 kW / 230-250 V / 50 Hz Dimensions: W 125 x D 125 x H 173 mm Weight: 0.11 kg Art. -
Page 13: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. -
Page 14: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... -
Page 15: Cleaning
Cleaning 3. Using the pendulum stroke system, pull down the heat lamp to the required length. To this end, hold the heat lamp for the top part of the steel reflector. 4. Maintain clearance of approx. 30 cm between a plate with dishes and the heat lamp. -
Page 16: Cleaning
Possible Malfunctions Cleaning 1. Clean the appliance regularly after the end of each working day, or more frequently if needed. 2. Wipe the steel reflector and the spiral cable with a soft and dry or lightly moistened cloth. 3. In case of stubborn soiling, use a mild cleaning agent. 4.
