88 5538 194
Country Casual
Computer Cabinet
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

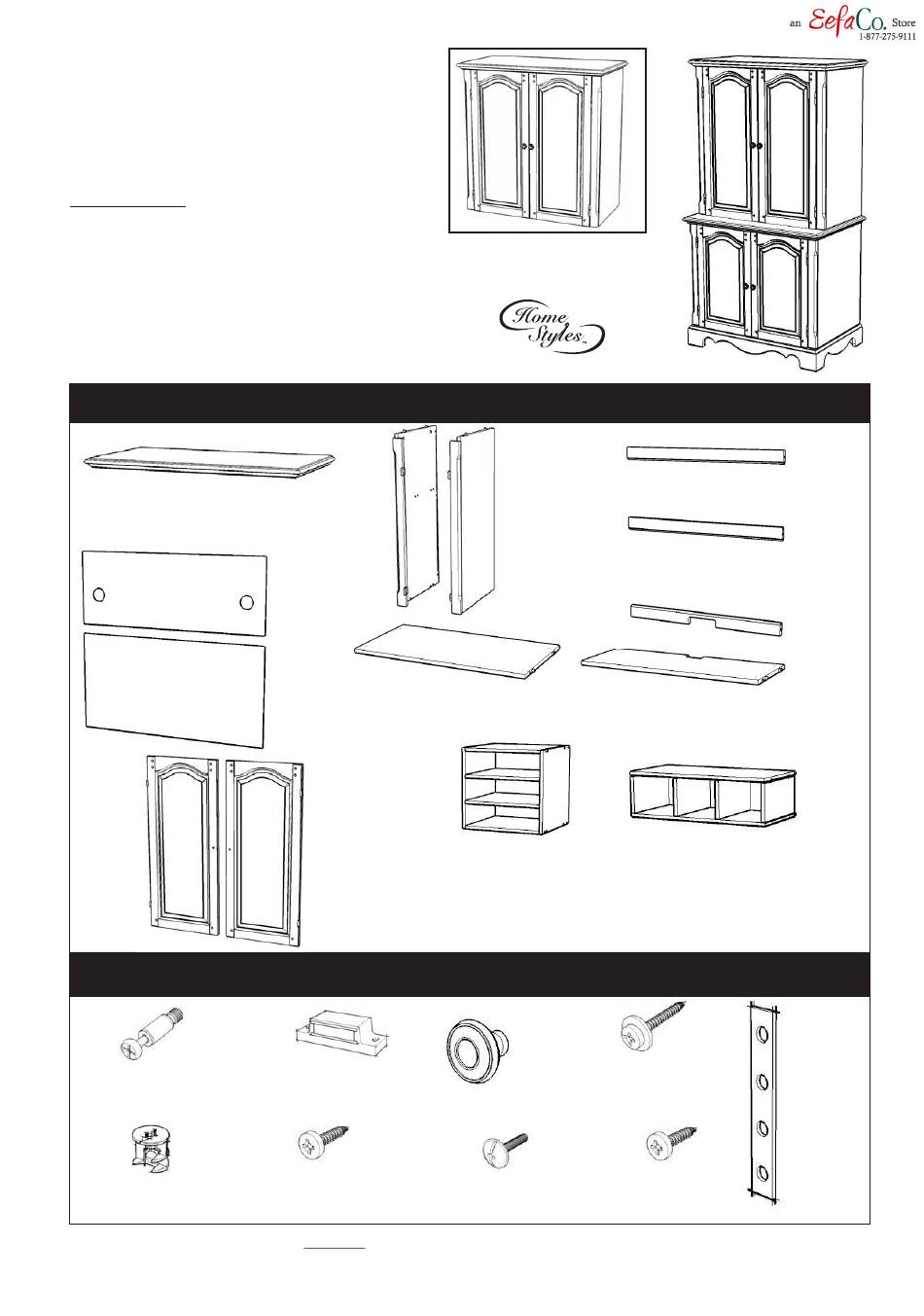

Part List

A.
Top
1 pc.
K.
Door
1 pc.

Hardware List

Cam Lock Screw
18 pcs.(+1 extra)
Cam Lock
18 pcs.(+1 extra)

Tools required for assembly : Phillips screwdriver

B.
Side Panel
1 pc.
G.
Back Panel
1 pc.
I.
H.
Base
Back Panel
1 pc.
1 pc.
L.
Door
1 pc.
Magnet
2 pcs.
Wood Screw
40 pcs. (+1 extra)
Hutch Unit
C.
Side Panel
1 pc.
J.
Shelf
1 pc.
N.
M.
Media Box
Media Box
2 pcs.
1 pc.
(Knock-Down Construction, please refer to page No. 5/6 and 6/6 of these instructions
for steps to assemble Media Box)
Wood Screw
Pull Handle
for Back Panel
2 pcs.
12 pcs.(+1 extra)
Machine Screw
2 pcs.(+1 extra)
D.
Stretcher
1 pc.
E.
Stretcher
1 pc.
F.
Stretcher
1 pc.
Steel Plate
Connecter
2 pcs.
Wood Screw
for Steel Plate
4 pcs.(+1 extra)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Country Casual 88 5538 194 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Country Casual 88 5538 194

  • Page 1 88 5538 194 Country Casual Computer Cabinet IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches Hutch Unit or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2 Assembly Instructions 2/6 IMPORTANT Do not tighten up all the screws until each part is properly assembled. Wood Screw Magnet STEP 1 Attach 2X Magnets to pre-drilled holes of Top (A) with Wood Screws. Insert Cam Lock Screws into the pre-drilled holes of Top (A), Side Panel (B) and (C) Cam Lock Screw...
  • Page 3 Assembly Instructions 3/6 Figure 1 STEP 2 Cam Lock Attach Shelf (J) and Base (I) onto Side Panel (B) with Cam Locks. (see Figure 1) Cam Lock Screw STEP 3 Attach Stretcher (D), (E) and (F) to the unit with Cam Locks. Slide Back Panels (H) and (G) into the unit.
  • Page 4 Assembly Instructions 4/6 Cam Lock Machine Screw Figure 2 Figure 3 STEP 5 Place Top (A) onto the unit, using Cam Locks. Slide Media Box (N) and (M) into position. Attach Doors (K) and (L) by sliding the door lift hinges into the side panels lift hinges. (See figure 2) Assemble Pull Handles to Doors (K) and (L) with Machine Screws.
  • Page 5 Assembly Instructions 5/6 Media Box (M) STEP 1 Attach M3 to M1, using Phillips screw driver wood screws (4X) tighten halfway then attach M1 to unit, using M3 M3 wood screws (4X) tighten halfway. (see Figure 1) Figure 1 STEP 2 Slide M2 into the grooves in M1.
  • Page 6 Assembly Instructions 6/6 Media Box (N) STEP 1 Attach N3 to N1, using Phillips screw driver wood screws (4X) tighten halfway then attach N1 to unit, using wood screws (4X) tighten halfway. (see Figure 1) Figure 1 STEP 2 Slide N2 into the grooves in N1. (see Figure 2) Figure 2 STEP 3...
