Specifications
Dimensions Manual Pull Station: 5 ½" H x 4 1/8" W x 1 3/8" D
Nominal Operating Voltage: 15-30 VDC
Maximum alarm Current: 3.3 mA
Standby current: 2 mA
Electrical rating for MPS-802MP Maglok terminal: 1 Amp @ 30 VDC

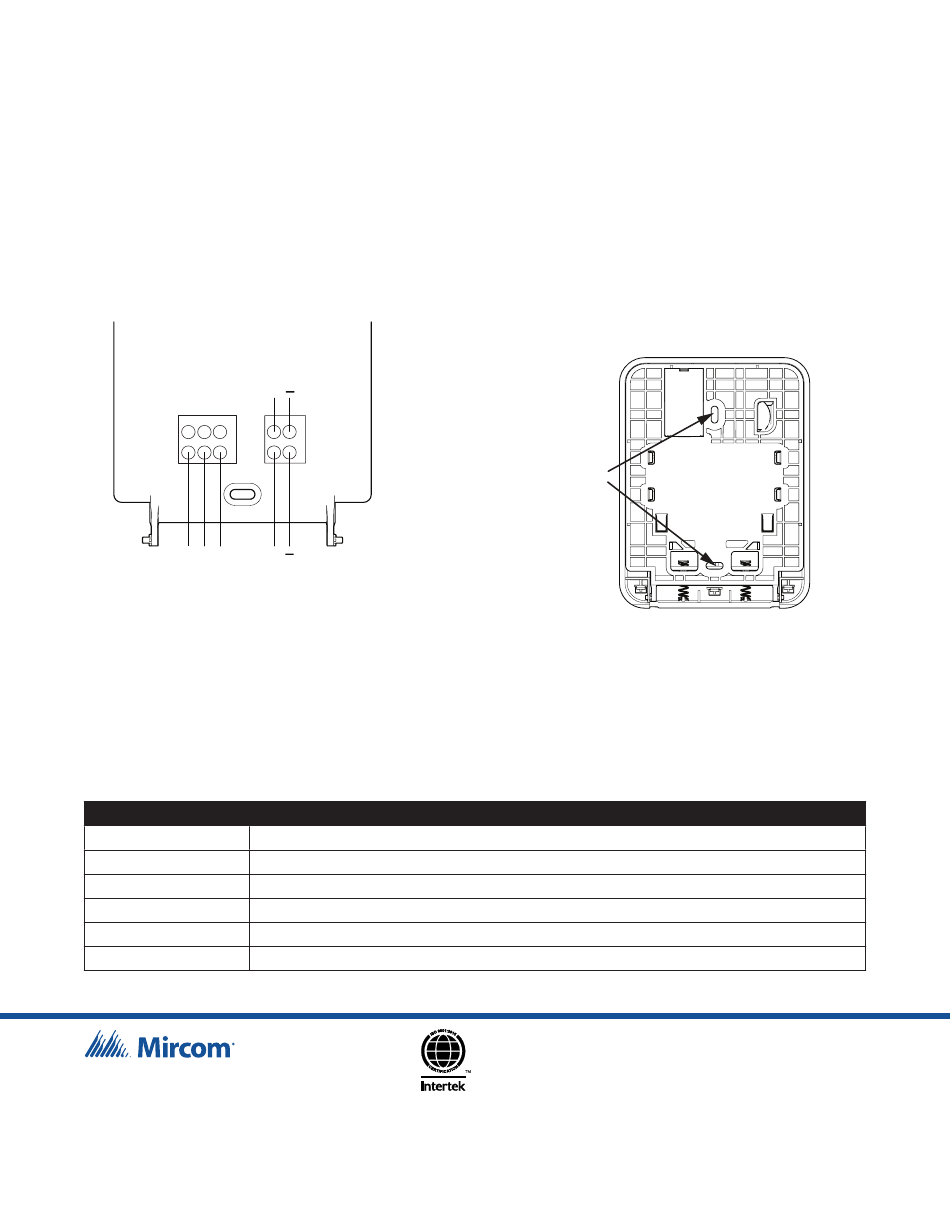

Wiring Diagram
NC C NO
TO MAGLOCK
(MPS-822MP)
NC C NO
TO MAGLOCK
(MPS-822MP)
Ordering Information
Model Description
MPS-810MP MP 1 Stage Addressable Double Action Pull Station, ULC
MPS-810MPU MP 1 Stage Addressable Double Action Pull Station, UL
MPS-802MP MP 2 Stage Addressable Pull Station, ULC
MPS-822MP MP Maglock 2 Stage Double Action Pull Station, ULC
MIX-4090 4000 Series Address Programmer
BB-800 Surface Backbox for 800 Series Manual Station
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113
www.mircom.com
FROM
PREVIOUS
STATION
FROM
+
PREVIOUS
STATION
+
+
TO NEXT STATION OR
LEAVE IT EMPTY
+
TO NEXT STATION OR
LEAVE IT EMPTY
Mounting Diagram
Flush mount indoor: Single-gang electrical box
•
Surface mount indoor: BB-800 backbox
•
MOUNTING
HOLES
MOUNTING
HOLES
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND
NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing
and certification, refer to technical literature. This document contains intellectual property of
Mircom. The information is subject to change by Mircom without notice. Mircom does not
represent or warrant correctness or completeness. All rights reserved. All other trademarks
and registered trademarks are properties of their respective owners.
CAT. 5964
Rev. 0
