INSTALLATION AND MAINTENANCE INSTRUCTIONS
MIX-4090 DEVICE PROGRAMMER
ABOUT THIS MANUAL
This manual is included as a quick reference for use of the device to
set addresses on sensors and modules in the MIX-4000 series.
Note: This manual should be left with the owner/operator of this
equipment
Description:
The MIX-4090 programmer is used to set or read addresses of MIX-
4000 devices. It can also read devices' parameters such as device
type, firmware version, condition and thermal settings. The
programmer is small and lightweight and has a built-in base for heat
and smoke detectors, see figure 2. A plug-in cable is supplied to
program permanently wired devices, see figure 4. Basic functions are
quickly accessible through four keys: Read, Write, Up and Down. A 2
x 8 characters LCD will display all required information without need
for an external screen or PC, see figure 1.

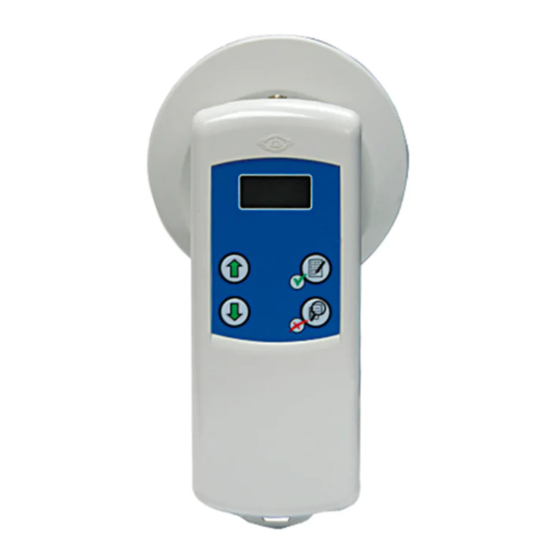

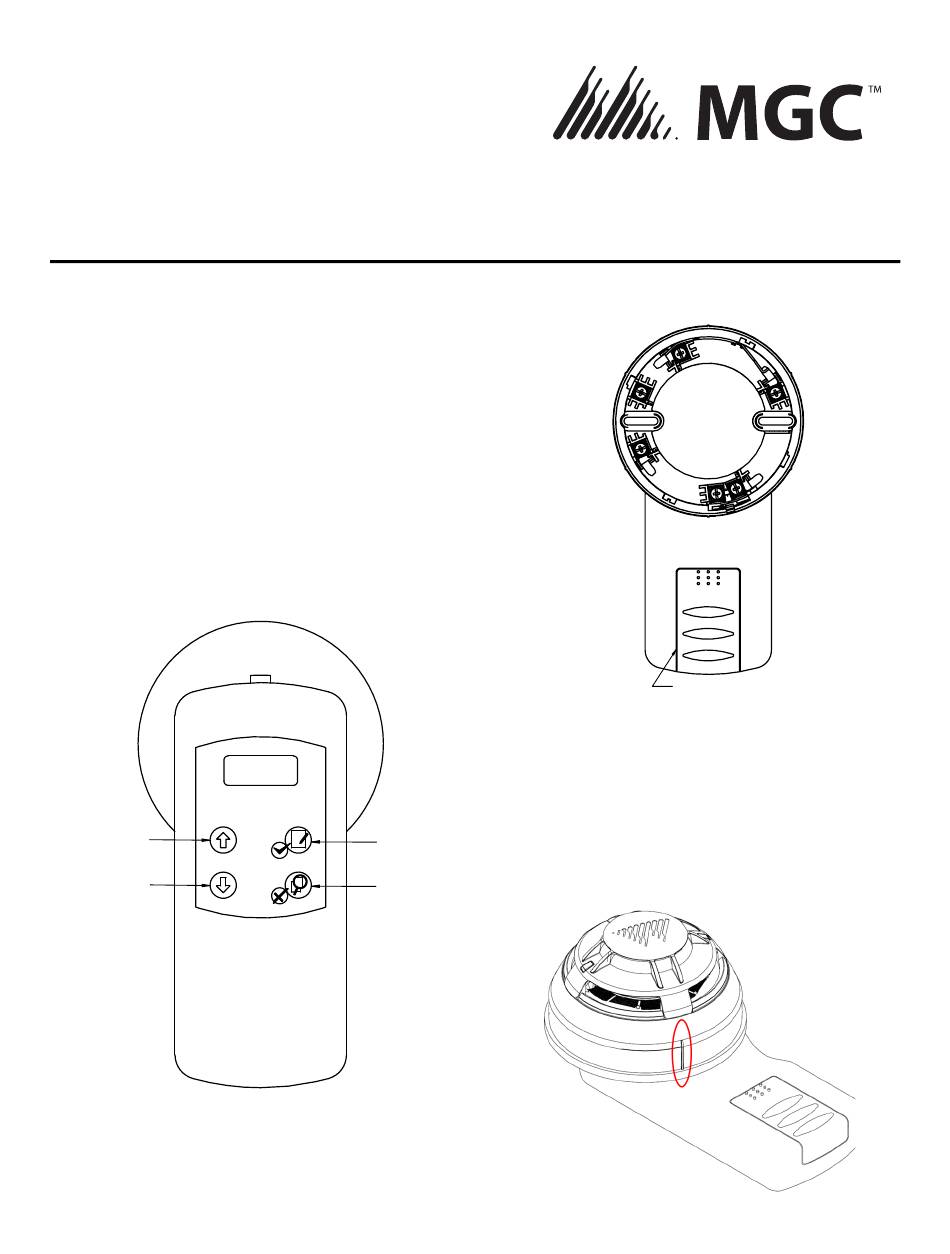

FIGURE 1 PROGRAMMER FRONT:
UP
DOWN
The unit uses an inexpensive 9V PP3 size (6LR61, 1604A) alkaline
battery and will automatically shut down when the unit is unused for
more than 30 seconds. Start-up time is only 5 seconds. Remaining
battery capacity will be displayed each time the device is used. The
LT‐6146 rev 1.1 7/16/19
battery is easily accessible through a sliding cover at the bottom of
the unit, shown in figure 2.
FIGURE 2 PROGRAMMER BACK:
Address programming (Devices with bases):
Warning: Do not disconnect a device during address storing
operation. This may damage the device.
Install the device in the programmer's base with the bar on the
device about 3/8" (7mm) to the right of the bar on the base: The
WRITE
device should drop in the base without effort. Push on the device and
turn it clockwise until the two bars are aligned, see figure 3.
READ
FIGURE 3 ALIGN BARS:
25 Interchange way, Vaughan Ontario. L4K 5W3
Phone: 905.660.4655; Fax: 905.660.4113
Web: www.mircom.com
9V Battery cover
