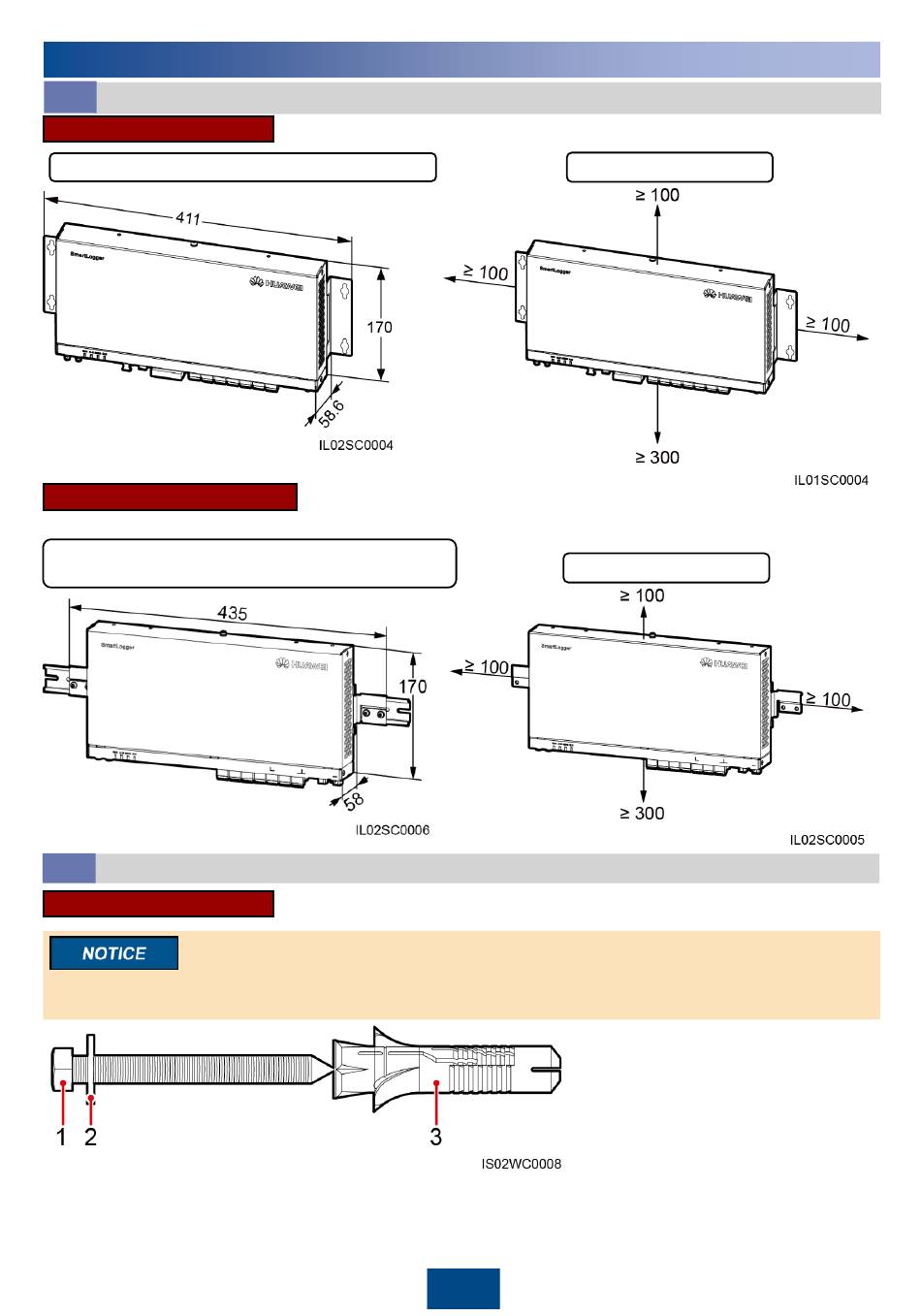

Installing the SmartLogger
3.1
Installation Space (Unit: mm)
Wall-mounting
Chassis dimensions (including mounting ears)
Guide rail-mounting
Chassis dimensions
(including the guide rail mounting brackets)
3.2
Installation Mode
Wall-mounting
Install the SmartLogger on a wall that is flat and has the bearing capacity to securely hold the
SmartLogger.
Installation clearances
Installation clearances
Screw assembly for wall-mounting:
(1) ST3.5 tapping screw
(2) Washer
(3) Expansion sleeve
6
