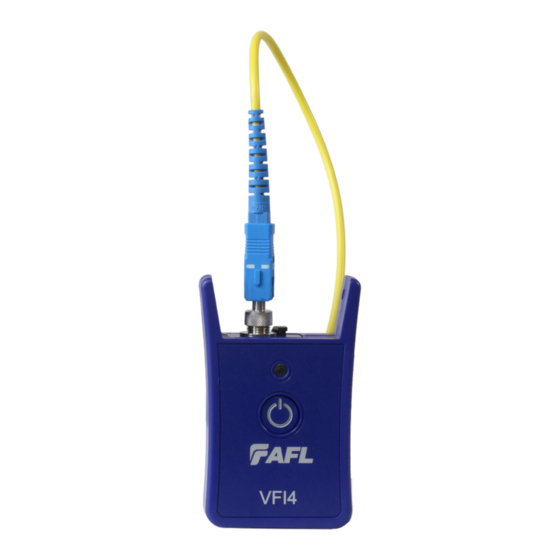

VFI4 Visual Fault Identifier
The VFI4 is a visible red laser source designed to troubleshoot faults on fiber
optic cables.

Inspecting Cables

Note: Clean connectors on cables before connecting them to VFI4!
Attach the inspected cable to the 2.5 mm (or 1.25 mm) Universal adapter
installed on the VFI4 optical port.
When the VFI4 is Off to turn it On in either mode:
– 2 Hz mode: Press and hold the On/Off button for 1.5 seconds
– CW mode: Press and hold the On/Off button for 3 seconds
Green LED will illuminate to indicate that VFI4 is on.
Observe the inspected cable for faults.
Press the On/Off button to turn the VFI4 off.

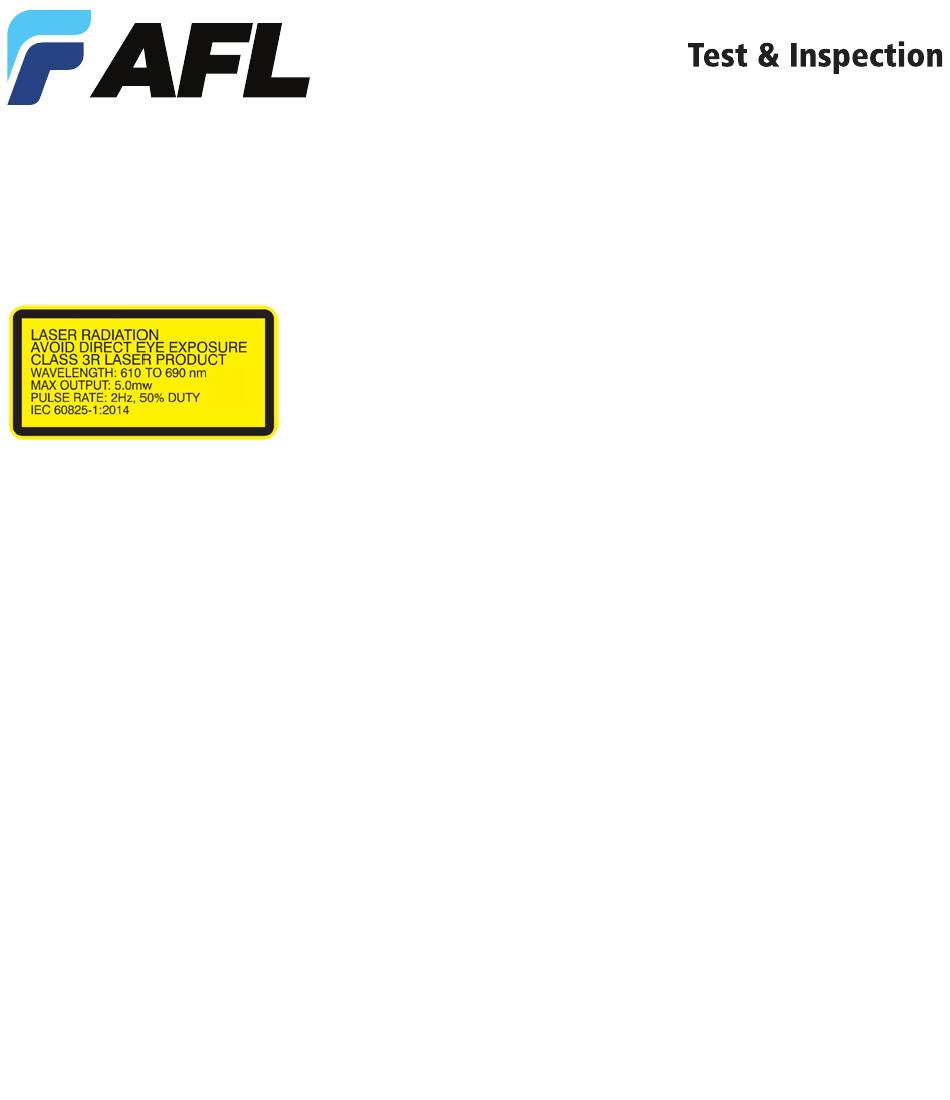

Warning! The VFI4 is a registered
FDA Class IIIa/IEC Class 3R Laser Product.
Never look directly into optical output!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFI4 and is the answer not in the manual?

Questions and answers

Summary of Contents for AFL VFI4

  • Page 1 VFI4 Visual Fault Identifier The VFI4 is a visible red laser source designed to troubleshoot faults on fiber optic cables. Warning! The VFI4 is a registered FDA Class IIIa/IEC Class 3R Laser Product. Never look directly into optical output! Inspecting Cables Note: Clean connectors on cables before connecting them to VFI4! Attach the inspected cable to the 2.5 mm (or 1.25 mm) Universal adapter...
  • Page 2 Replace the side battery door. • Note: The VFI4 contains no user serviceable parts. Except for changing batteries, this instrument must be returned to AFL for repair. Cleaning Optical Output Use lint-free optical cleaning wipes such as AFL FiberWipes and optical quality cleaning fluid such as AFL FCC2 connector cleaning fluid.
