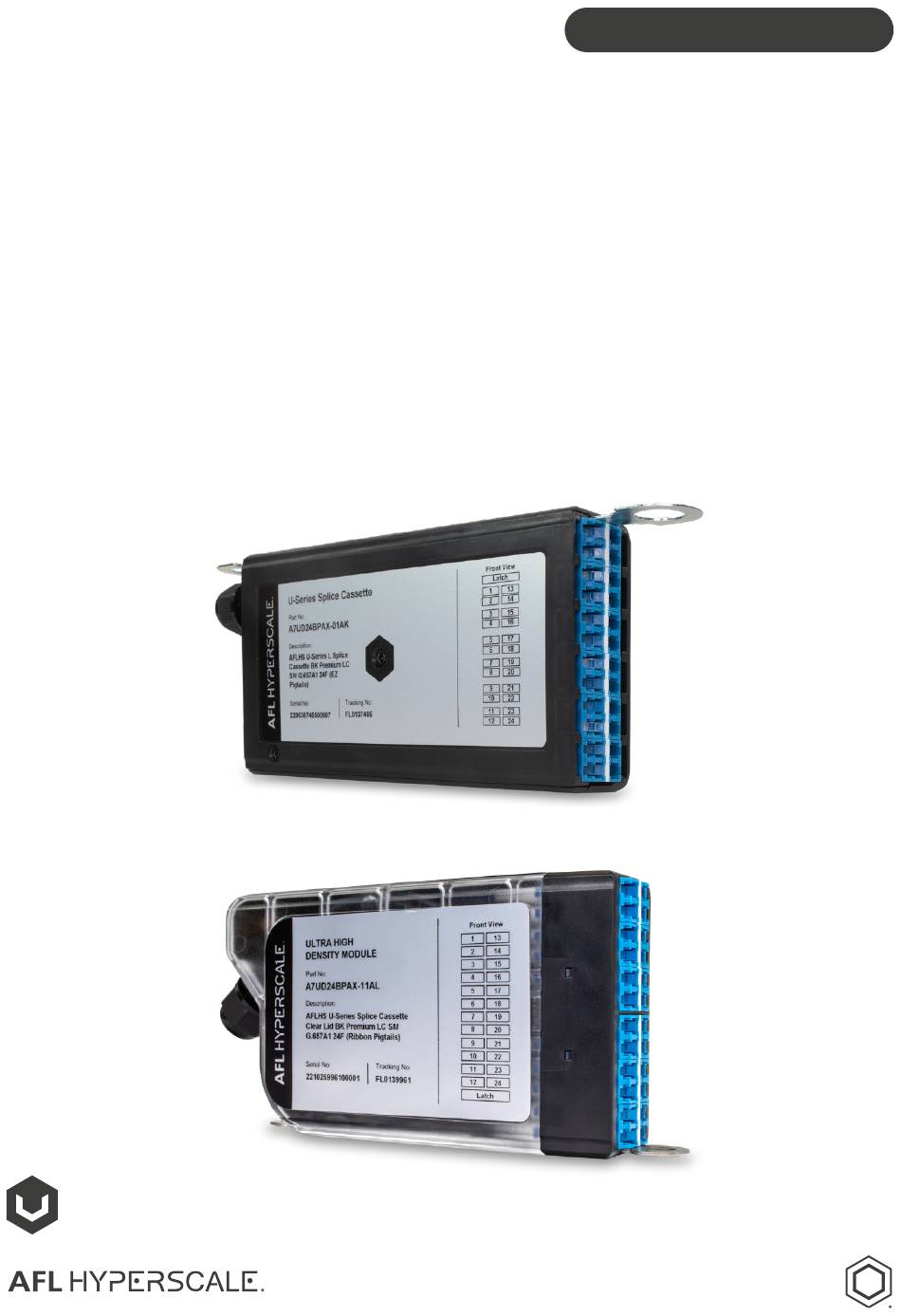

- Page 1 Installation Guide U-Series Splice Cassettes U-Series Splice and Mass Ribbon Splice Cassette Series...
- Page 2 Never look into the end of a fiber or connector which may have a laser coupled to it. Should accidental eye exposure to laser light be suspected, arrange for an eye examination immediately. © AFL Hyperscale. All rights reserved Series...
- Page 3 Single Fiber Splice Cassette Item Number Item U-Series Splice Cassette Single Fiber Splice Protectors (01) U-Series Splice Cassette Test Certificate (02) Single Fiber Splice Protectors (03) Test Certificate What You Will Need Cross-Head Screwdriver © AFL Hyperscale. All rights reserved Series...
- Page 4 Single Fiber Splice Cassette To open the cassette, remove the two screws Firmly hold the latch tab and gently pull back from the lid. the cover. Cable Entry Splice Holders Bend Limiting Management © AFL Hyperscale. All rights reserved Series...
- Page 5 To simplify preparation, installation, and Group the fibers from the cable together into splicing, the adapters can be removed from bundles 1-12 and 13-24. Repeat the process for the cassette. the pigtails. © AFL Hyperscale. All rights reserved Series...
- Page 6 Prior closing the cassette, check that all of the adapters are securely seated in place. Closing the Perform the splicing and install the prepared cassette will be obstructed if the adapters are splice protectors into the splice holders. incorrectly located. © AFL Hyperscale. All rights reserved Series...
- Page 7 Single Fiber Splice Cassette If the latch was removed from cassette, please Re-fit the lid and secure the cassette using check that the chamfered side is facing the the two screws. cassette interior when replaced. © AFL Hyperscale. All rights reserved Series...
- Page 8 UHD ODF Splice Module Clear Lid Black Premium LC OM4 12F (Ribbon Pigtials) Serial No: Tracking No: 191226169800003 FL0111698 Latch ST 3X8mm Cross-Head Screws (04) ST 3X8mm (03) Cover Label Cross-Head Screws What You Will Need Cross-Head Screwdriver © AFL Hyperscale. All rights reserved Series...
- Page 9 Input cable and pigtail later on to secure the cable to the holder - 5 cm should be should meet in the middle of the splice protector. enough. © AFL Hyperscale. All rights reserved Series...
- Page 10 Note: We recommend coiling the fibers from the cable clockwise Place the label on the lid, ensuring that the latch Secure the lid with the two screws provided. Do not over-tighten. orientation is the same. © AFL Hyperscale. All rights reserved Series...
- Page 11 Notes...
- Page 12 Thank you for choosing AFL Hyperscale AFL Hyperscale reserves the right to make changes in this Installation Guide at any time without notice www.aflhyperscale.com AFLHSUSERIESSPLCAS021122...
