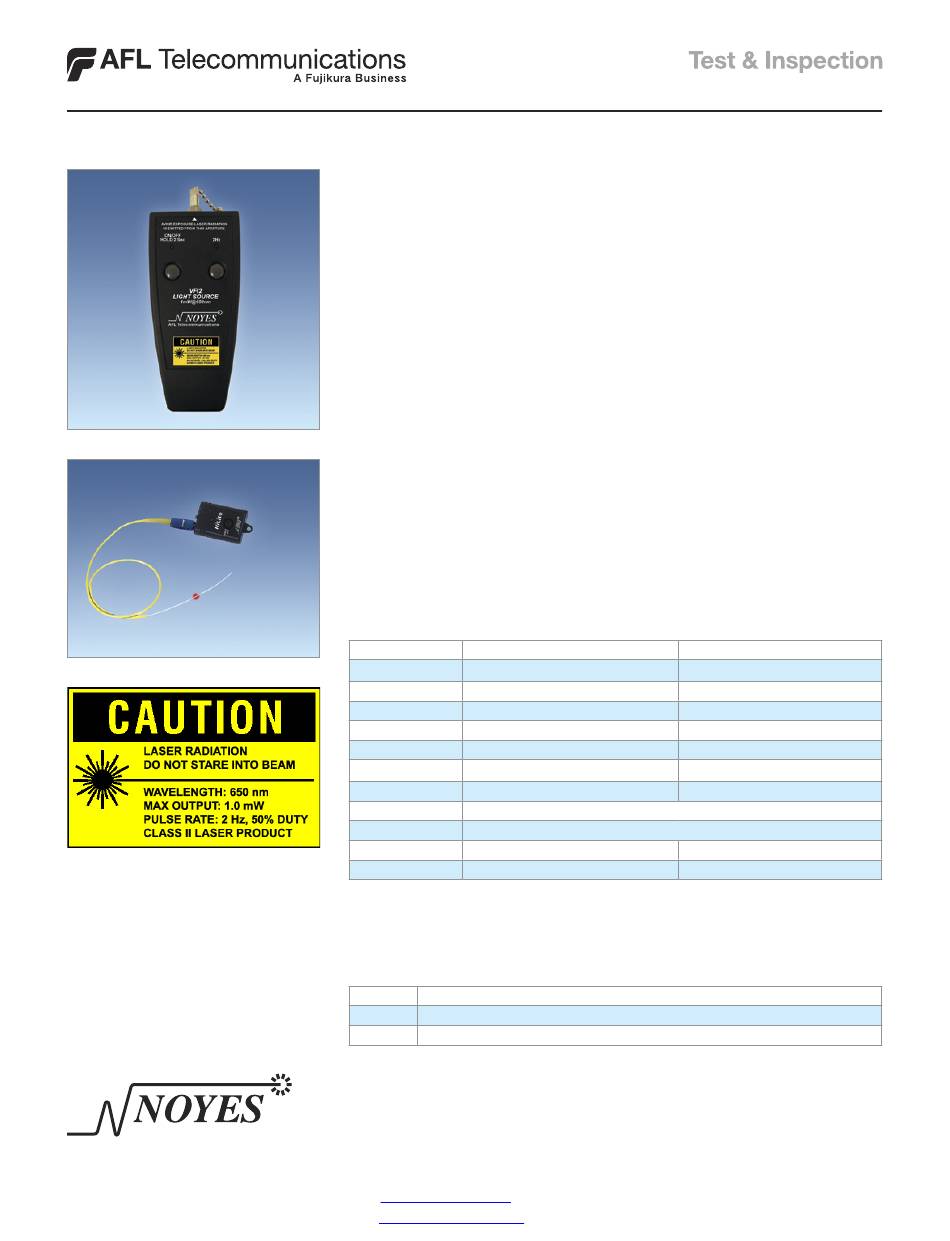

HiLite and VFI2 Visual Fault Identifiers

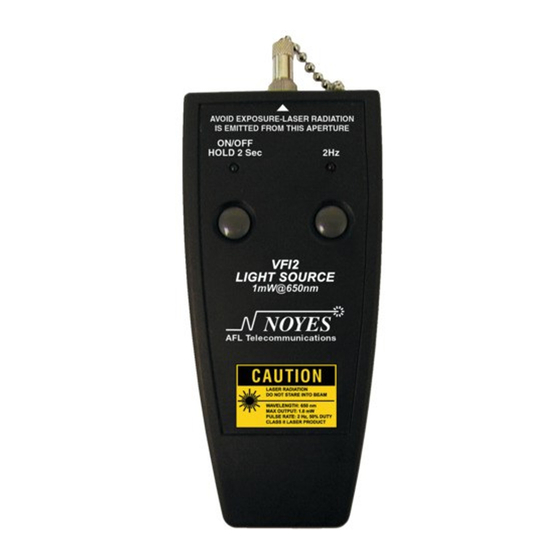

The HiLite and VFI 2 are compact but powerful visible red laser sources designed to
troubleshoot faults on fiber optic cables. Light generated by these units will escape from
sharp bends and breaks in jacketed or bare fibers, as well as poorly mated connectors.
They can identify faults in fiber optic jumper cables, distribution frames, patch panels, and
splice trays.
The HiLite and VFI 2 are an excellent complement to an OTDR because they can locate
faults inside the OTDR's dead-zone. Other applications include end-to-end continuity
checks, identifying connectors in patch panels and fibers during splicing operations. The
universal connector interface provides fast operation with many connector styles without
VFI 2
changing an adapter.

Features

• 650 nm visible red laser source
• Compact size
• Universal connector interface for quick
connection
• High power (1 mW)
Specifications
HiLite
Optical
Emitter type
Wavelength
Output power
Modulation
General
Connector type
Power
Operating temperature
Storage temperature
Size (H x W x D)
Weight
*
FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1 amended Q2, 2001.
**
Accepts 2.5 mm ferule connectors ( SC, FC, ST,

Ordering Information

Model Includes
VFI 2 VFI 2 unit, instruction card, and carrying case.
HiLite HiLite unit, instruction card, and carrying case.
www.all-spec.com
sales@all-spec.com
VFI 2
*
Laser (FDA and IEC Class II)
650 nm ± 10 nm
1 mW (into single-mode fiber)
2 Hz or CW selected
Universal adapter (2.5 mm included)
2 AA alkaline batteries (60 hours typical)
10 to 35°C, 85% humidity non condensing
0 to 50°C, 95% humidity non condensing
5.5 x 2.4 x 1.3 in (14.0 x 6.2 x 3.2 cm)
7.06 oz (< 200 g)
E2000
)
© 2002, AFL Telecommunications, all rights reserved. VFI3-00-2000 Revision J, 8.17.05
PH: 800-537-0351
FX: 800-379-9903
HiLite
*
Laser (FDA and IEC Class II)
650 nm ± 10 nm
1 mW (into single-mode fiber)
2 Hz
**
2.5 mm fixed
1 AAA alkaline battery (4 hours typical)
2.8 x 1.4 x 0.6 in (7.0 x 3.6 x 1.5 cm)
1.75 oz (50 g)
Specifications are subject to change without notice.
