AFL OFI-BI Instruction Manual

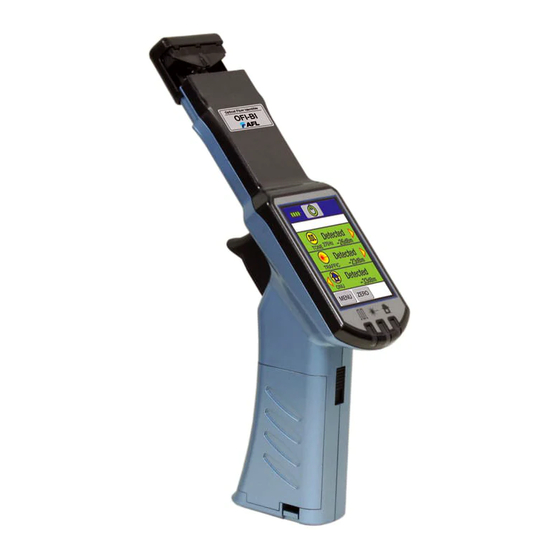

Optical fiber identifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL

OPTICAL FIBER
Read this instruction manual carefully
before operating the equipment.
Adhere to all safety instructions and
warnings contained in this manual.
Keep this manual in a safe place.
External light detecting function
When external light such as sunlight is detected, both sides of the direction
indicator will turn on simultaneously. In case the external light is strong,
identifier function will not perform properly, so please cover the plunger
portion by hand and this will solve the problem.
Please refer to Page 25 for details.
ONU detecting function
When you see the message "Require optimization for use in your region"
or don't find appropriate settings after accessing the "ONU Setup" menu,
this means the function is not activated yet in your region. After obtaining
the ONU signal in your region, AFL will release a firmware upgrade to
activate the function for the OFI-BI. Please consult your local AFL
distributor for more information.
IDENTIFIER
OFI-BI
NOTE
KSP74-0119-16-14 (2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFI-BI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AFL OFI-BI

Summary of Contents for AFL OFI-BI

  • Page 1: Instruction Manual

    “ONU Setup” menu, this means the function is not activated yet in your region. After obtaining the ONU signal in your region, AFL will release a firmware upgrade to activate the function for the OFI-BI. Please consult your local AFL...

  • Page 2: Table Of Contents

    3． Power Supply ......................11 Battery Operation ...................... 11 Description ....................12 1． Outline of Identifier Operation ................12 2． Functions of OFI-BI ....................13 3． Display of OFI-BI ....................14 Identifier Function ..................14 1． Cleaning the Optical Detector ................15 2．...
  • Page 3 Table of Contents Before Storing in the Case ................31 1． Storing in the Case ....................32 Specifications ....................33...

  • Page 4: Warnings And Cautions

    Warnings and Cautions The OFI-BI has been designed for discriminating signals in optical fibers. Do not attempt to use this instrument for other applications. AFL gives much consideration and regard to personal injury. Misuse of the instrument may result in electric shock and/or serious personal injury.
  • Page 5 Warnings and Cautions WARNINGS Remove the battery from the equipment immediately if user observes the following or if the Identifier exhibits the following faults:  Fumes, bad smell, noise or if over-heating occurs.  Liquid or foreign matter falls into the interior of the Identifier. ...
  • Page 6 Warnings and Cautions CAUTIONS Do not store the Identifier under direct sunlight. This may result in equipment failure. Do not place heavy weight on the Identifier. This may result in equipment failure, electric shock and fire. Remove the batteries from the equipment when not using it for a long time. Keeping the batteries in the equipment may cause the batteries to leak and damage the equipment.

  • Page 7: Recycling And Disposal

    Recycling and Disposal RECYCLING AND DISPOSAL In European Union In accordance with the European Parliament Directive 2002/96/EC, electrical parts and materials that can be re-used and/or recycled have been identified in order that the use of new resources and the amount of waste going for landfill can be minimised.
  • Page 8 -------------------------------------Blank Page-------------------------------------...

  • Page 9: Composition

    Composition ． Components Name Model Appearance & Comments Optical Fiber OFI-BI-E Identifier Plunger PL-06 Case OFI-CASE-01 Instruction Manual IM-BIPM/BI Quick Reference － QR-BIPM/BI-E Guide...

  • Page 10: 2． Description And Function

    Composition ． Description and Function Clamping Trigger Battery Cover OFI-BI Side Surface Optical Plunger Cover Detector Plunger Portion ONU Indicator Tone Indicator Traffic Indicator OFI-BI Front Side...
  • Page 11 Composition Trigger Hold Function Switch OFI-BI Back Side Strap Hook OFI-BI Bottom Side Prevent dropping the OFI-BI by attaching a strap when working from height. Dropping the OFI-BI may cause personal injury.

  • Page 12: 3． Power Supply

    ． Power Supply Battery Operation (1) Lift and remove the battery cover on the reverse side of the OFI-BI. (2) Place batteries into the battery compartment on the orientation imprinted side of the compartment. (3) Put on the battery cover.

  • Page 13: Description

    The tone signal light source is connected to one end of an optical fiber to be monitored and incidence of the light is carried along the fiber. At the working place, the OFI-BI clamps the relevant optical fiber and light signals propagate from the bend and are detected by sensors within the OFI-BI.

  • Page 14: 2． Functions Of Ofi-Bi

    Description ． Functions of OFI-BI OFI-BI has the following function. (1) Identifier Function  The indicator LEDs representing the type of input light when the device detects any tone signal, traffic light or ONU signal. The buzzer also sounds to inform any input is detected.

  • Page 15: 3． Display Of Ofi-Bi

    Zeroing Measurement result Detected: This indicates that the OFI-BI detects a tone signal or traffic light. No Signal: This indicates that the OFI-BI detects no signal. LCD may have a few points of black dot or bright dot. And seeing display may be hard depend on viewing angle.

  • Page 16: 1． Cleaning The Optical Detector

    How to Attach the Plunger (1) Put the plunger down onto the two retaining pins. (2) Hold both sides of the plunger cover and set its ends to the groove of the OFI-BI body. Then push it in till it clicks.

  • Page 17: 3． Zeroing

    “ZEROING” disappears. Now Zeroing (indicator blinks) (3) The zeroing function finishes after a few seconds. If there is no error, the OFI-BI beeps 1 time and shows “- - -” (Under Range). If an error occurs, the OFI-BI beeps 3 times and shows “-E1-” that blinks intermittently. To quit from the error indication, press the ZERO key again.

  • Page 18: 4． Signal Selection

    Different combinations of signal types can be selected in Identifier Setup menus. * Default : 270Hz,1kHz,2kHz and Traffic (detect all but ONU) 4.1 How to confirm settings (1) Pull the trigger to turn on the OFI-BI. (2) Press the MENU key. (3) Tap the Identifier Setup box.
  • Page 19 Identifier Function 4.2 How to change settings (1) Pull the trigger to turn on the OFI-BI. (2) Press the MENU key. (3) Tap the Identifier Setup box. Select Setup menu Press Menu Select light Yellow ：Item is selected ：Item is not selected Gray (4) The detection setting toggles by tapping a box labeled with corresponding light type.

  • Page 20: 5． Trigger Hold

    Identifier Function ． Trigger Hold The OFI-BI has the Trigger Hold function which enables fatigue free hold of the trigger. The function is active when the switch on the back of the grip is switched upwards. Enable Disable Trigger Hold Enable...

  • Page 21: 6． Measurement Mode

    The OFI-BI has FAST, NORMAL and FINE mode for measurement mode which determines the detecting sensitivity for signals. Since the sensitivity on FINE mode is about 20 times as high as NORMAL mode, the OFI-BI can detect lesser faint signals with the FINE mode.

  • Page 22: Measurement

    Hold the fiber in the fiber groove correctly when pulling the trigger. Incorrect clamping may cause damage to the fiber. (3) The OFI-BI estimates the power of signals transmitting through the fiber cable by measuring leaked light from clamping point and then informs the measurement result by LED indicators and the buzzer.
  • Page 23 ■ If the optical power for the optical detector exceeds the upper limit of the device, OFI-BI displays “+++” on the screen and the direction indicator turns off. ■ If foreign external light is present, the light signal in the fiber may not be detected.
  • Page 24 Measurement Indication ■TONE / TRAFFIC indicator The TONE indicator and the TRAFFIC indicator shows the status of each tone signal/traffic light signal by green or red light. Corresponding signal is detected : Indicator lights turn green Corresponding signal is not detected : Indicator lights turn red *In case ONU detection is OFF Example: Tone signal(s) is/are detected Example: No signal is detected...
  • Page 25 Measurement ■Simultaneous Detecting Function (different frequency of tone signals) When the OFI-BI finds multiple tone signals simultaneously, you can check the optical power and propagation direction of each of the tone signals by tapping the measurement result area. Example: in case there are 270Hz and 1kHz tone signals...

  • Page 26: 2． Detecting External Light

    Measurement ． Detecting external light It is recommended to turn off the detection setting for the traffic (CW) light in case it is not necessary. Since the strong external light doesn’t affect the measurement of tone signals very much, it is possible to avoid the bothersome steps of detecting external light →...

  • Page 27: Other Functions

    ． Auto Power Off Function In order to save battery life, the OFI-BI has the Auto Power Off function that shuts down the power of the OFI-BI automatically in case the trigger is unlocked and released and also there is no operation for the touch panel while the time defined in the Auto Power Off menu in the Utility menu.

  • Page 28: 3． Buzzer Volume

    Press the ESC key instead of ENT(⏎) key if you would like to cancel the input and quit from the menu. The OFI-BI will not save the modified setting in this case. (7) Press the ESC key to go back to the ID Mode from the Utility Menu.

  • Page 29: 4． Display Time

    Press the ESC key instead of ENT(⏎) key if you would like to cancel the input and quit from the menu. The OFI-BI will not save the modified setting in this case. (7) Press the ESC key to go back to the ID Mode from the Utility Menu.

  • Page 30: 5． Brightness

    The Brightness setting in the Utility menu defines the intensity of the backlight brightness for the LCD panel Ten levels of brightness intensity are available at the OFI-BI in order to get good visibility of the LCD panel in any environmental condition.

  • Page 31: 6． Dimmer Time

    Press the ESC key instead of ENT(⏎) key if you would like to cancel the input and quit from the menu. The OFI-BI does not save the modified setting in this case. (7) Press the ESC key to go back to the ID Mode from the Utility Menu.

  • Page 32: 7． Error Displays

    OFI-BI power off and retry Zeroing. If this does not address the problem, consult your distributor. Failed reading from The OFI-BI may be out of order. Consult your the internal memory distributor. Failed writing to the The OFI-BI may be out of order. Consult your internal memory distributor.

  • Page 33: Before Storing In The Case

    External materials may damage the optical detector while the trigger is released. When you put the OFI-BI into the storage case, make sure to turn on the Trigger Hold function and pull the trigger until it latches in order to protect the optical detector. Since pulling the trigger turns on the power, make sure to turn off the power after you pull the trigger.

  • Page 34: Specifications

    Specifications Item Specification Optical Specification (Optical Fiber Identifier) ・0.25mm SM Fiber and SM ribbon fiber(Up to 12 ribbon fiber) Applicable Fiber ・1.1mm/1.5mm/1.7mm/2.0mm/3.0mm SM jacketed fiber Wavelength 850 to 1700nm Range Detectable Light CW, Traffic or 270Hz/1kHz/2kHz Modulated Signal (square wave 50±10% duty cycle) light (*1) Optical ・GE-PON downstream( -7.5 to +9.0dBm) Characteristic...
  • Page 35 Specifications Item Specification Environmental Specification Operation -10 to +50 degrees C Temperature Operation 0 to 95% (non-condensing) Humidity Storage -20 to +60 degrees C Temperature Storage 0 to 95% (non-condensing) Humidity Others Battery life Approximately 8 Hours (*4) Power 2pcs AA Batteries (Volatage:1.2 to 1.5 V) 50(W)×115(H) ×212(D) mm (*5) Size Weight...
